2001 Yamaha ET410TRF 8BY8 Oil Pump Diagram

← All diagrams

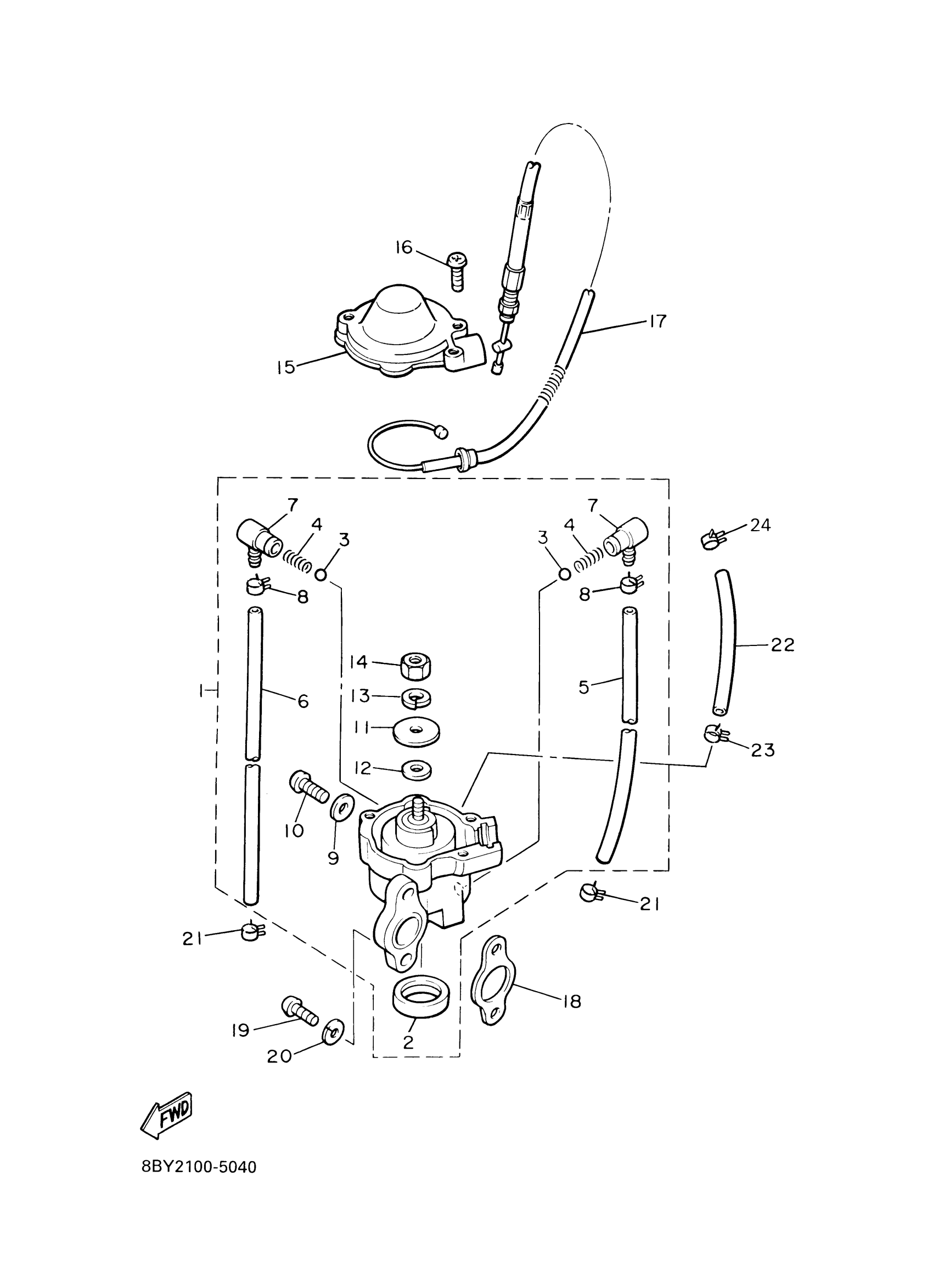

Find the part on the Oil Pump diagram for your 2001 Yamaha ET410TRF 8BY8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha ET410TRF 8BY8 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

89X-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1
Out of stock

4

SPRING (278-13169-00)

90501-02018-00

1
Out of stock

5

HOSE

91A30-03052-00

1
Out of stock

6

HOSE

91A30-03052-00

1
Out of stock

7

NOZZLE

353-13552-01-00

1
Out of stock

8

CLIP (2A6)

90468-02025-00

1
Out of stock

9

GASKET 137131870000

90430-04004-00

1
Out of stock

10

SCREW, BIND

98980-04008-00

1
Out of stock

11

PLATE, ADJUSTING

137-13138-01-00

—
Out of stock

12

SHIM,PLUNGER

137-13137-00-03

1
Out of stock

12

SHIM,PLUNGER

137-13137-00-05

1
Out of stock

12

SHIM,PLUNGER

137-13137-00-10

1
Out of stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

15

COVER, ADJUST PULLEY

8A5-13146-01-00

—
Out of stock

16

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

17

PUMP CABLE ASSY

85L-26320-00-00

1
Out of stock

18

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

19

SCREW, PAN HEAD(JJ6)

98507-05016-00

—
Out of stock

20

WASHER(3SX)

92907-05100-00

—
Out of stock

21

CLIP (2A6)

90468-02025-00

1
Out of stock

22

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

—
Out of stock

23

CLIP (8A1)

90467-09026-00

—
Out of stock

24

CLIP (8L2)

90467-08017-00

—
Out of stock
