1982 Yamaha ET340TF Primary Sheave ET340TF - TG Diagram

← All diagrams

Find the part on the Primary Sheave ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

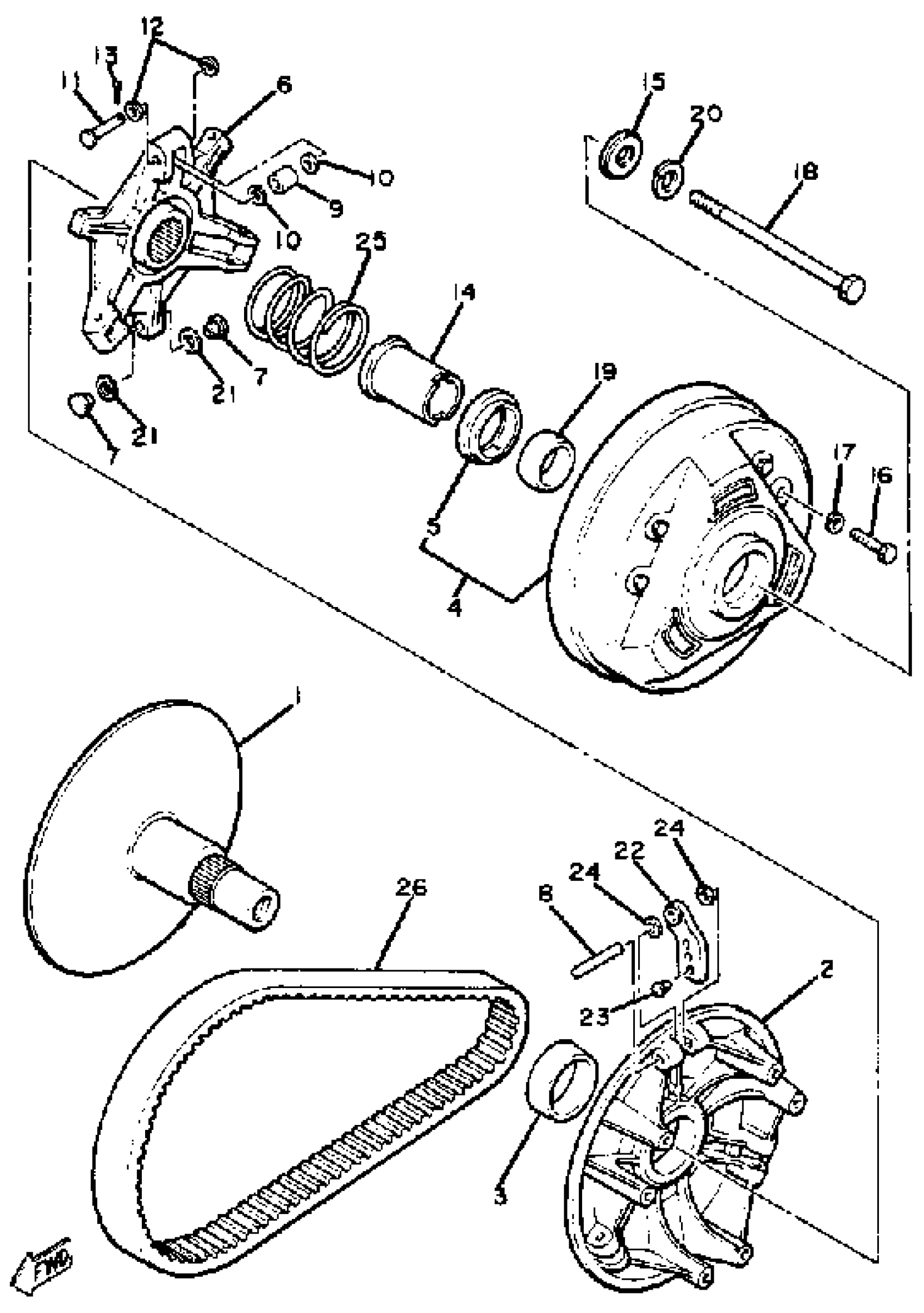

1982 Yamaha ET340TF Primary Sheave ET340TF - TG Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI. FIXED SHEAVE

8H8-W1761-00-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-41018-00

1
Out of stock

4

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

5

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

6

SPIDER

8A7-17627-00-00

1
Out of stock

7

SLIDER

8F2-17653-00-00

1

$10.03

In stock

8

PIN, DOWEL (8V8)

93607-44190-00

1
Out of stock

9

COLLAR (8A7)

90387-06560-00

1

$6.32

In stock

10

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

11

PIN, W/HOLE (8G6)

90240-06062-00

1

$8.97

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

COLLAR

90387-28721-00

1
Out of stock

15

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT

90101-13406-00

1
Out of stock

19

. BUSH, SPEC''L SHAPE

90389-34019-00

1
Out of stock

20

WASHER, SPRING

90204-13010-00

1
Out of stock

21

WASHER, PLATE (8K2)

90201-090A4-00

—

$1.05

In stock

22

WEIGHT 1

8G8-17632-00-00

—

$24.00

In stock

23

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

24

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

25

SPRING, COMPRESSION

90501-50500-00

1
Out of stock

26

V-BELT

820-17641-01-00

1

$33.66

In stock

26

CLUTCH TUNE UP KIT

(8G5-00000-50-00)

1
Out of stock

26

PRIMARY SHEAVE ASSEMBLY

8G6-17601-09-00

1
Out of stock

26

CLUTCH WEIGHT KIT

(8G8-17000-10-00)

1
Out of stock
