INTAKE ET340TF - TG

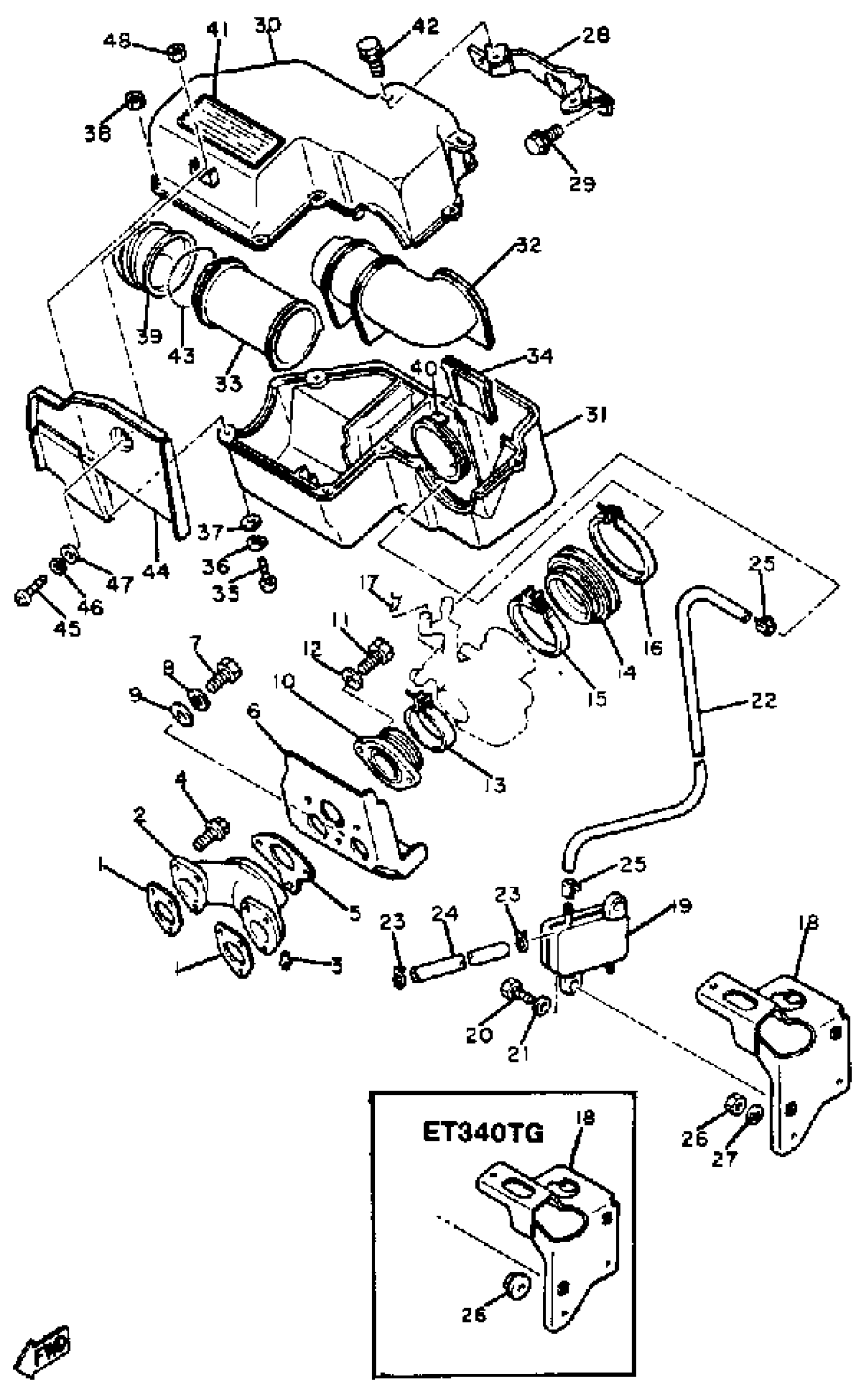

1982 Yamaha ET340TF Intake ET340TF - TG Diagram
Find the part on the Intake ET340TF - TG diagram for your 1982 Yamaha ET340TF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
JOINT, CARBURETOR
8G8-13565-00-00
3
NOZZLE
824-13552-00-00
5
GASKET, MANIFOLD
8Y2-13556-01-00
6
GASKET
8H5-13567-00-00
9
WASHER, PLATE
90209-08150-00
15
CLAMP, HOSE (29L)
90460-68230-00
17
CLAMP, THROTTLE
822-41222-00-00
18
BRACKET, FUEL PUMP
8G8-24491-00-00
19
FUEL PUMP ASY
8J6-24410-01-00
28
STAY 1
8G8-14498-00-00
30
SILENCER, INTAKE 1
8G8-14431-00-00
32
PIPE
8G8-14419-00-00
33
PIPE
8G8-14465-00-00
34
PLATE
8G8-14477-00-00
36
YBS67-5 WASHER, SPRING
92990-05100-00
37
WASHER, PLAIN (646)
92990-05600-00
39
PIPE, SUCTION 1
8N5-14423-00-00
40
PIPE
8G8-14466-01-00
41
LABEL, CAUTION
8A5-14488-00-00
44
PLATE
8N5-14477-00-00
47
WASHER(1RW)
92907-05600-00
