1982 Yamaha ET340F OIL Pump Diagram

← All diagrams

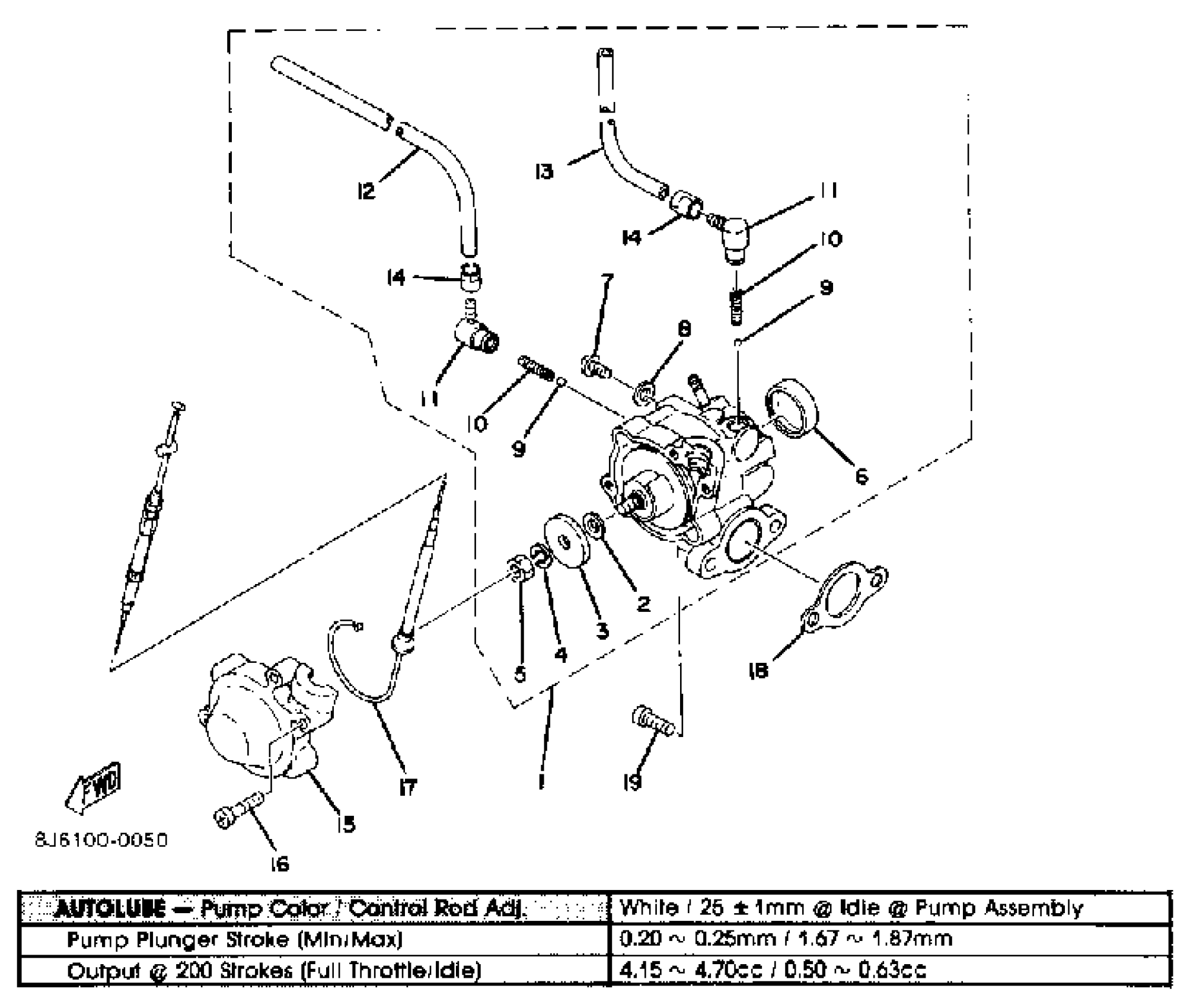

Find the part on the OIL Pump diagram for your 1982 Yamaha ET340F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha ET340F OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

8G8-13101-00-00

1
Out of stock

2

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

2

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

2

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

3

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

6

. PLUG

90338-21100-00

1
Out of stock

7

SCREW, BIND

98980-04008-00

1

$3.26

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

BALL

93505-32002-00

1

$2.22

In stock

10

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

11

NOZZLE

353-13552-01-00

1
Out of stock

12

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

13

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

14

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

15

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

16

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

17

PUMP CABLE ASSEMBLY

8G8-26320-01-00

1
Out of stock

18

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

19

SCREW, PAN HEAD(3YL)

98580-05014-00

1

$6.99

In stock
