1982 Yamaha ET340F Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1982 Yamaha ET340F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

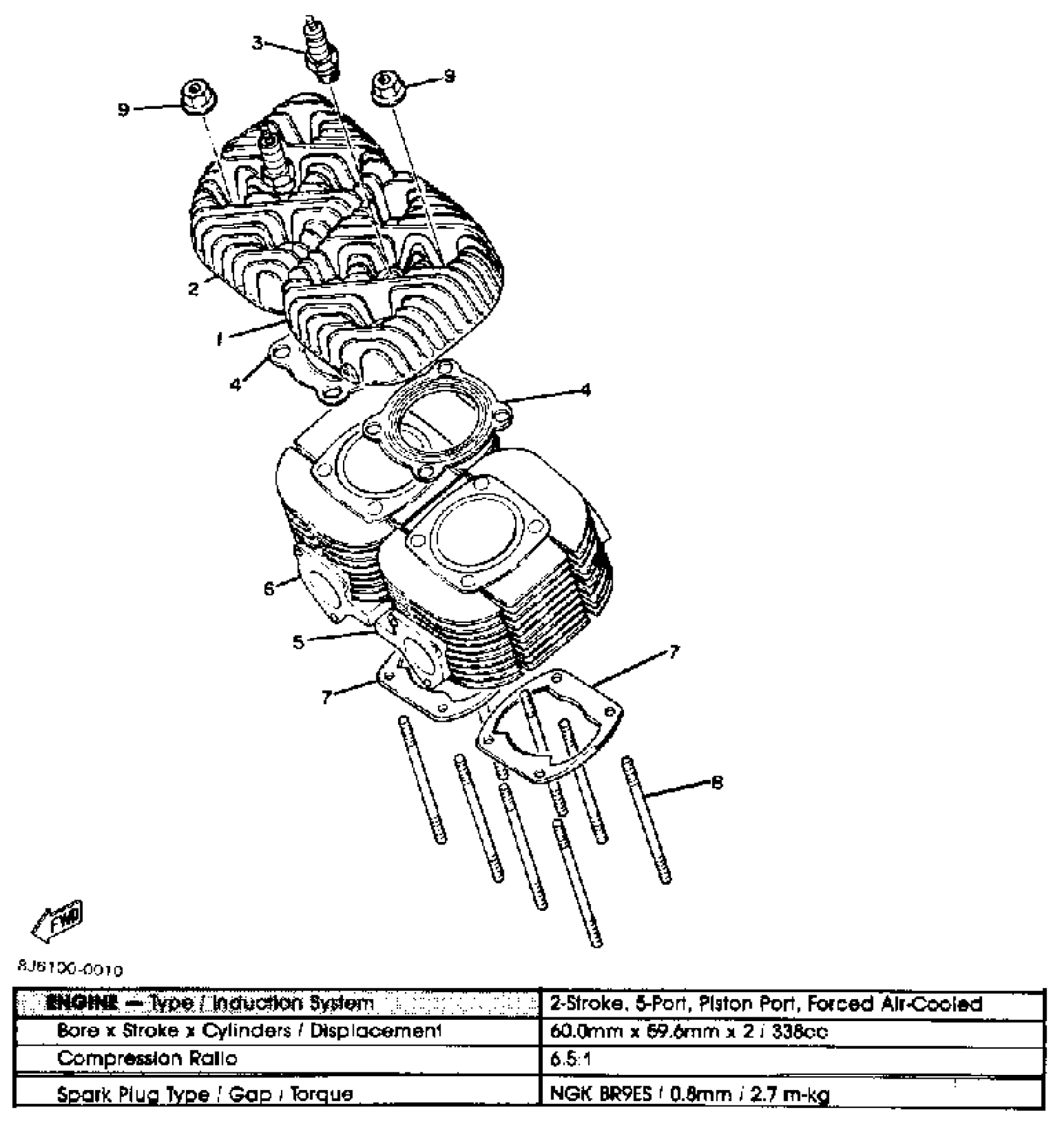

1982 Yamaha ET340F Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8G8-11111-00-00

1
Out of stock

2

HEAD, CYLINDER 2

8G8-11121-00-00

1
Out of stock

3

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

1
Out of stock

4

GASKET, CYLINDER HEAD 1

8G8-11181-01-00

1

$18.12

In stock

5

CYLINDER 1

8G8-11311-00-00

1
Out of stock

6

CYLINDER 2

8G8-11321-00-00

1
Out of stock

7

GASKET, CYLINDER

846-11351-02-00

1

$4.74

In stock

8

BOLT, STUD

90116-08107-00

1
Out of stock

9

NUT, FLANGE

95704-08500-00

1
Out of stock
