1982 Yamaha ET340F Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1982 Yamaha ET340F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

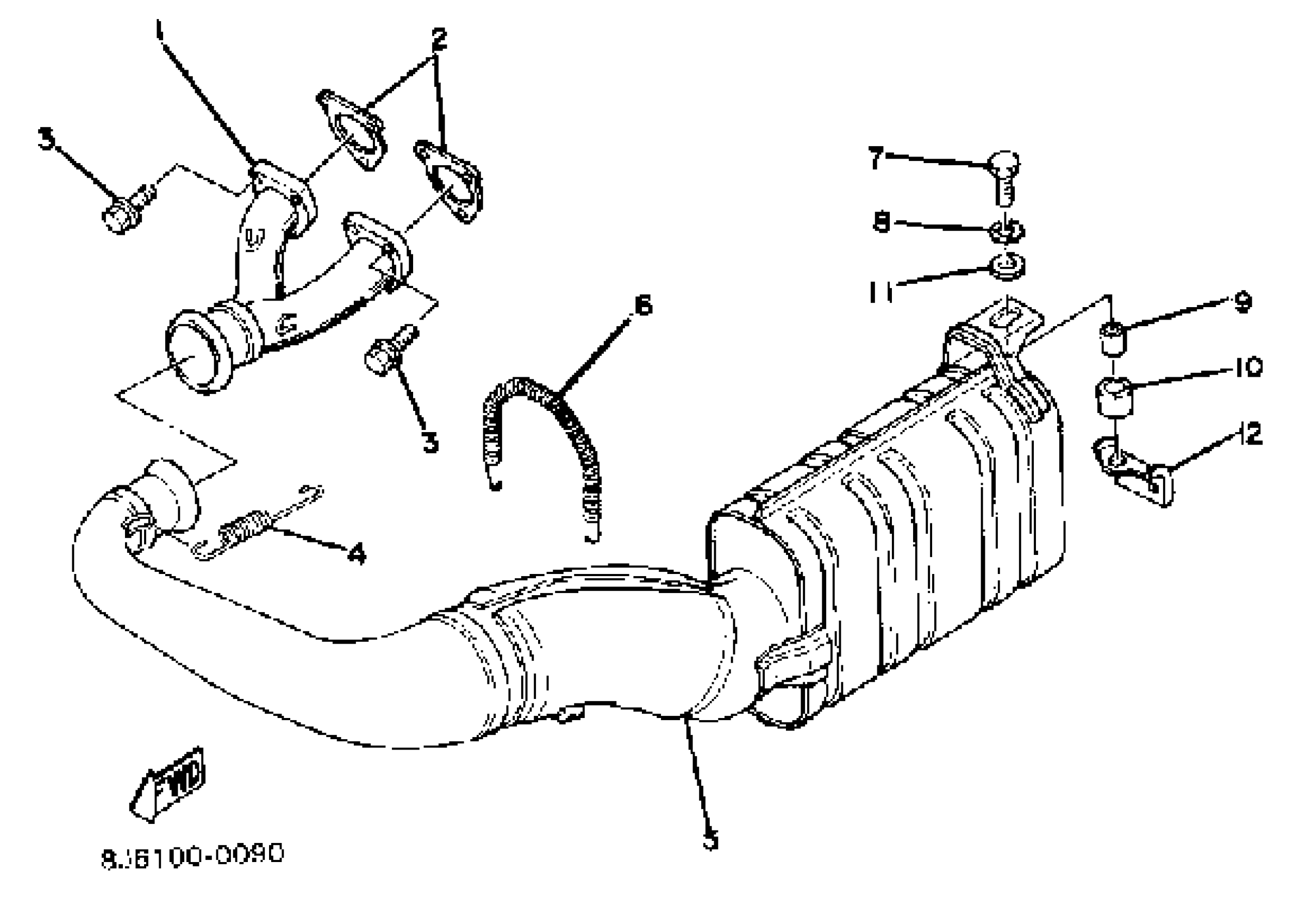

1982 Yamaha ET340F Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSY 1

8G8-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

8G8-14613-01-00

1

$4.38

In stock

3

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

4

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

5

MUFFLER ASSEMBLY L

8M8-14710-00-00

1
Out of stock

6

SPRING, TENSION

90506-16130-00

1
Out of stock

7

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

PIN, DOWEL(J38)

91812-16001-00

1

$5.17

In stock

10

DAMPER, MUFFLER

8G8-14747-00-00

1
Out of stock

11

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

12

STAY, MUFFLER 1

8G8-14771-00-00

1
Out of stock
