1979 Yamaha ET340EC Track Drive Diagram

← All diagrams

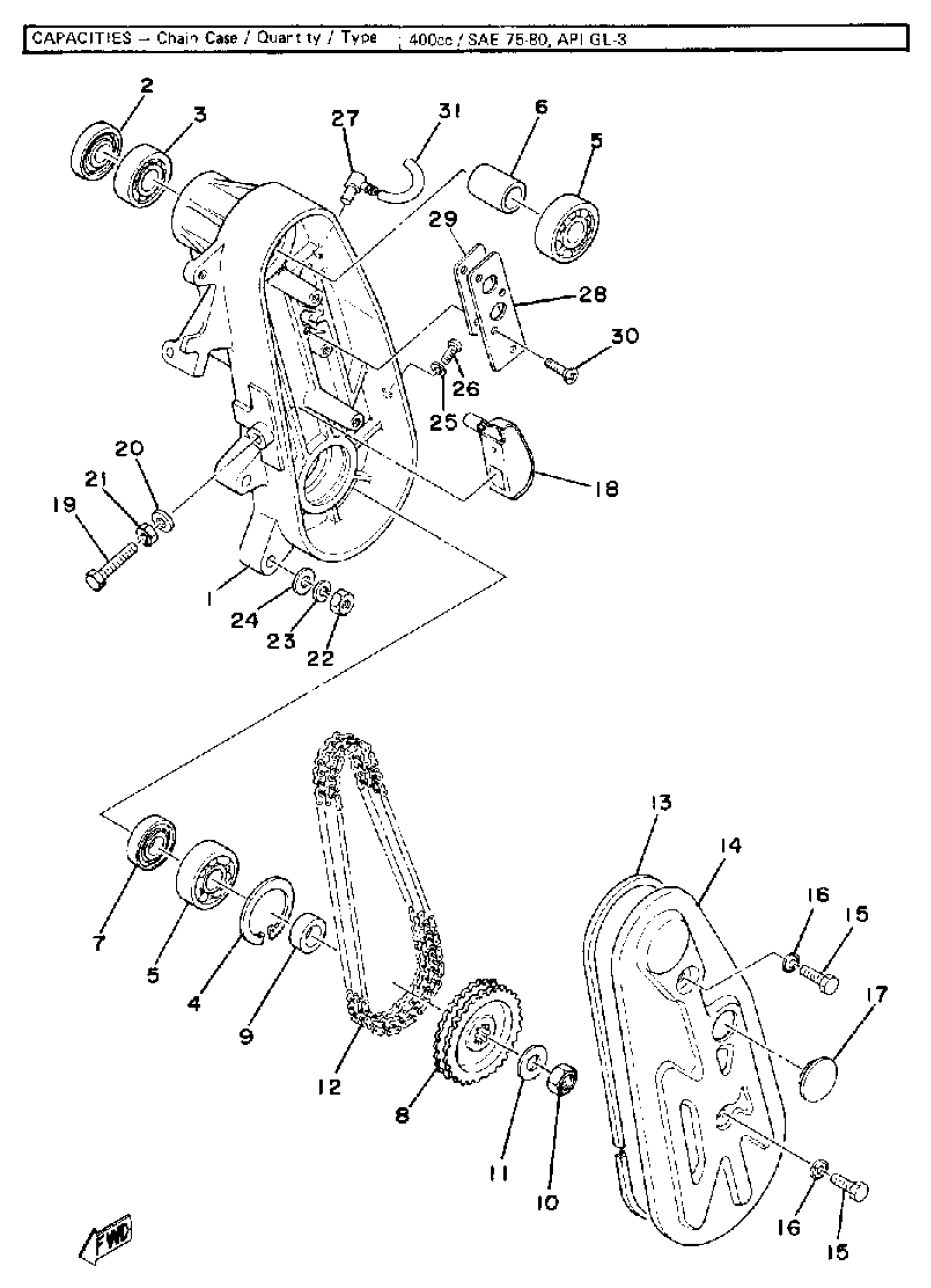

Find the part on the Track Drive diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET340EC Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8F3-47541-00-00

1
Out of stock

2

OIL SEAL (30X47X7-810)

93102-30083-00

1

$11.08

In stock

3

BEARING(1GJ)

93306-20458-00

1

$36.19

In stock

4

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

5

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

6

COLLAR

90387-20580-00

1
Out of stock

7

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

8

SPROCKET, CHN DRVN

8G8-47548-10-00

1
Out of stock

8

SPROCKET, CHN DRVN

8G8-47548-20-00

1
Out of stock

8

SPROCKET, CHN DRVN

8G8-47548-30-00

1
Out of stock

9

COLLAR

90387-20155-00

1
Out of stock

10

NUT, U

95617-10100-00

1
Out of stock

11

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

12

CHAIN 60L

94880-01060-00

1
Out of stock

13

RING, HOUSING (97302-08020)

8F3-47558-00-00

1
Out of stock

14

CAP, HOUSING

8F3-47543-00-00

1
Out of stock

15

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

16

WASHER (821)

90210-08002-00

—

$5.68

In stock

17

CAP

148-22315-00-00

—

$6.40

In stock

18

TENSIONER

8G8-47611-00-00

—
Out of stock

19

BOLT, HEXAGON (8F3)

90101-10357-00

—

$6.52

In stock

20

WASHER SEAL 256111730200

90210-10004-00

—

$4.11

In stock

21

NUT (682)

95380-10700-00

1

$5.78

In stock

22

NUT(6L2)

95333-08600-00

—

$3.20

In stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

GASKET 838153840000

90430-06016-00

—

$6.18

In stock

26

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

27

BREATHER

583-15371-00-00

—
Out of stock

28

PLATE

8G8-47591-00-00

1
Out of stock

29

GASKET

85T-47592-00-00

1
Out of stock

30

SCREW, FLAT

98707-05016-00

—

$5.60

In stock

31

HOSE (L420)

90445-092K1-00

—

$10.63

In stock
