1979 Yamaha ET340EC Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 1979 Yamaha ET340EC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

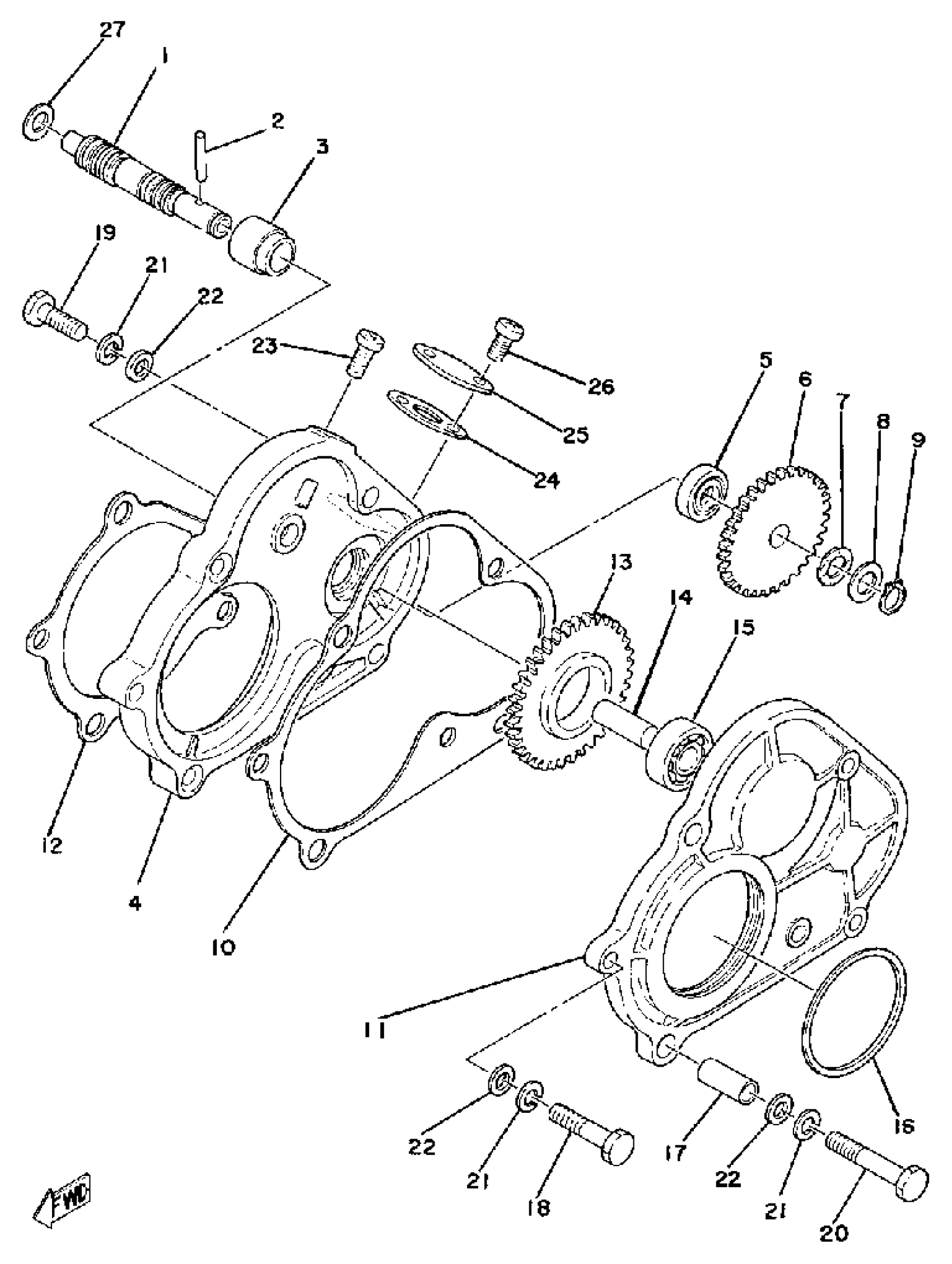

1979 Yamaha ET340EC Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

821-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

4

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

5

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GASKET 2

8G8-15466-03-00

1
Out of stock

11

COVER, OIL PUMP R

8G8-15426-00-00

1
Out of stock

12

GASKET,O/PPCUR1

8G8-15456-03-00

1
Out of stock

13

GEAR, IDLE

8G8-13179-00-00

1
Out of stock

14

SHAFT, IDLE GEAR

8G8-13342-00-00

1
Out of stock

15

—

$29.35

In stock

16

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

17

PIN, DOWEL

91810-18025-00

1
Out of stock

18

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

19

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

20

BOLT (682)

97095-06040-00

—

$2.36

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

24

GASKET

821-17818-02-00

—

$5.66

In stock

25

CAP, HOUSING

824-17819-00-00

1
Out of stock

26

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

27

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
