1978 Yamaha ET340B SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

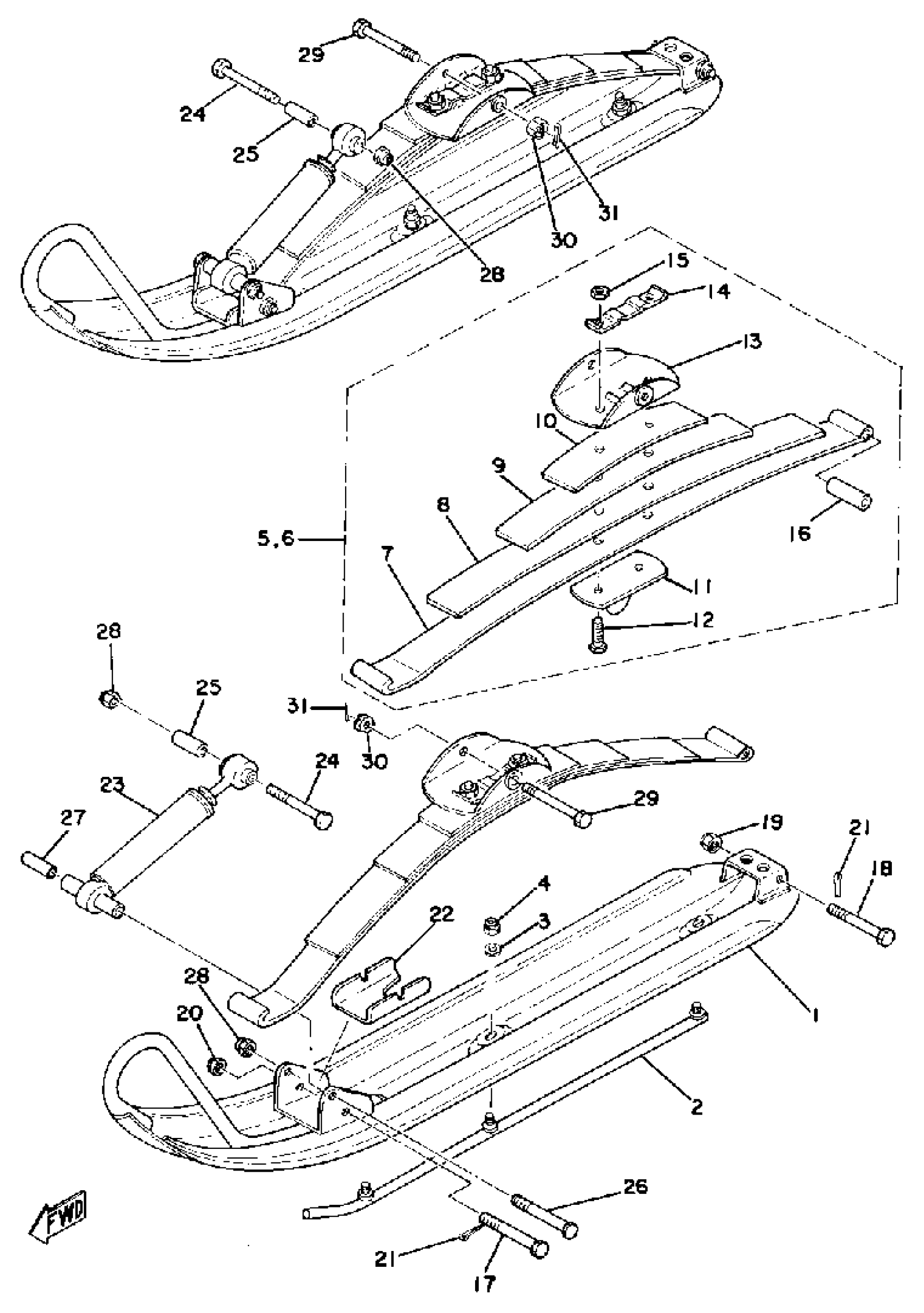

1978 Yamaha ET340B SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP

8F3-23710-01-00

1

$197.99

In stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

WASHER(6TC)

92907-08200-00

1
Out of stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

SPRING ASSY 1

8M8-23760-10-00

1
Out of stock

6

SPRING ASSY 2

8M8-23770-10-00

1
Out of stock

7

LEAF 1

888-23761-10-00

1
Out of stock

8

LEAF 2

865-23762-10-00

1
Out of stock

9

LEAF 3

888-23763-00-00

1
Out of stock

10

. LEAF 5

865-23771-00-00

1
Out of stock

11

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

12

. BOLT

90109-105E1-00

1
Out of stock

13

SADDLE

8G6-23766-00-00

—

$32.37

In stock

14

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

15

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

16

COLLAR

90387-08478-00

1
Out of stock

17

—

$8.14

In stock

18

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

19

NUT, NYLON

95717-08300-00

1

$2.57

In stock

20

NUT, U

95617-08100-00

—

$6.78

In stock

21

PIN, COTTER

91490-20025-00

—

$1.31

In stock

22

PLATE, WEAR

8F3-23735-00-00

—

$17.98

In stock

23

CUSHION ASSY

8J6-23350-00-00

—

$145.14

In stock

24

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

25

COLLAR (878)

90387-08262-00

—

$9.02

In stock

26

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

27

COLLAR (864)

90387-08224-00

—

$7.52

In stock

28

NUT, NYLON

95717-08300-00

1

$2.57

In stock

29

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

30

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock
