1978 Yamaha ET340B C - D - I - Magneto Diagram

← All diagrams

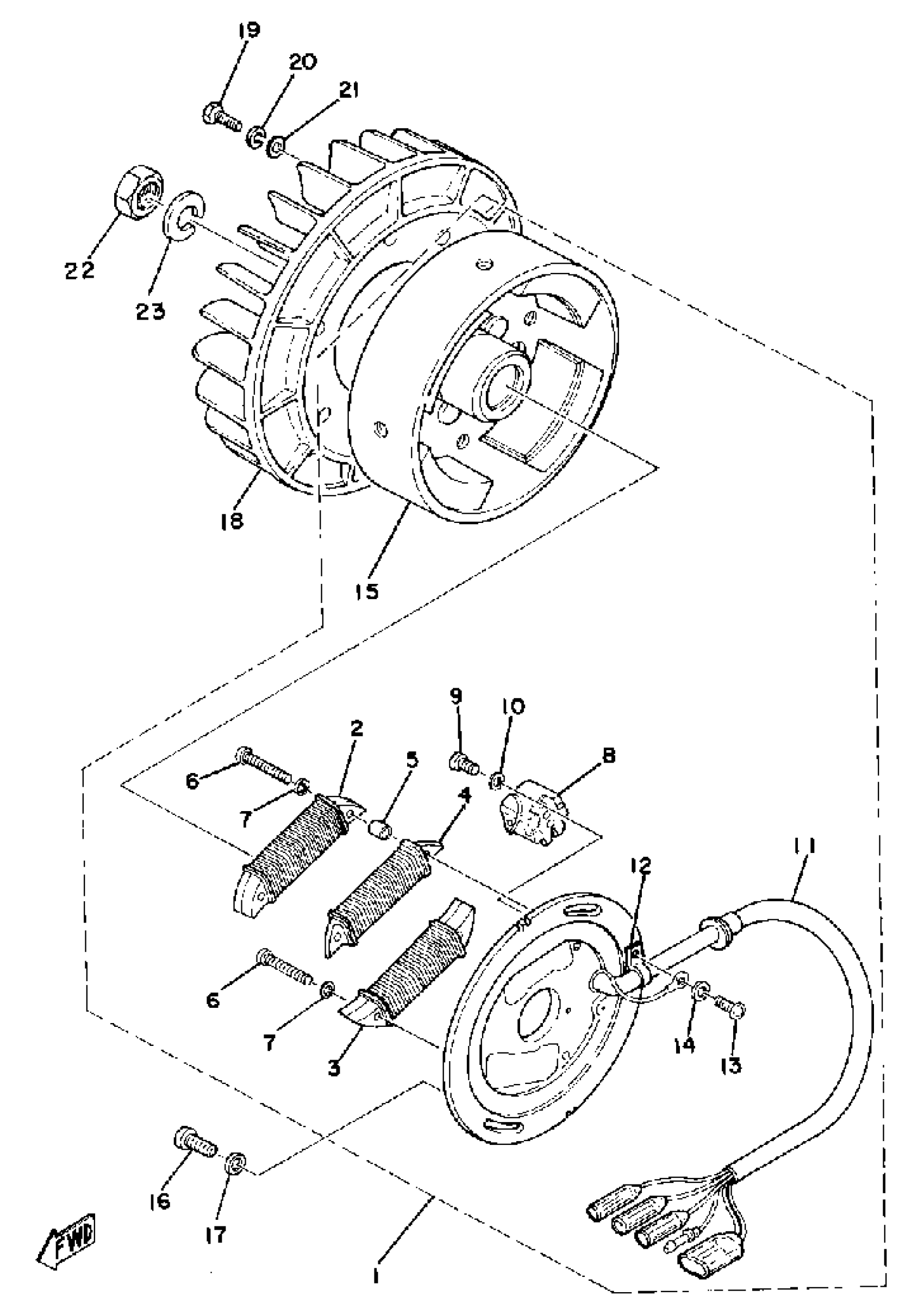

Find the part on the C - D - I - Magneto diagram for your 1978 Yamaha ET340B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha ET340B C - D - I - Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(8G8-85500-20-00)

1
Out of stock

2

. COIL SOURCE 1

8G8-85511-20-00

1
Out of stock

3

. COIL, LIGHTING 1

8G8-85513-20-00

1
Out of stock

4

COIL, CHARGE

(8G8-85541-20-00)

1
Out of stock

5

. SPACER

8G8-85519-20-00

1
Out of stock

6

SCREW, PAN

98507-05035-00

1

$6.69

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

. COIL, PULSER (8G8-85580-20)

8H4-85580-20-00

1
Out of stock

9

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

. LEAD WIRE ASSEMBLY

8G8-85515-20-00

1
Out of stock

12

CLAMP, LEAD

104-81328-20-00

1

$6.31

In stock

13

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

ROTOR ASSEMBLY

(8G8-85550-20-00)

1
Out of stock

16

SCREW, PAN

98507-06014-00

—

$6.18

In stock

17

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

18

FAN

8G8-12611-01-00

—

$81.95

In stock

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

NUT

90170-16425-00

—
Out of stock

23

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
