1979 Yamaha ET300C Oil Tank Diagram

← All diagrams

Find the part on the Oil Tank diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

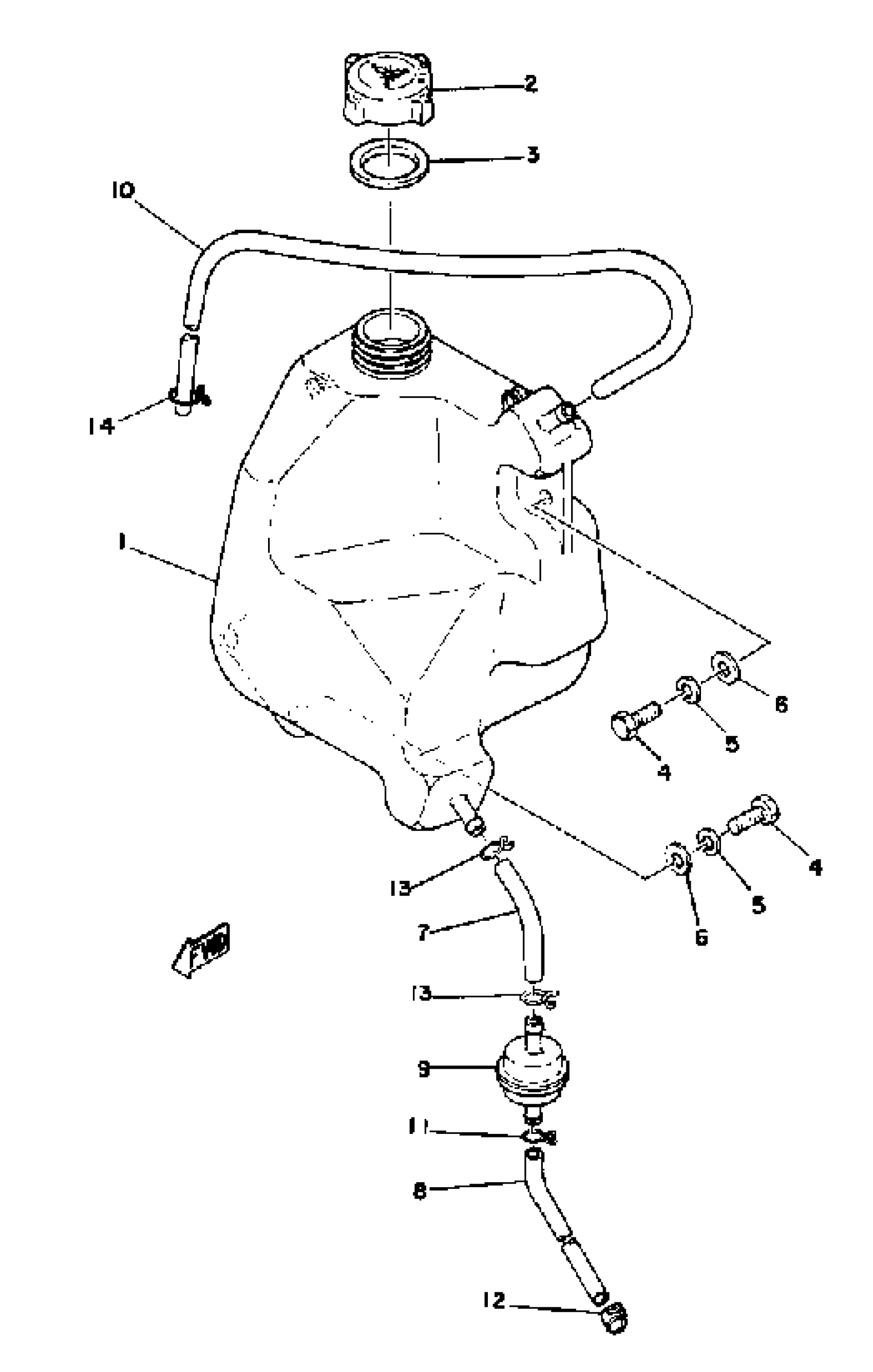

1979 Yamaha ET300C Oil Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

8G8-21751-00-00

1
Out of stock

2

BODY, CAP

8LU-21771-00-00

1
Out of stock

3

GASKET, TANK (867)

90430-31003-00

1
Out of stock

4

BOLT, HEXAGON

97013-08020-00

1
Out of stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

6

WASHER, PLAIN

92990-08200-00

1
Out of stock

7

HOSE

91A30-07036-00

1
Out of stock

8

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

1
Out of stock

9

HOUSING STRAINER ASSY

8G8-13410-00-00

1
Out of stock

10

HOSE

90446-09015-00

1
Out of stock

11

CLIP (8L2)

90467-08017-00

1
Out of stock

12

CLIP (8A1)

90467-09026-00

1
Out of stock

13

CLIP (8J7)

90467-11009-00

1
Out of stock

14

CLAMP

90464-25267-00

1
Out of stock
