1979 Yamaha ET300C Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

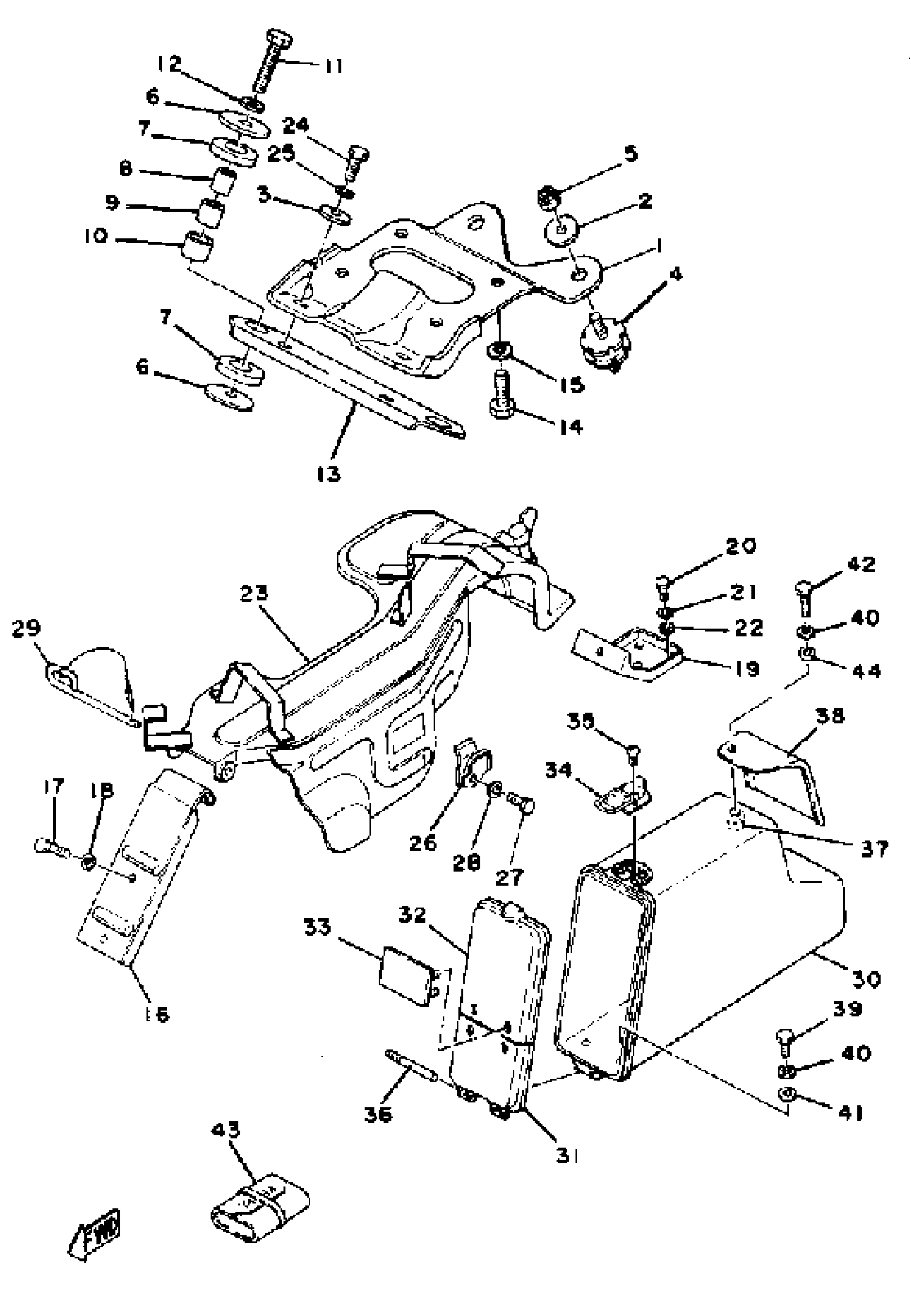

1979 Yamaha ET300C Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8G8-21411-00-00

1
Out of stock

2

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

3

WASHER (583)

90201-10639-00

1
Out of stock

4

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

5

NUT, NYLON

95707-10300-00

1

$6.68

In stock

6

WASHER (888)

90201-10151-00

—

$3.94

In stock

7

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

8

COLLAR

90387-10514-00

1
Out of stock

9

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

10

COLLAR

90387-21515-00

1
Out of stock

11

BOLT,HEXAGON(676)

97013-10050-00

1
Out of stock

12

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

13

BRACKET, ENGINE 2

8G8-21419-00-00

1
Out of stock

14

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

BRACKET 1

(8G5-77315-00-00)

1
Out of stock

17

BOLT(62E)

97013-08012-00

—

$2.48

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

BRACKET 2

(8F3-77316-01-00)

1
Out of stock

20

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

GUARD, DRIVE

8H9-77311-00-00

1
Out of stock

24

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

25

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

26

PROTECTOR, DRIVE

8F3-77323-00-00

1
Out of stock

27

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

SHAFT

8F3-77327-00-00

1
Out of stock

30

LUGGAGE BOX

(8G8-77391-00-00)

1
Out of stock

31

COVER, LUGGAGE BOX

(8H5-77392-00-00)

1
Out of stock

32

COVER, LUGGE BOX 2

(8H5-77377-00-00)

1
Out of stock

33

HINGE, LUGGAGE BOX

(8H5-77395-00-00)

1
Out of stock

34

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

35

SCREW, OVAL HEAD

(98602-03008-00)

1
Out of stock

36

PIN, SPEC''L SHAPE

(90249-03128-00)

1
Out of stock

37

NUT, SPEC''L SHAPE

(90179-06254-00)

1
Out of stock

38

STAY 1

(8G8-77397-00-00)

1
Out of stock

39

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

40

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

41

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

42

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

43

TOOL KIT

85L-28100-01-00

—

$70.22

In stock

44

WASHER, PLATE

90201-06M08-00

1
Out of stock
