1979 Yamaha ET300C Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

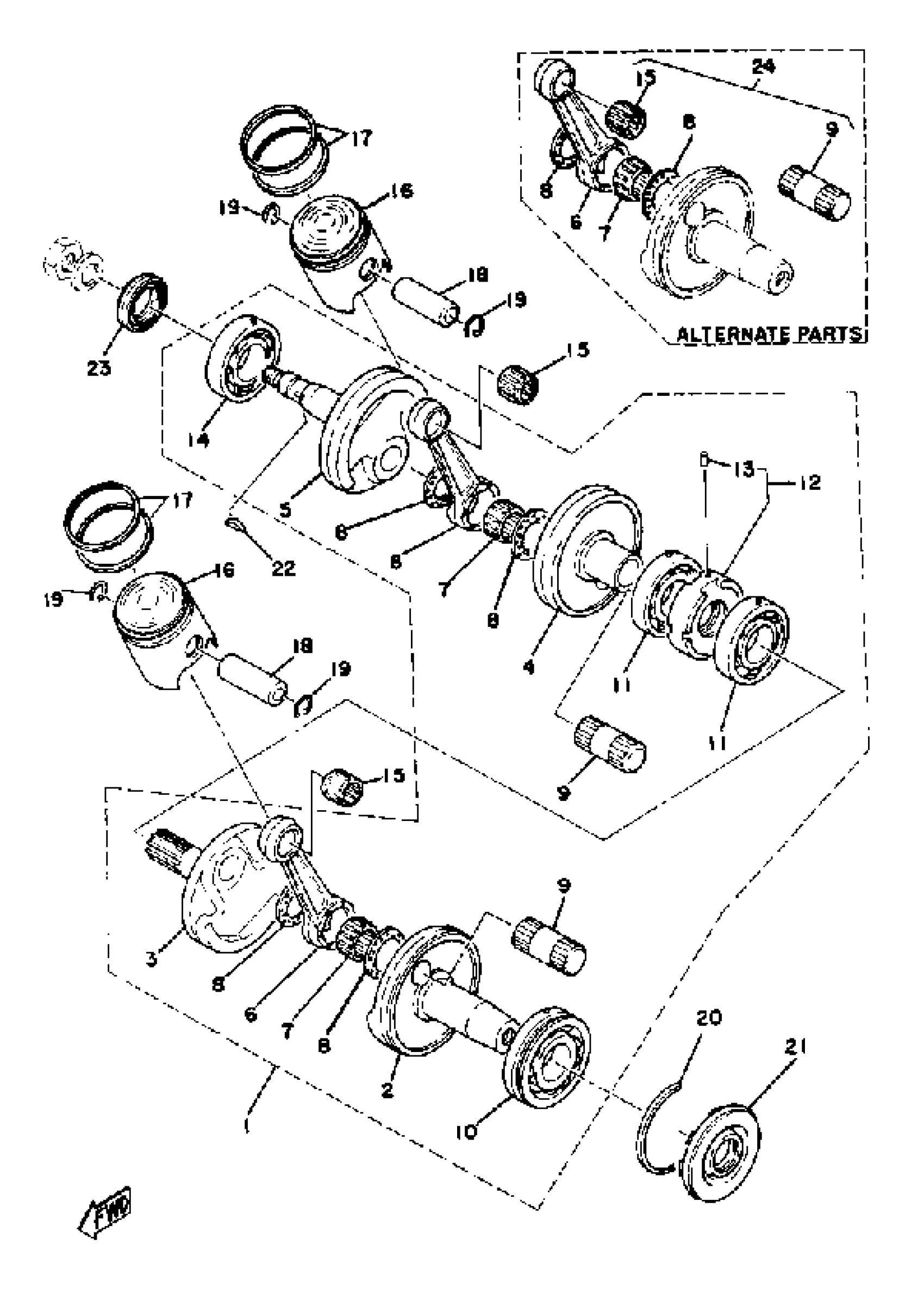

1979 Yamaha ET300C Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

8L3-11400-00-00

1
Out of stock

2

. CRANK 1

8G8-11412-01-00

1
Out of stock

3

CRANK 2

(8G8-11422-00-00)

1
Out of stock

4

CRANK 3

(8G8-11432-00-00)

1
Out of stock

5

. CRANK 4

8G8-11442-01-00

1
Out of stock

6

ROD, CONNECTING

34X-11651-00-00

—

$77.82

In stock

7

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

8

WASHER (29L)

90209-22248-00

—
Out of stock

9

PIN, CRANK

8G8-11681-00-00

1

$24.98

In stock

10

. BEARING (B6306)

93306-30618-00

1
Out of stock

11

BEARING (8G8)

93306-20617-00

1

$69.94

In stock

12

. SEAL, LABYRINTH 1

8G8-11515-01-00

1
Out of stock

13

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

14

BEARING

93306-30571-00

1
Out of stock

15

BEARING, NEEDLE (24X)

93310-216L2-00

1

$28.54

In stock

16

PISTON STD

8H9-11631-00-96

1
Out of stock

16

PISTON 1 O/S 0.25

8H9-11635-00-00

1
Out of stock

16

PISTON 2 O/S 0.50

(8H9-11636-00-00)

1
Out of stock

16

PISTON 3 O/S 0.75

(8H9-11637-00-00)

1
Out of stock

16

PISTON 4 O/S 1.00

(8H9-11638-00-00)

1
Out of stock

17

PISTON RINGSET 2ND

1V0-11601-20-00

1
Out of stock

17

PISTON RINGSET 4TH

(1V0-11601-40-00)

1
Out of stock

17

PISTON RINGSET STD (1V0-11601-00)

2A6-11601-00-00

1
Out of stock

17

PISTON RING 1ST

2A6-11601-10-00

1
Out of stock

17

PISTON RINGSET 3RD

(2A6-11601-30-00)

1
Out of stock

18

PIN, PISTON

137-11633-10-00

—

$21.92

In stock

19

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

20

CIRCLIP (1J7)

93440-72049-00

—
Out of stock

21

OIL SEAL, SD-TYPE

93102-30184-00

1
Out of stock

22

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

23

OIL SEAL (8G8)

93102-25183-00

—

$11.94

In stock
