1979 Yamaha ET300C Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

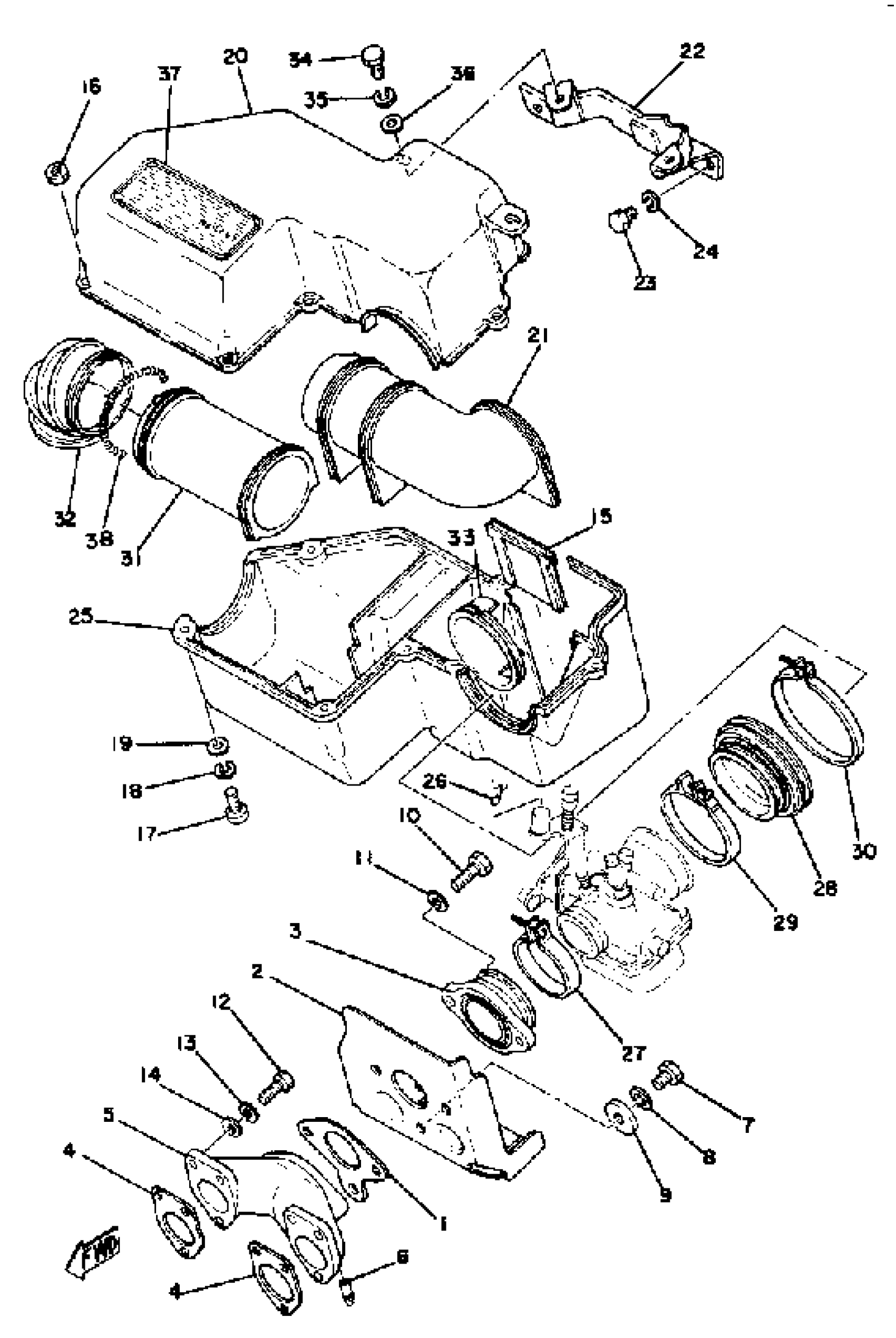

1979 Yamaha ET300C Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

8Y2-13556-01-00

1
Out of stock

2

GASKET

8H5-13567-00-00

1
Out of stock

3

MANIFOLD

8G8-13555-01-00

1

$106.31

In stock

4

GASKET

8Y2-13563-02-00

1

$7.88

In stock

5

JOINT, CARBURETOR

8G8-13565-00-00

1
Out of stock

6

NOZZLE

824-13552-00-00

1
Out of stock

7

BOLT(62E)

97013-08012-00

—

$2.48

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

WASHER, PLATE

90209-08150-00

1
Out of stock

10

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

PLATE

8G8-14477-00-00

1
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

20

SILENCER, INTAKE 1

8G8-14431-00-00

1
Out of stock

21

PIPE

8G8-14419-00-00

1
Out of stock

22

STAY 1

8G8-14498-00-00

1
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

SILENCER 2

8G8-14441-00-00

—

$70.65

In stock

26

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

27

BAND

86M-13575-00-00

—

$16.45

In stock

28

JOINT, AIR CLEANER

8G8-14453-01-00

—

$25.05

In stock

29

CLAMP, HOSE (29L)

90460-68230-00

—
Out of stock

30

CLAMP, HOSE(59V)

90460-85277-00

—

$12.62

In stock

31

PIPE

8G8-14465-00-00

1
Out of stock

32

PIPE, SUCTION 1

8N5-14423-00-00

1
Out of stock

33

PIPE

8G8-14466-01-00

1
Out of stock

34

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

35

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

36

WASHER, PLATE 8087752500

90201-07081-00

—

$7.09

In stock

37

LABEL, CAUTION

8A5-14488-00-00

1
Out of stock

38

—

$6.89

In stock
