1979 Yamaha ET300C Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

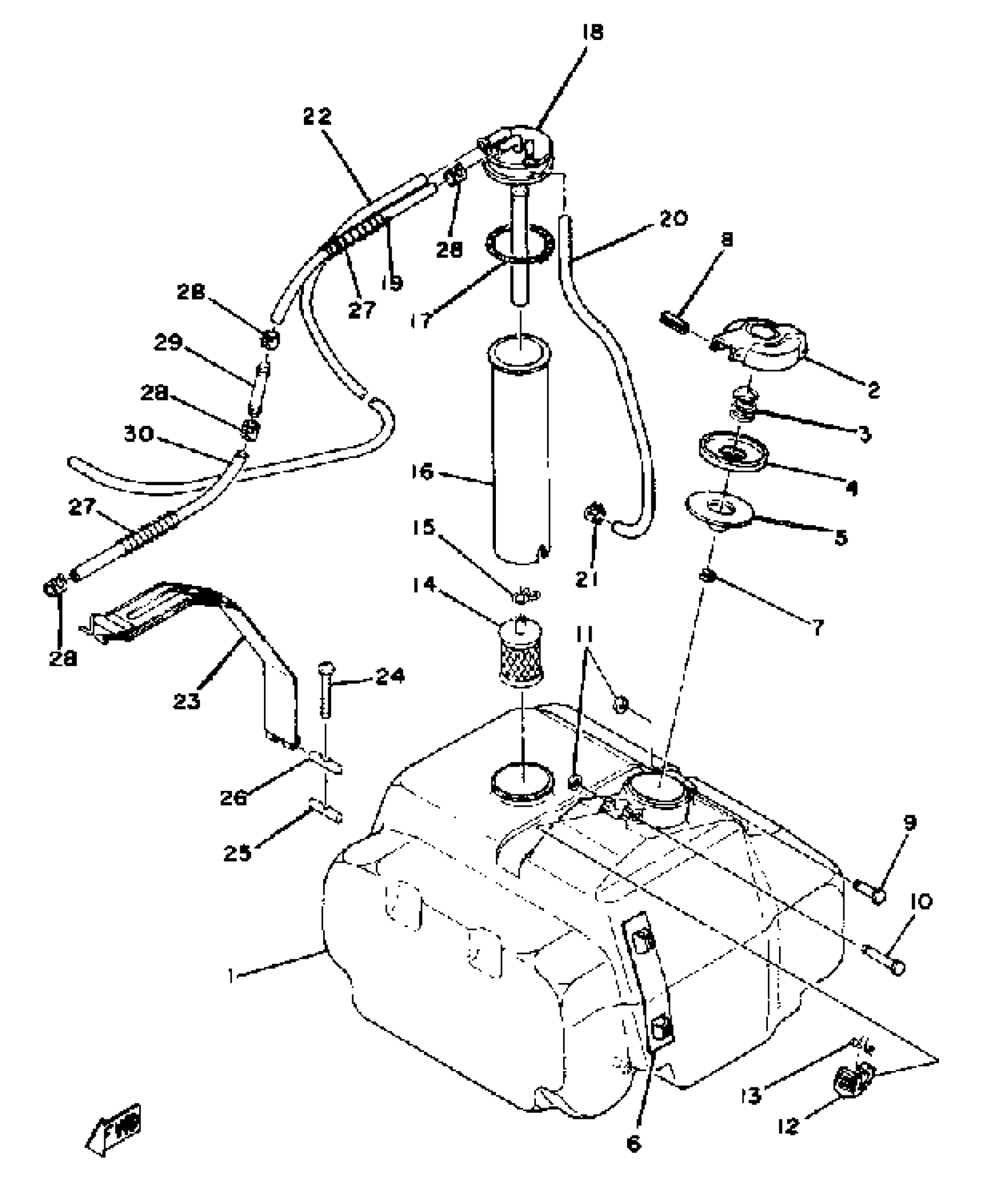

1979 Yamaha ET300C Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8G8-24111-00-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

DISK,CAP

813-24613-01-00

1

$18.71

In stock

5

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

6

GAUGE, FUEL

(8G8-24179-00-00)

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

12

HOOK

83M-24628-00-00

1

$19.68

In stock

13

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

14

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

15

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

16

PIPE, SUCTUIN

813-24336-00-00

—
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

18

PIPE, SUCTION 1

8G8-24335-00-00

1
Out of stock

19

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

—

$19.82

In stock

20

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—

$16.89

In stock

21

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

22

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

23

BAND, TNK FITTING 1

(883-24173-00-00)

1
Out of stock

24

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

25

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

26

CLAMP

806-24135-00-00

—

$3.20

In stock

27

PROTECTOR, PIPE

8F3-24326-00-00

1
Out of stock

28

CLIP

90467-11028-00

1

$5.14

In stock

29

PIPE, JOINT 4

878-24379-00-00

1

$6.46

In stock

30

HOSE

(90446-11027-00)

1
Out of stock
