1979 Yamaha ET300C Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1979 Yamaha ET300C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

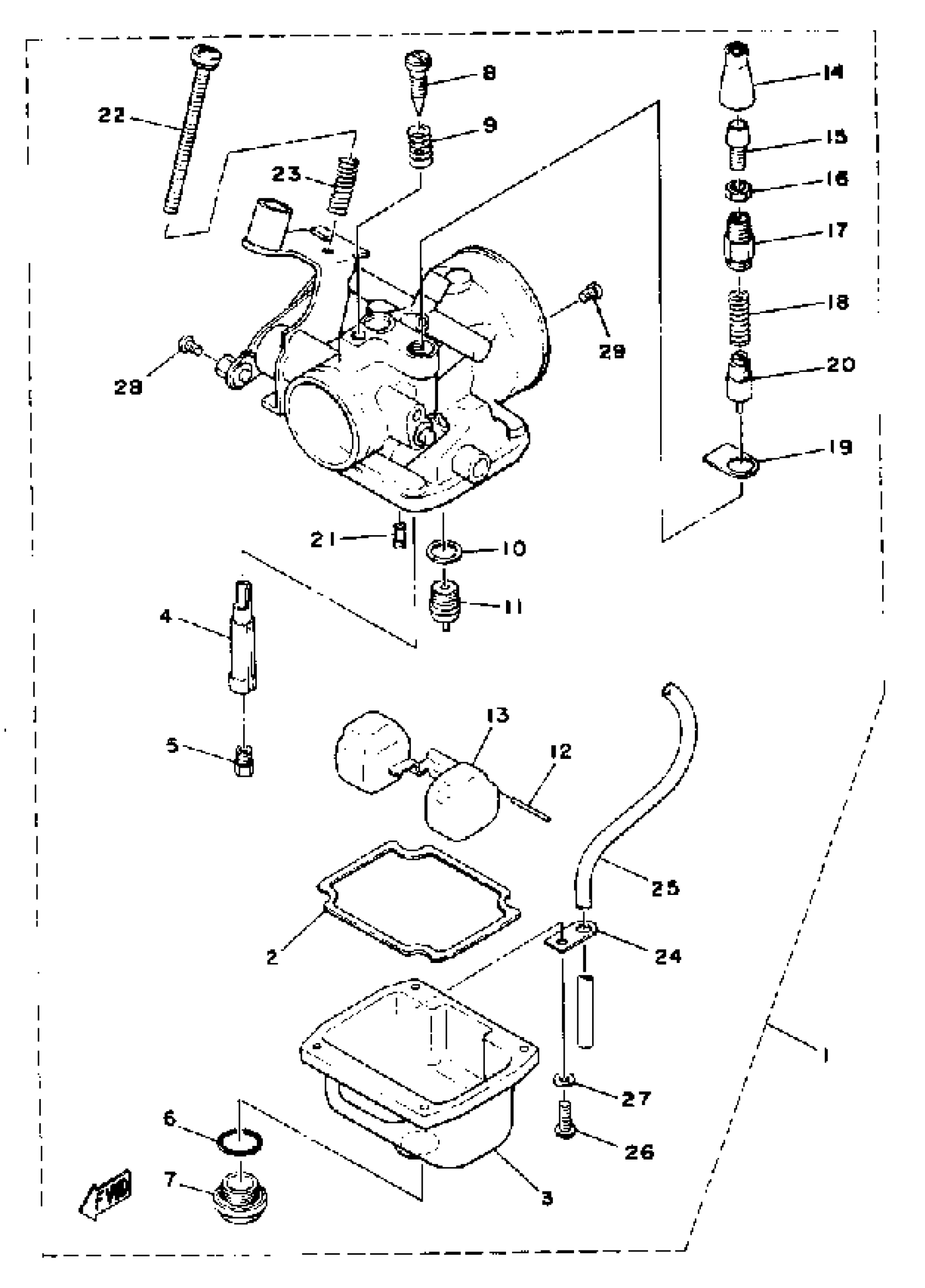

1979 Yamaha ET300C Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASY 1

8H9-14101-02-00

1
Out of stock

2

. GASKET, FLOAT CHMBR

8G8-14184-00-00

1
Out of stock

3

BODY, FLOAT CHMBR 1

(8H5-14181-00-00)

1
Out of stock

4

. NOZZLE, MAIN

8G8-14141-00-00

1
Out of stock

5

JET, MAIN #200

137-14143-40-A1

1
Out of stock

5

JET, MAIN #210

137-14143-42-A1

—

$10.62

In stock

5

JET, MAIN #220

137-14143-44-A1

1
Out of stock

5

JET, MAIN #240

137-14143-48-A1

1
Out of stock

6

O-RING (541)

558-14147-00-00

1
Out of stock

7

PLUG, SCREW

500-14115-00-00

1

$25.29

In stock

8

. SCREW, AIR ADJUSTING

8G8-14123-00-00

1
Out of stock

9

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

10

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock

11

VALVE SEAT ASSY

8H5-14190-15-00

1

$59.39

In stock

12

PIN, FLOAT

537-14186-00-00

1
Out of stock

13

. FLOAT

8H5-14185-00-00

1
Out of stock

14

CAP

8A7-14169-00-00

—

$15.80

In stock

15

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

16

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

17

CAP, PLUNGER

8G8-14174-00-00

—

$23.77

In stock

18

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

19

. PLATE, STARTER LVR

8G8-14178-00-00

1
Out of stock

20

PLUNGER, STARTER

8G8-14171-00-00

—

$26.92

In stock

21

JET, PILOT (# 90)

193-14142-90-A1

—

$11.08

In stock

22

SCREW, PAN HEAD

98580-05550-00

1

$3.03

In stock

23

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

24

. PLATE

313-14146-00-00

1
Out of stock

25

HOSE

89A-14987-00-00

—

$12.62

In stock

26

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

28

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

29

JET, AIR (#1.0)

239-14172-10-00

—

$9.08

In stock
