1979 Yamaha ET250C Shroud ET250C Diagram

← All diagrams

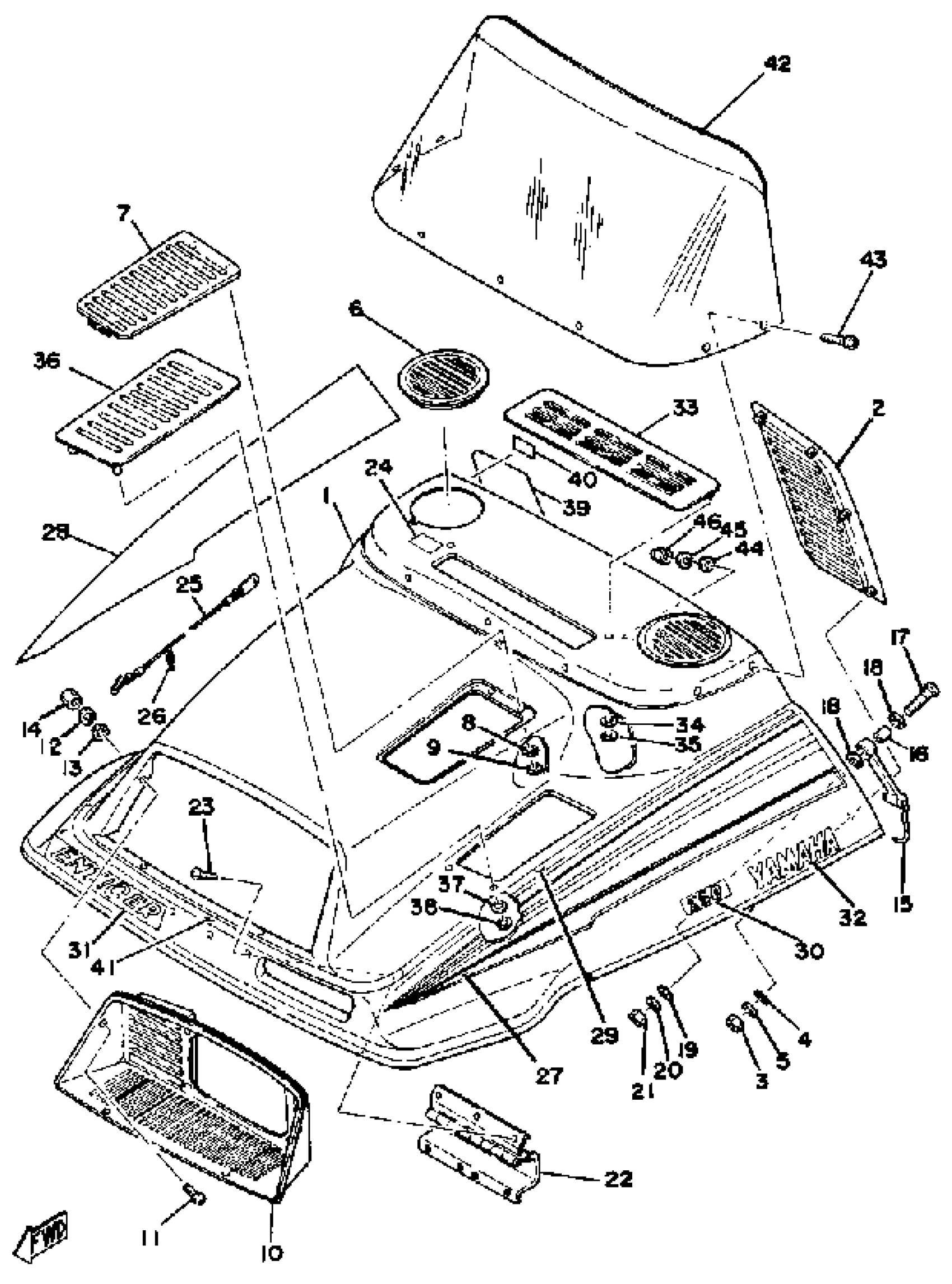

Find the part on the Shroud ET250C diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET250C Shroud ET250C Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8G5-77110-00-00)

1
Out of stock

2

LOUVER 1

8F3-77131-00-00

1
Out of stock

3

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

4

. WASHER, PLAIN

92990-05200-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

LOUVER 3

8F3-77133-00-00

1
Out of stock

7

LOUVER 4

8F3-77134-01-00

1
Out of stock

8

EMBLEM 3

838-77143-00-00

1
Out of stock

9

NUT 6504269100

90183-05003-00

1
Out of stock

10

BODY, HEADLIGHT

8F3-84311-00-00

1
Out of stock

11

SCREW, BINDING

98907-05020-00

1
Out of stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

WASHER, PLAIN (3GDF)

90201-051K1-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

15

LATCH ASSEMBLY

8G5-77170-00-00

1
Out of stock

16

SPACER

90560-07007-00

—
Out of stock

17

SCREW, BIND(J39)

98980-06030-00

—
Out of stock

18

WASHER, PLATE

90201-06380-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

20

WASHER, SPRING

92995-06100-00

1
Out of stock

21

NUT, HEXAGON

95380-06600-00

1
Out of stock

22

HINGE ASSEMBLY

8F3-77140-00-00

1
Out of stock

23

SCREW, BIND (705)

98980-06016-00

—
Out of stock

24

INDICATOR, COCK

8G5-24153-00-00

1
Out of stock

24

STOPPER, SHROUD

8H4-77118-00-00

1
Out of stock

26

CLAMP,ROD

838-77159-00-00

—
Out of stock

27

ORNAMENT 1

(8H4-77163-00-00)

1
Out of stock

28

ORNAMENT 2

(8H4-77164-00-00)

1
Out of stock

29

ORNAMENT 3

(8H4-77169-00-00)

1
Out of stock

30

ORNAMENT 4

8H4-77113-00-00

1
Out of stock

31

EMBLEM 6

(8H4-77356-00-00)

1
Out of stock

32

EMBLEM 7

(8G5-77357-00-00)

1
Out of stock

33

LOUVER 5

8J4-77109-00-00

1
Out of stock

34

EMBLEM 3

838-77143-00-00

1
Out of stock

35

NUT 6504269100

90183-05003-00

1
Out of stock

36

LOUVER 6

8J4-77108-00-00

1
Out of stock

37

NUT 6504269100

90183-05003-00

1
Out of stock

38

EMBLEM 3

838-77143-00-00

1
Out of stock

39

LABEL, WARNING

8F3-77458-00-00

1
Out of stock

40

LABEL, SAFETY

288-21659-00-00

1
Out of stock

41

STRIPE 1

(8H4-77281-00-00)

1
Out of stock

42

WINDSHIELD

8N5-77210-00-00

1
Out of stock

42

WINDSHIELD

8N5-77210-00-00

1
Out of stock

43

SCREW, BINDING(3XV)

90154-05059-00

—
Out of stock

44

WASHER, PLATE 8067717800

90201-05029-00

—
Out of stock

45

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

46

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock
