1979 Yamaha ET250C Crankshaft - Piston ET250D\E Diagram

← All diagrams

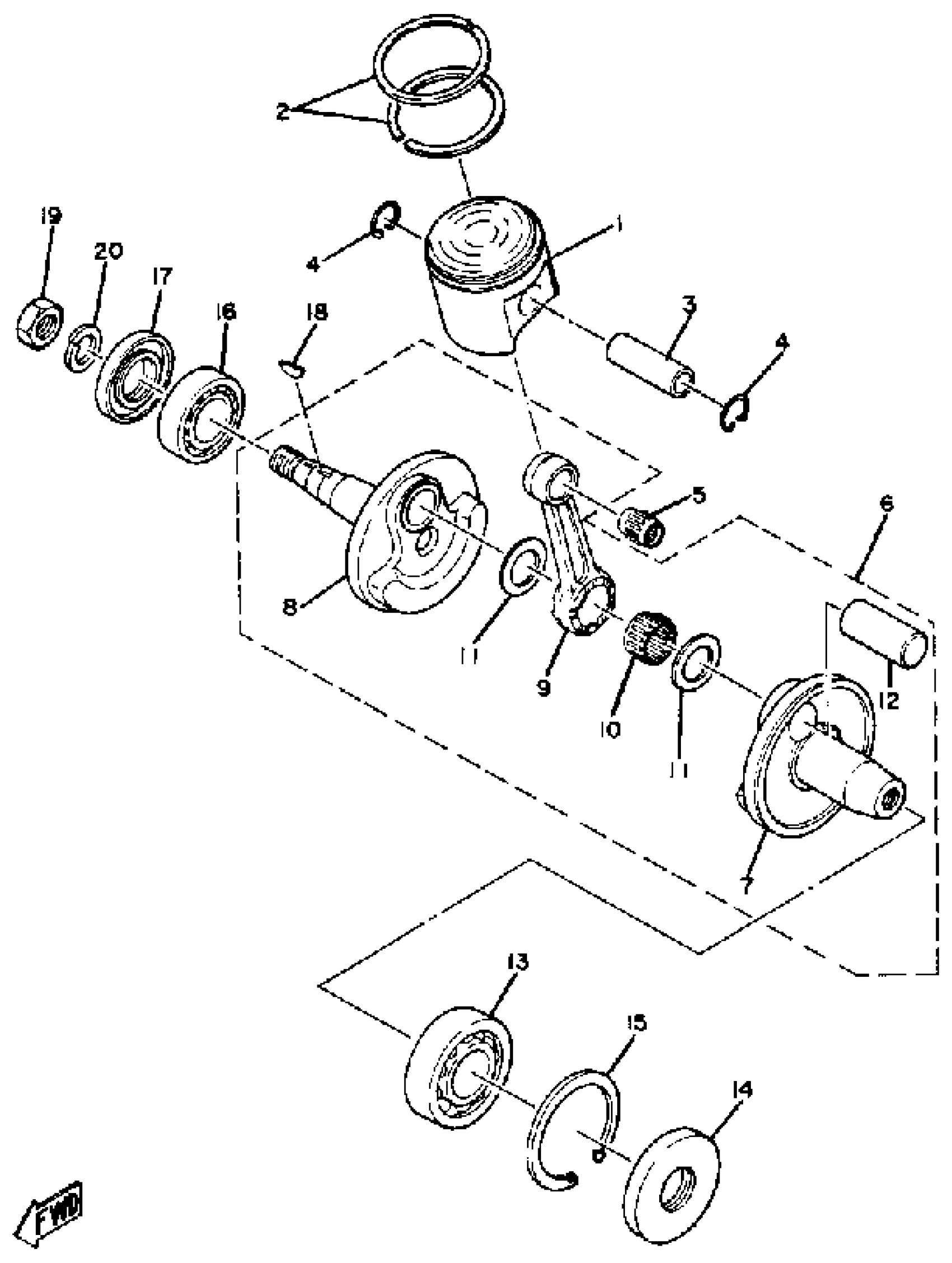

Find the part on the Crankshaft - Piston ET250D\E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha ET250C Crankshaft - Piston ET250D\E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD (STD)

8G5-11631-01-96

1
Out of stock

1

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

8G5-11635-01-00

1
Out of stock

1

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

8G5-11636-01-00

1
Out of stock

1

PISTON 3 O/S 0.75

(8G5-11637-01-00)

1
Out of stock

1

PISTON 4 O/S 1.00

(8G5-11638-01-00)

1
Out of stock

2

PISTON RINGSET STD

8F3-11601-00-00

1
Out of stock

2

PISTON RINGSET 1ST

8F3-11601-10-00

1
Out of stock

2

PISTON RINGSET 2ND

8F3-11601-20-00

1
Out of stock

2

PISTON RINGSET 3RD

8F3-11601-30-00

1
Out of stock

2

PISTON RINGSET 4TH

8F3-11601-40-00

1
Out of stock

3

PIN, PISTON

818-11633-00-00

1
Out of stock

4

CLIP 6041163400

93450-20026-00

1
Out of stock

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

1
Out of stock

6

CRANKSHAFT ASSEMBLY

8J2-11400-00-00

1
Out of stock

7

. CRANK 1

J10-11412-00-00

1
Out of stock

8

CRANK 2

(8F3-11422-00-00)

1
Out of stock

9

. ROD, CONNECTING

881-11651-00-00

1
Out of stock

10

BEARING

93310-424E8-00

1
Out of stock

11

WASHER (152-11685-00)

90209-24073-00

—
Out of stock

12

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

13

BEARING (B6306)

93306-30617-00

1
Out of stock

14

OIL SEAL (30X72X8-J10)

93102-30188-00

—
Out of stock

15

CIRCLIP(8E6)

93450-72048-00

—
Out of stock

16

BEARING (B6203)

93306-20613-00

1
Out of stock

17

OIL SEAL,SD-TYPE

93102-30128-00

—
Out of stock

18

KEY, WOODRUFF

90280-05001-00

—
Out of stock

19

NUT

90170-16425-00

—
Out of stock

20

WASHER(JN5)

92907-16100-00

—
Out of stock
