1979 Yamaha ET250C Crankcase ET250D - E Diagram

← All diagrams

Find the part on the Crankcase ET250D - E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

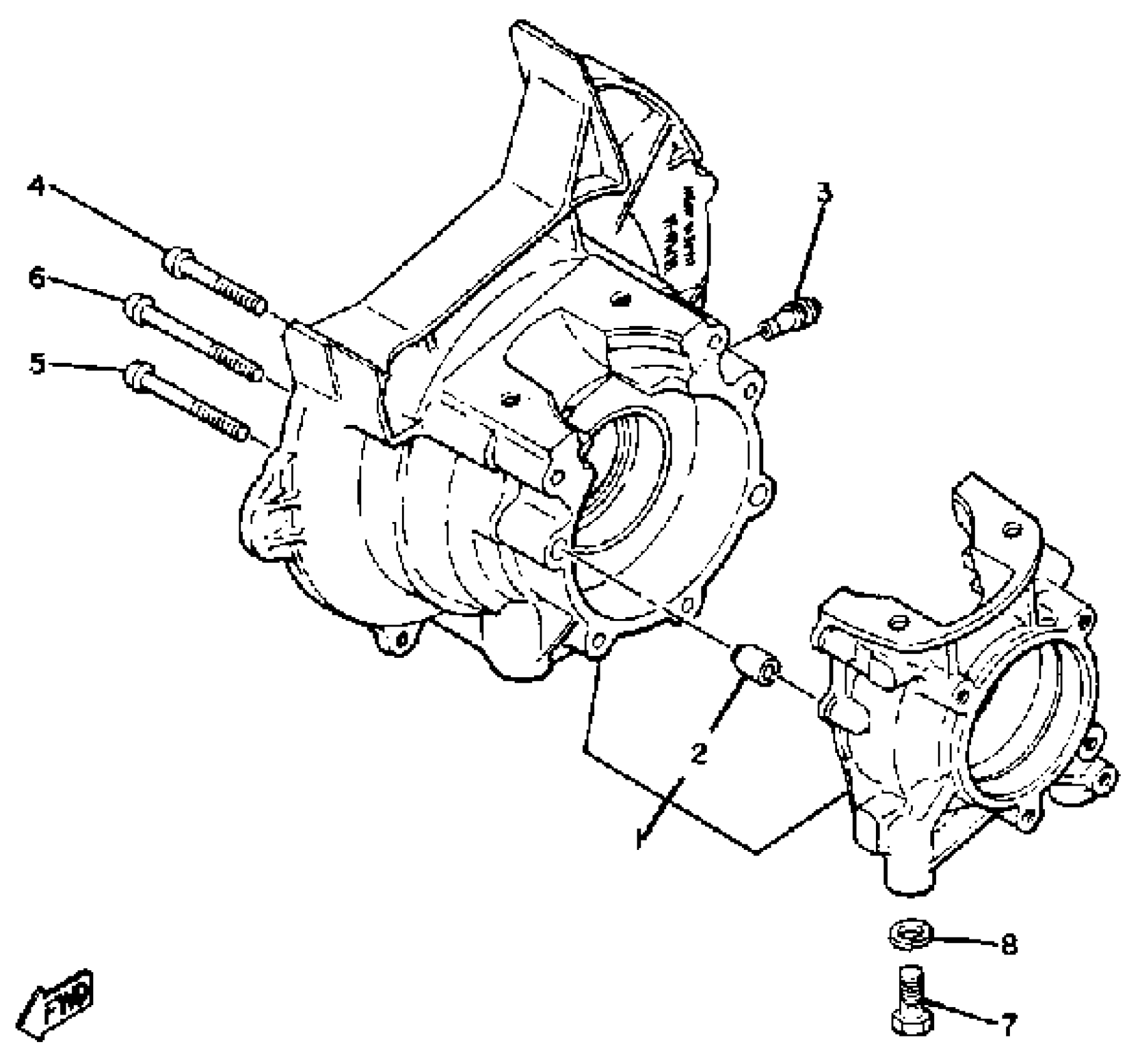

1979 Yamaha ET250C Crankcase ET250D - E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

8H4-15100-00-00

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

6

SCREW PAN HEAD

98580-06565-00

—
Out of stock

7

BOLT, DOME HEAD

90106-10034-00

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
