1979 Yamaha ET250C Exhaust ET250D\E Diagram

← All diagrams

Find the part on the Exhaust ET250D\E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

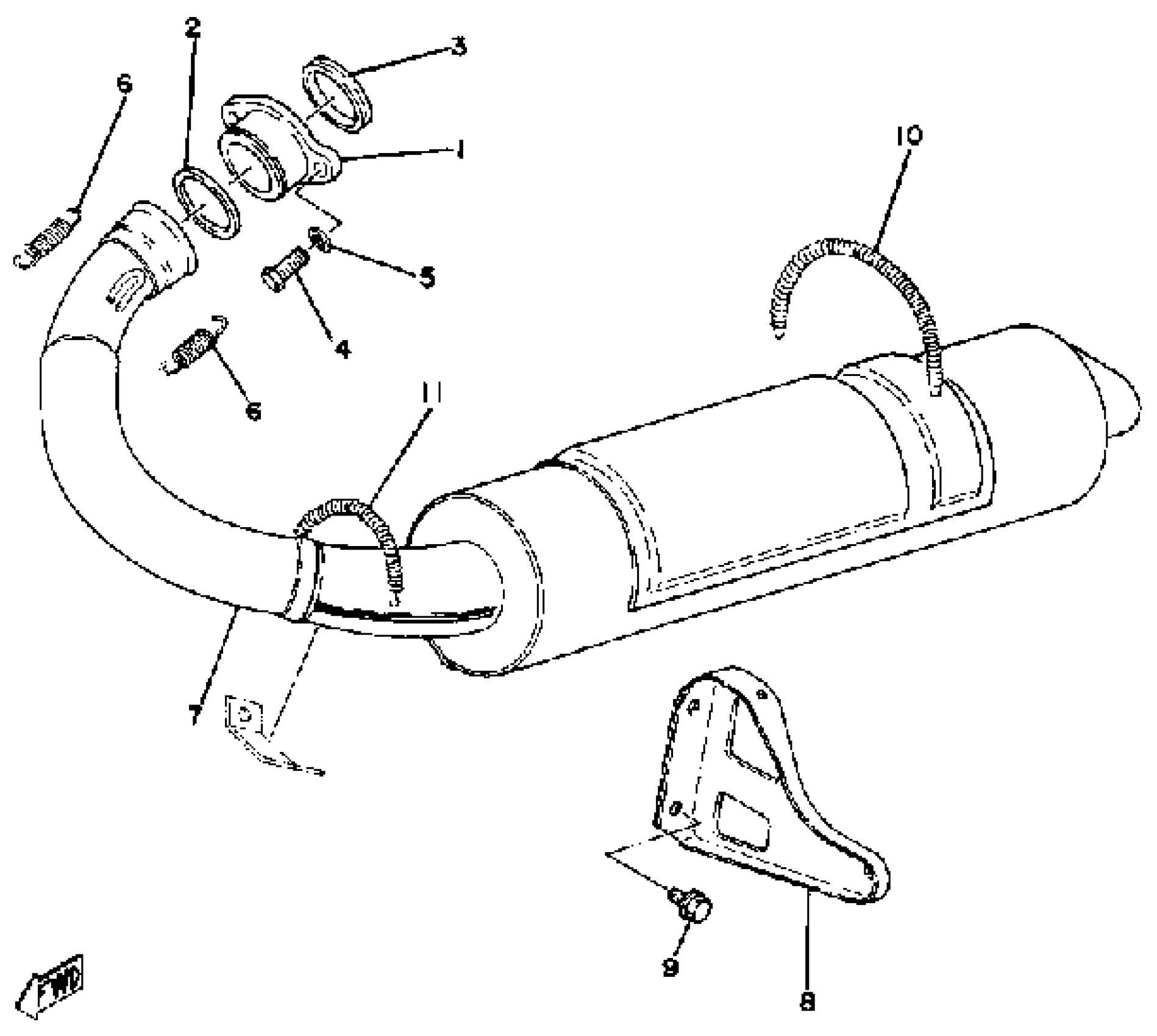

1979 Yamaha ET250C Exhaust ET250D\E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT, RING

81E-14612-00-00

1
Out of stock

2

RING

888-14633-00-00

1

$6.46

In stock

3

GASKET, EXST PIPE

8F3-14613-01-00

1
Out of stock

4

BOLT (682)

97013-08025-00

1

$6.80

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

SPRING, HOOK (864)

90506-20074-00

1

$7.74

In stock

7

EXHAUST PIPE ASSEMBLY L

(8F3-14610-02-00)

1
Out of stock

8

STAY, MUFFLER 1

(8G5-14771-00-00)

1
Out of stock

9

BOLT, FLANGE

(95802-08010-00)

1
Out of stock

10

SPRING, TENSION

90506-16174-00

1
Out of stock

11

SPRING, TENSION

90506-14207-00

1
Out of stock
