1979 Yamaha ET250C Engine Bracket ET250D - E Diagram

← All diagrams

Find the part on the Engine Bracket ET250D - E diagram for your 1979 Yamaha ET250C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

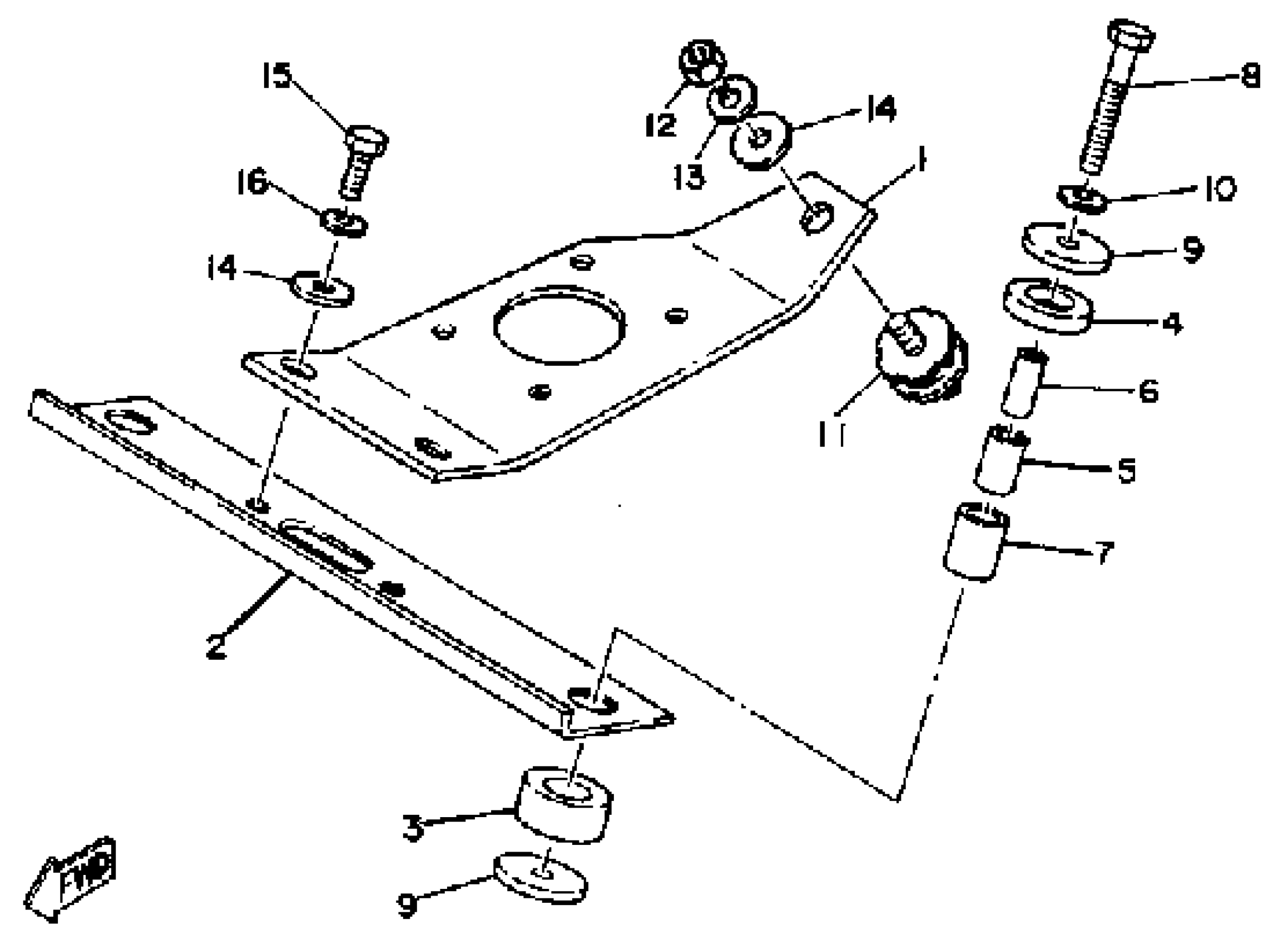

1979 Yamaha ET250C Engine Bracket ET250D - E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8F3-21411-02-00

1
Out of stock

2

BRACKET, ENGINE 2

(8F3-21419-00-00)

1
Out of stock

3

DAMPER, RUBBER 1

8F3-21485-00-00

1
Out of stock

4

DAMPER

8F3-21488-00-00

1
Out of stock

5

BUSH, SPEC''L RUBBER

90385-15030-00

1
Out of stock

6

COLLAR

90387-10610-00

1
Out of stock

7

COLLAR

90387-21611-00

1
Out of stock

8

BOLT, HEXAGON

97013-10055-00

—

$5.55

In stock

9

WASHER (888)

90201-10151-00

—

$3.94

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

DAMPER, ENGINE MOUNT 2

8F3-21486-00-00

1

$68.00

In stock

12

NUT(624)

95380-10600-00

1

$2.14

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

15

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

16

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
