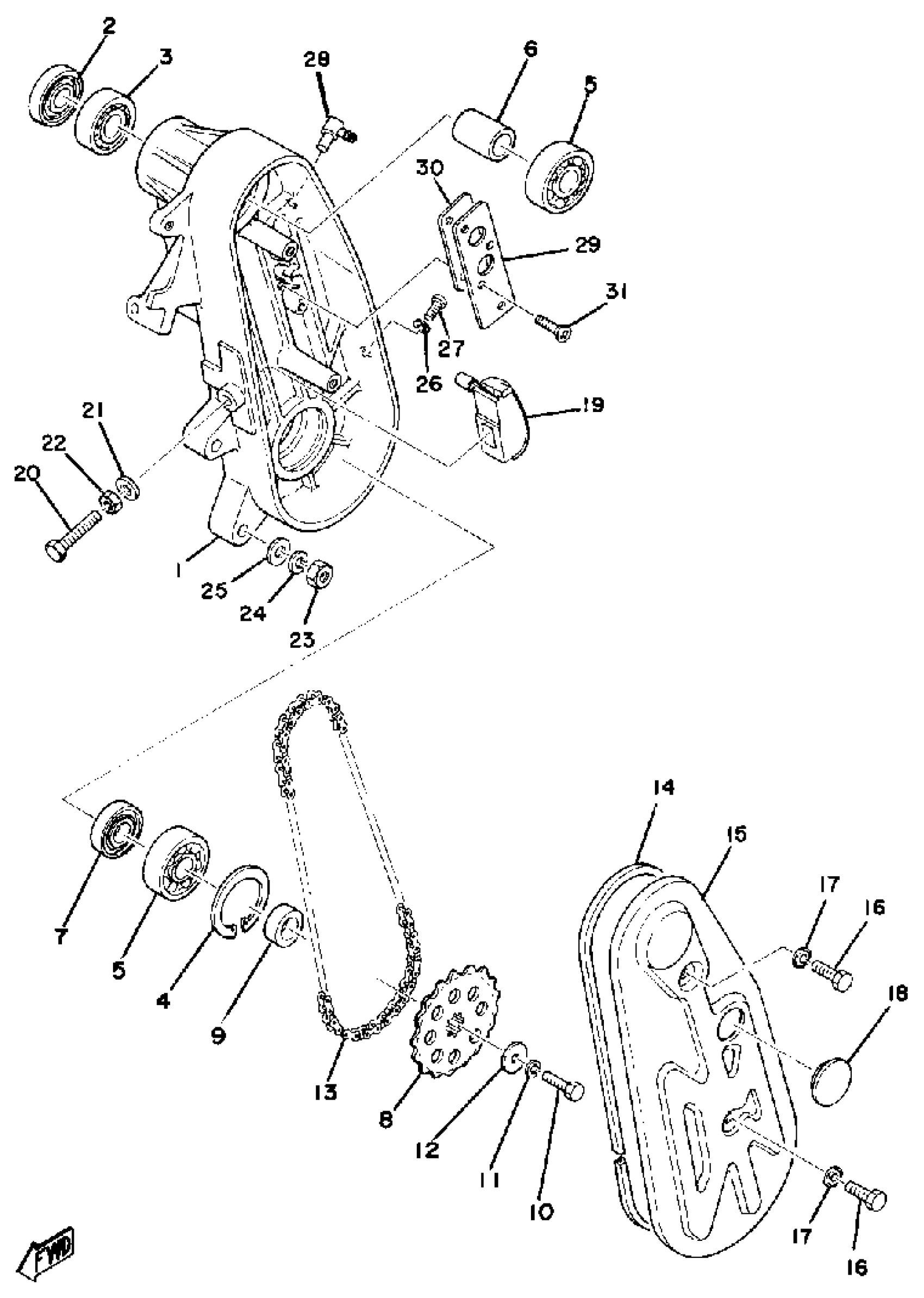

Find the part on the Track Drive diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha ET250B Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8F3-47541-00-00

1
Out of stock

2

OIL SEAL (30X47X7-810)

93102-30083-00

1

$11.08

In stock

3

BEARING(1GJ)

93306-20458-00

1

$36.19

In stock

4

CIRCLIP(26H)

99009-52500-00

1

$10.74

In stock

5

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

6

COLLAR

90387-20580-00

1
Out of stock

7

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

8

SPROCKET, CHAIN DRIVEN

8BC-47548-10-00

1
Out of stock

8

SPROCKET, CHAIN DRIVEN

8BC-47548-20-00

—

$25.14

In stock

9

COLLAR

90387-20155-00

1
Out of stock

10

BOLT (682)

97013-08025-00

1

$6.80

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

13

CHAIN (DID40K 60L)

94580-01060-00

1
Out of stock

14

RING, HOUSING (97302-08020)

8F3-47558-00-00

1
Out of stock

15

CAP, HOUSING

8F3-47543-00-00

1
Out of stock

16

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

17

WASHER (821)

90210-08002-00

—

$5.68

In stock

18

CAP

148-22315-00-00

—

$6.40

In stock

19

TENSIONER

8F3-47611-02-00

—

$24.51

In stock

20

BOLT, HEXAGON (8F3)

90101-10357-00

—

$6.52

In stock

21

WASHER SEAL 256111730200

90210-10004-00

—

$4.11

In stock

22

NUT (682)

95380-10700-00

1

$5.78

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

25

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

26

GASKET 838153840000

90430-06016-00

—

$6.18

In stock

27

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

28

BREATHER

583-15371-00-00

—
Out of stock

29

PLATE

8G8-47591-00-00

1
Out of stock

30

GASKET

85T-47592-00-00

1
Out of stock

31

SCREW, FLAT

98707-05016-00

—

$5.60

In stock
