1978 Yamaha ET250B Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

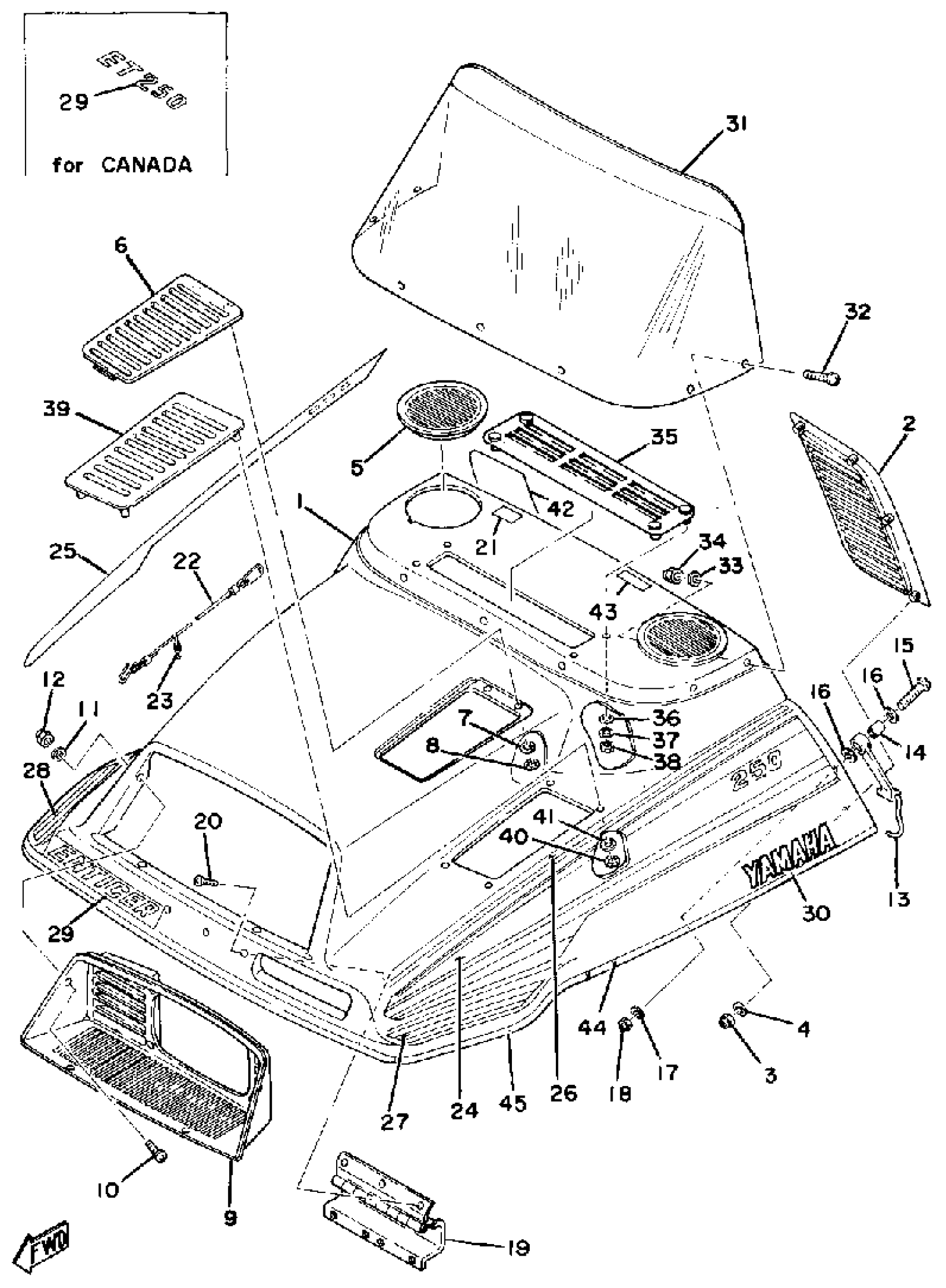

1978 Yamaha ET250B Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

(8G5-77110-00-00)

1
Out of stock

2

LOUVER 1

8F3-77131-00-00

1
Out of stock

3

NUT, NYLON

95707-05300-00

1

$2.74

In stock

4

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

5

LOUVER 3

8F3-77133-00-00

1
Out of stock

6

LOUVER 4

8F3-77134-01-00

1
Out of stock

7

EMBLEM 3

838-77143-00-00

1
Out of stock

8

NUT 6504269100

90183-05003-00

1
Out of stock

9

BODY, HEADLIGHT

8F3-84311-00-00

1
Out of stock

10

SCREW, BINDING

98907-05020-00

1

$6.18

In stock

11

WASHER, PLAIN (3GDF)

90201-051K1-00

1

$6.46

In stock

12

NUT, NYLON

95707-05300-00

1

$2.74

In stock

13

LATCH ASSEMBLY

8G5-77170-00-00

1
Out of stock

14

SPACER

90560-07007-00

1
Out of stock

15

SCREW, BIND(J39)

98980-06030-00

1

$5.62

In stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

NUT, NYLON

95707-06300-00

—

$3.20

In stock

19

HINGE ASSEMBLY

8F3-77140-00-00

1
Out of stock

20

SCREW, BIND (705)

98980-06016-00

—
Out of stock

21

INDICATOR, COCK

8G5-24153-00-00

1
Out of stock

22

STOPPER, SHROUD

8F3-77118-01-00

1
Out of stock

23

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

24

ORNAMENT 1

(8F3-77163-00-00)

1
Out of stock

25

ORNAMENT 2

(8F3-77164-00-00)

1
Out of stock

26

ORNAMENT 3

(8F3-77169-00-00)

1
Out of stock

27

ORNAMENT 4

(8F3-77113-00-00)

1
Out of stock

28

ORNAMENT 5

(8F3-77114-00-00)

1
Out of stock

29

EMBLEM 6

8F3-77356-00-00

1
Out of stock

30

EMBLEM 7

(8G5-77357-00-00)

1
Out of stock

31

WINDSHIELD

8N5-77210-00-00

1
Out of stock

32

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

33

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

34

NUT, NYLON

95707-05300-00

1

$2.74

In stock

35

LOUVER 5

8J4-77109-00-00

1
Out of stock

36

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

37

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

38

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

39

LOUVER 6

8J4-77108-00-00

1
Out of stock

40

NUT 6504269100

90183-05003-00

1
Out of stock

41

EMBLEM 3

838-77143-00-00

1
Out of stock

42

LABEL, WARNING

8F3-77458-00-00

1
Out of stock

43

LABEL, SAFETY

288-21659-00-00

1
Out of stock

44

TRIM 1

8G5-77165-00-00

1
Out of stock

45

TRIM 2

(8G5-77166-00-00)

1
Out of stock
