1978 Yamaha ET250B Crank - Piston Diagram

← All diagrams

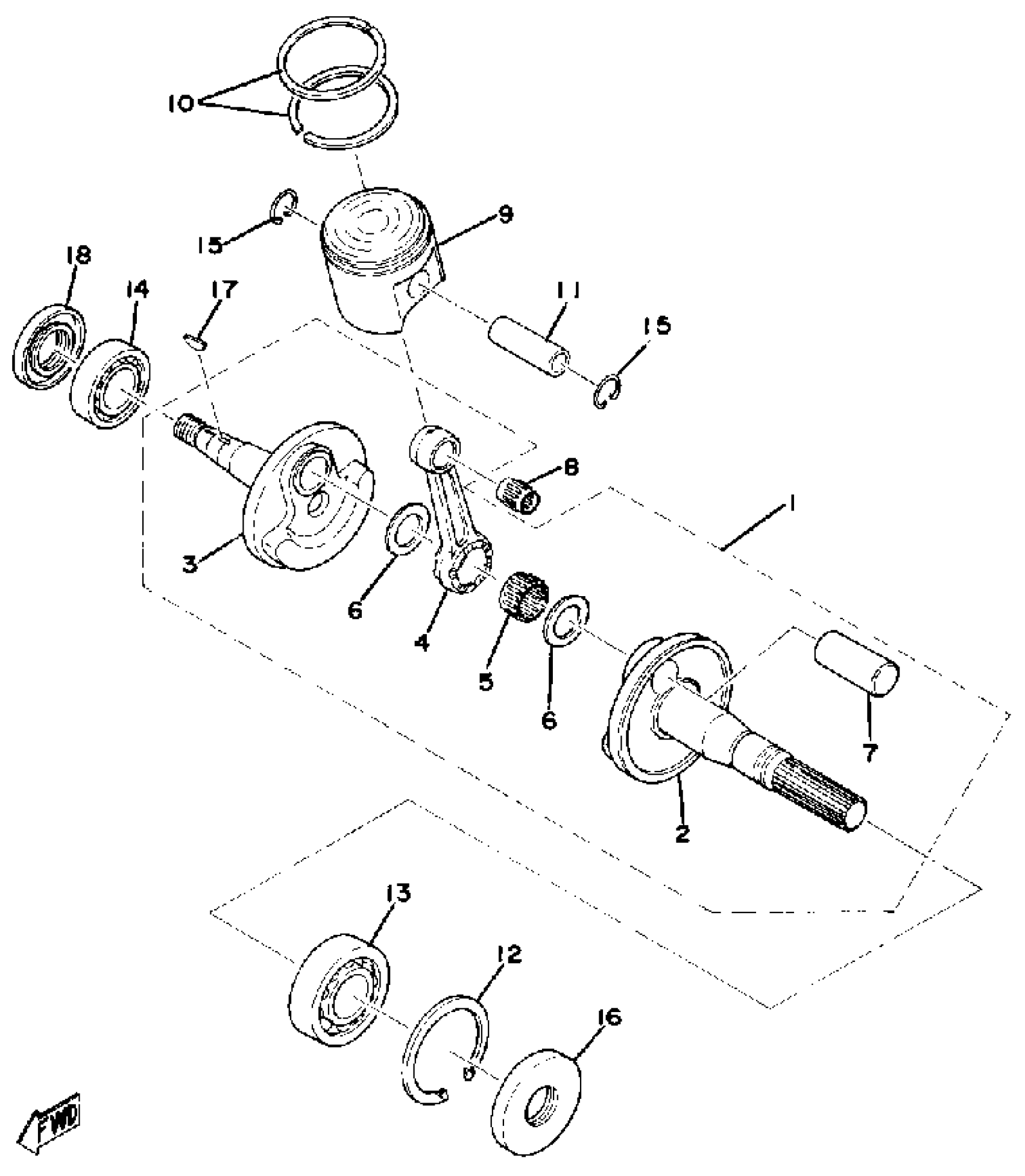

Find the part on the Crank - Piston diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha ET250B Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

8F3-11400-00-00

1
Out of stock

2

CRANK 1

(8F3-11412-00-00)

1
Out of stock

3

CRANK 2

(8F3-11422-00-00)

1
Out of stock

4

. ROD, CONNECTING

881-11651-00-00

1
Out of stock

5

BEARING

93310-424E8-00

1

$19.49

In stock

6

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

7

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

8

1

$32.87

In stock

9

PISTON STD (STD)

8G5-11631-01-96

1
Out of stock

9

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

8G5-11635-01-00

1
Out of stock

9

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

8G5-11636-01-00

1
Out of stock

9

PISTON 3 O/S 0.75

(8G5-11637-01-00)

1
Out of stock

9

PISTON 4 O/S 1.00

(8G5-11638-01-00)

1
Out of stock

10

PISTON RINGSET STD

8F3-11601-00-00

1
Out of stock

10

PISTON RINGSET 1ST

8F3-11601-10-00

1
Out of stock

10

PISTON RINGSET 2ND

8F3-11601-20-00

1
Out of stock

10

PISTON RINGSET 3RD

8F3-11601-30-00

1
Out of stock

10

PISTON RINGSET 4TH

8F3-11601-40-00

1
Out of stock

11

PIN, PISTON

818-11633-00-00

—

$28.05

In stock

12

CIRCLIP(8E6)

93450-72048-00

—

$4.51

In stock

13

BEARING(4GB)

93306-30629-00

—

$66.12

In stock

14

BEARING (B6203)

93306-20613-00

1
Out of stock

15

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

16

OIL SEAL, SD-TYPE (FPJ-32-72-8-1 TS)

93102-32161-00

1
Out of stock

17

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

18

OIL SEAL,SD-TYPE

93102-30128-00

—

$12.58

In stock
