1978 Yamaha ET250B Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

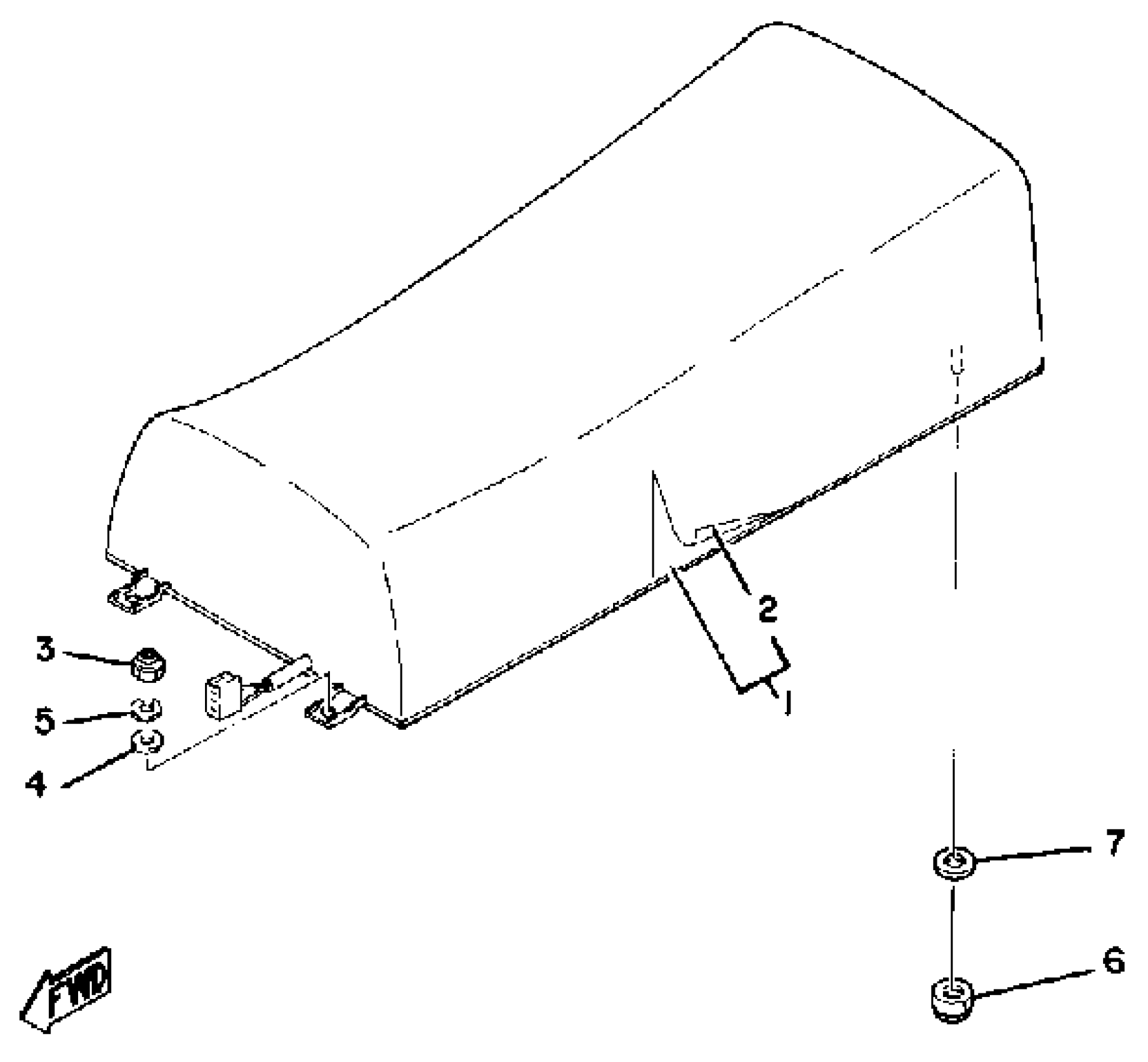

1978 Yamaha ET250B Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

8J5-24710-00-00

1
Out of stock

2

. COVER, SINGLE SEAT

8G5-24711-00-00

1
Out of stock

3

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

4

WASHER, PLATE

90201-06020-00

1

$6.28

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock
