1978 Yamaha ET250B Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

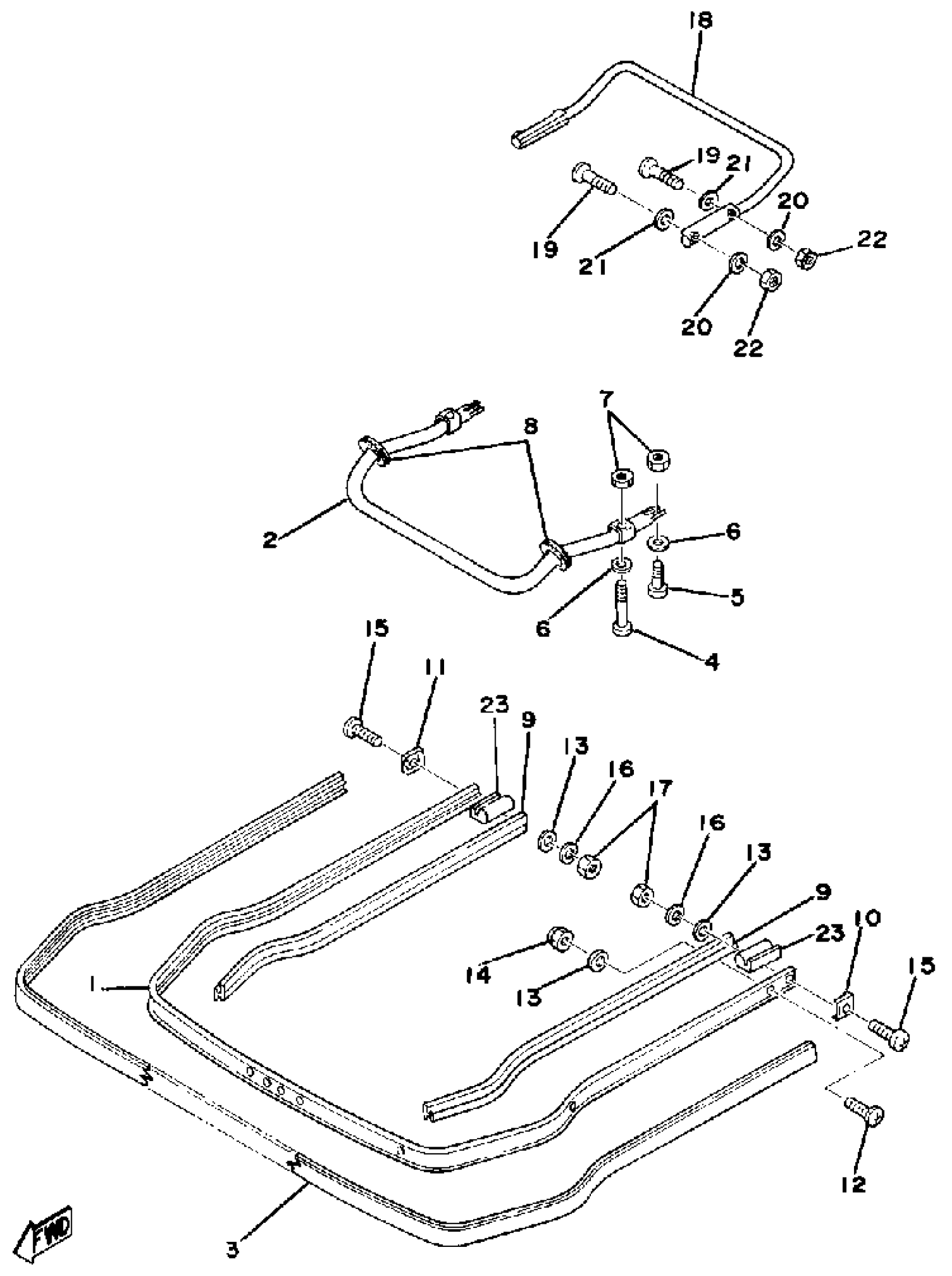

1978 Yamaha ET250B Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

(8G5-77511-00-00)

1
Out of stock

2

BUMPER, FRONT 3

8G5-77513-00-00

1
Out of stock

3

BUMPER, FRONT 4

8G5-77514-01-00

1
Out of stock

4

SCREW, BIND

98901-08040-00

1
Out of stock

5

SCREW, BIND(J50)

98980-08020-00

1

$3.40

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

NUT, NYLON

95717-08300-00

1

$2.57

In stock

8

GROMMET

90480-61227-00

1
Out of stock

9

BUSH, RUBBER 1

8H4-77515-00-00

1
Out of stock

10

END, BUMPER

8F3-77523-00-00

1
Out of stock

11

END, BUMPER

8F3-77524-00-00

1
Out of stock

12

SCREW, FLAT HEAD

98780-06025-00

1

$5.69

In stock

13

WASHER, PLATE

90201-06M08-00

1
Out of stock

14

NUT, NYLON

95707-06300-00

1

$3.20

In stock

15

SCREW, BIND(J39)

98980-06030-00

1

$5.62

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

BUMPER, REAR 1

8F3-77541-01-00

1
Out of stock

19

—

$3.80

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

NUT, CROWN

95303-08800-00

—

$7.52

In stock

23

BUSH, RUBBER 2

(8G5-77516-00-00)

1
Out of stock
