1978 Yamaha ET250B Frame Diagram

← All diagrams

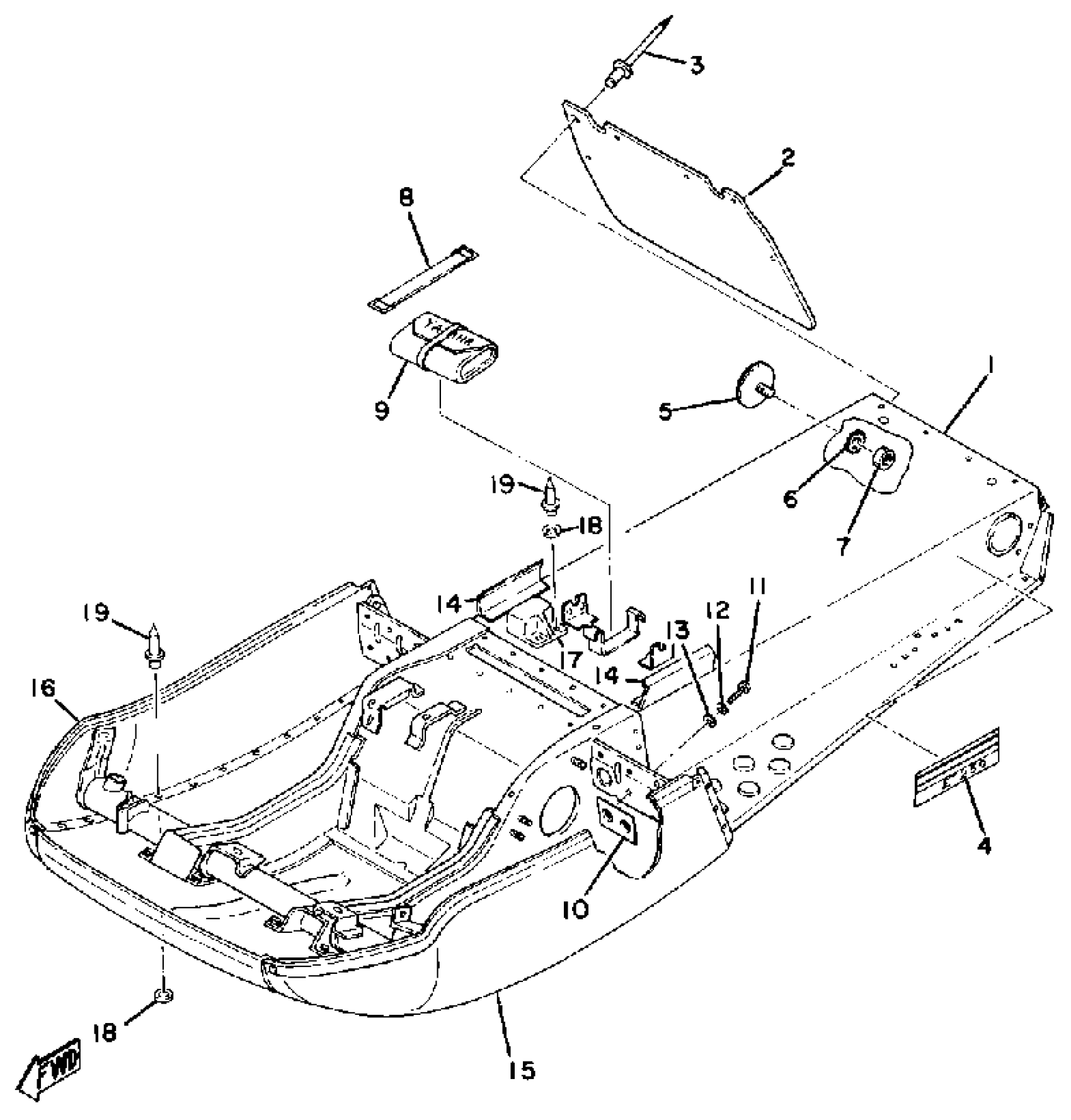

Find the part on the Frame diagram for your 1978 Yamaha ET250B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha ET250B Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(8G5-21910-01-00)

1
Out of stock

2

FLAP

8F2-77595-00-00

1
Out of stock

3

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

4

EMBLEM 4

8G5-77354-00-00

1
Out of stock

5

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

6

WASHER, EX.TOOTH

92990-05400-00

1
Out of stock

7

NUT, NYLON

95707-05300-00

1

$2.74

In stock

8

BAND, BATTERY

26L-82131-00-00

1

$7.05

In stock

9

TOOL KIT

85L-28100-01-00

1

$70.22

In stock

10

SHIELD, HEAT

8F3-23892-00-00

1
Out of stock

11

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

COVER, LUGGAGE BOX

(8G5-77392-00-00)

1
Out of stock

15

HOOD 1

8F3-21982-00-00

1
Out of stock

16

HOOD 2

8F3-21983-00-00

1
Out of stock

17

COVER, CONNECTER

(8F3-82599-00-00)

1
Out of stock

18

WASHER, PLATE

90201-04027-00

—
Out of stock

19

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock
