- ET250A 1977
TRACK - SUSPENSION

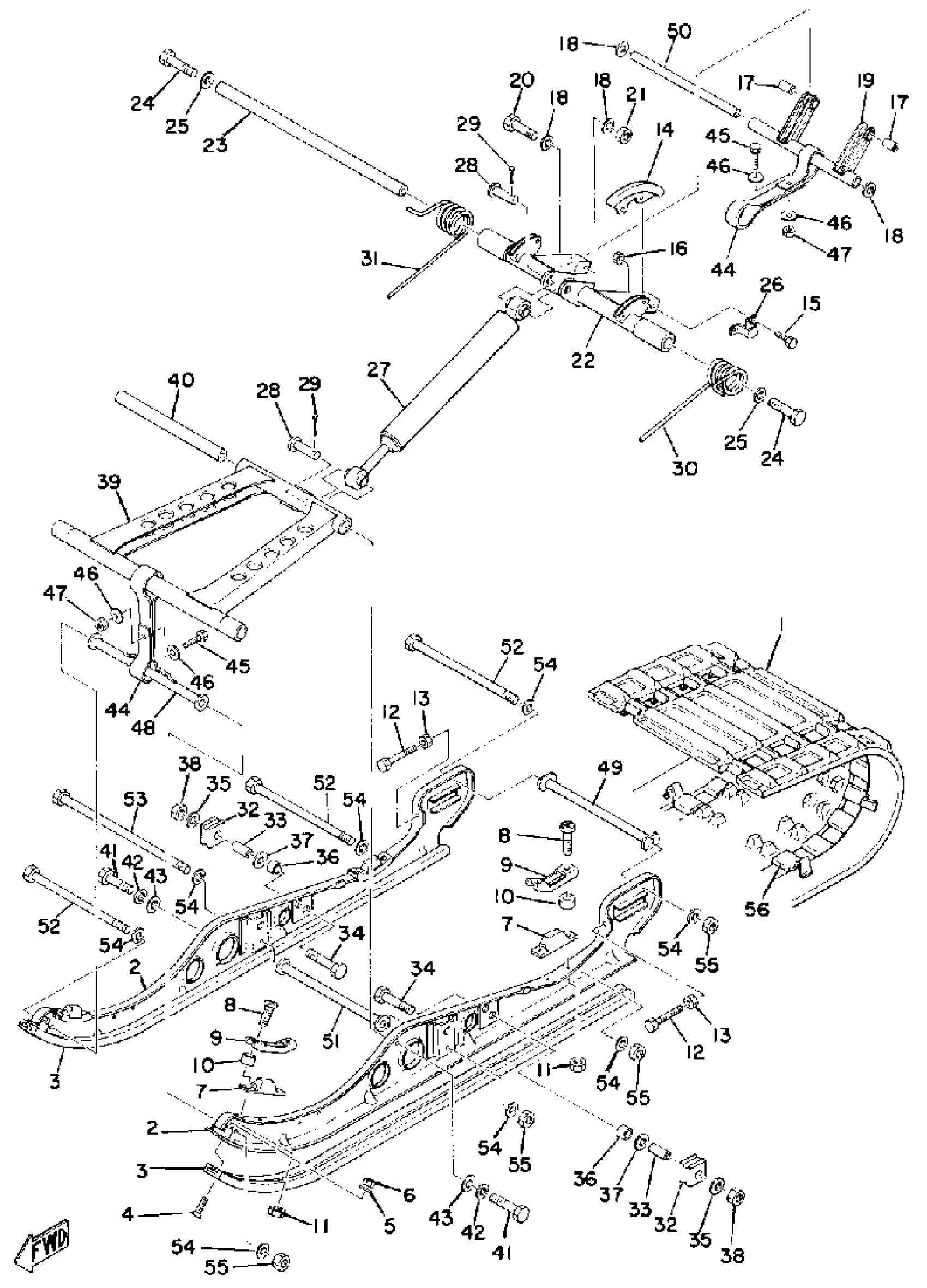

1977 Yamaha ET250A Track - Suspension Diagram
Find the part on the Track - Suspension diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
TRACK ASSEMBLY
(8F3-47110-01-00)
2
FRAME, SLIDING 1
8G5-47411-00-00
3
RUNNER, SLIDING 1 (8F3-47421-10)
8N4-47421-00-XX
7
DAMPER 1
8F3-47456-00-00
9
PLATE, DAMPER
8F3-47458-00-00
12
BOLT, HEXAGON (899 TRACK)
90101-10293-00
18
WASHER (1T1)
90201-08649-00
19
BRACKET 3
(8F3-47417-00-00)
20
BOLT
97013-08045-00
22
ARM, PIVOT 2
8F3-47332-01-00
26
BRACKET, ARM PIVOT
(8F3-47349-01-00)
27
SHOCK ABSORBER
8H9-47480-00-00
30
SPRING, TORSION
90508-10337-00
31
SPRING, TORSION
90508-10338-00
36
COLLAR
90387-12105-00
39
ARM, PIVOT 1
(8F3-47331-01-00)
40
SHAFT 3
(8F3-47485-00-00)
44
STOPPER 1
8F3-47495-00-00
48
BRACKET 1
8F3-47415-00-00
49
COLLAR
90387-08581-00
50
COLLAR
90387-08581-00
51
COLLAR
90387-08583-00
52
BOLT, HEXAGON
97027-08250-00
53
BOLT,HEXAGON
97027-08260-00
56
METAL, SLIDE
8A5-47115-00-00
