1977 Yamaha ET250A Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

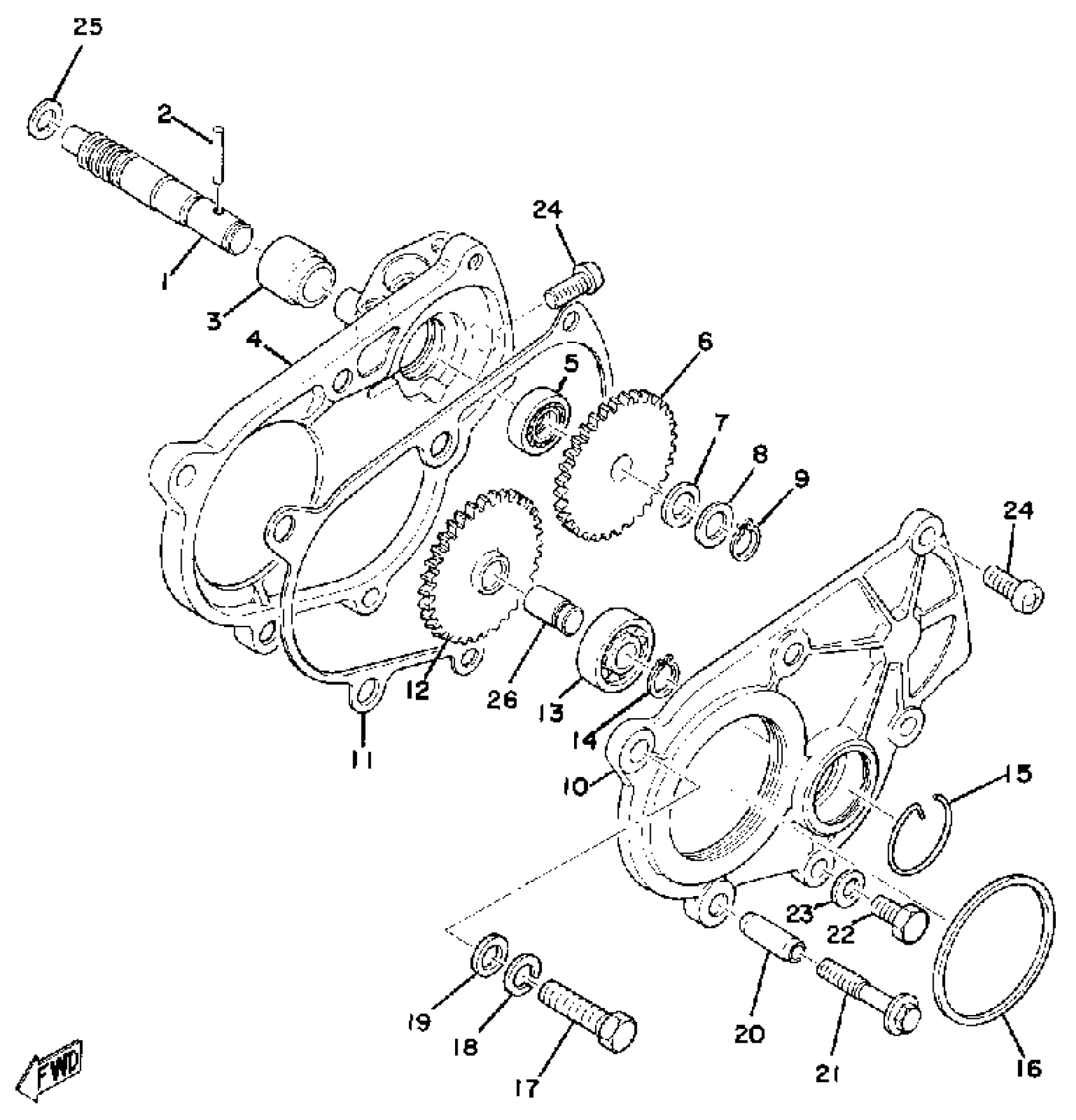

1977 Yamaha ET250A Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

(8F3-13175-00-00)

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(8E6-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

COVER, OIL PUMP R

8F3-15426-00-00

1
Out of stock

11

GASKET 2

860-15466-01-00

1
Out of stock

12

GEAR, IDLE

(8F3-13179-01-00)

1
Out of stock

13

BEARING (B6000RS)

93306-00003-00

1
Out of stock

14

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

15

CLIP

(90468-12077-00)

1
Out of stock

16

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

17

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

PIN, DOWEL

91810-18022-00

1
Out of stock

21

BOLT, FLANGE

95817-06035-00

—

$5.37

In stock

22

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

SCREW, PAN

98507-06014-00

—

$6.18

In stock

25

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

26

SHAFT, IDLE GEAR

8F3-13342-00-00

1
Out of stock
