1977 Yamaha ET250A Primary Sheave Diagram

← All diagrams

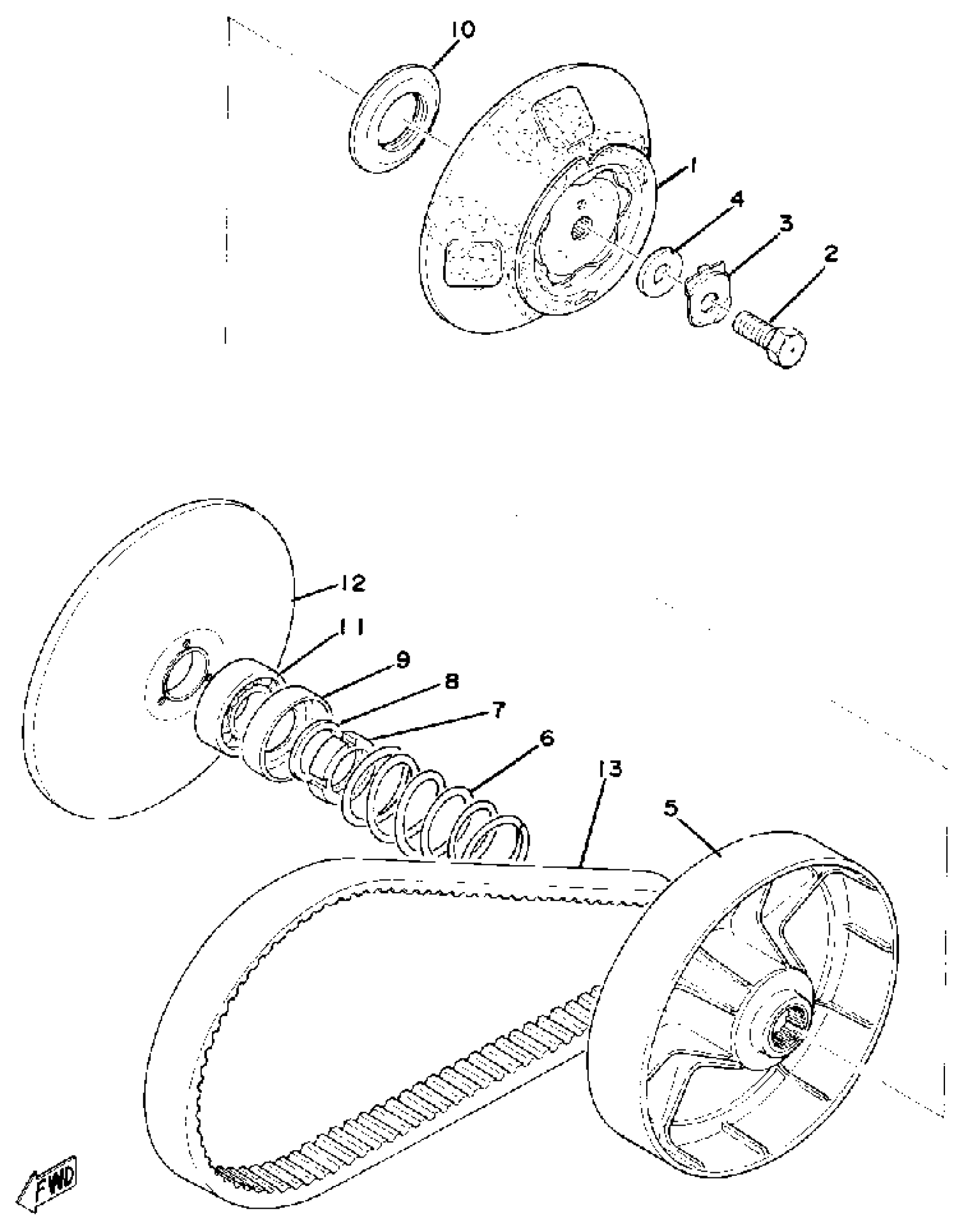

Find the part on the Primary Sheave diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI. SHEAVE CAP (8F3-17630-00)

8F3-W1762-01-00

1
Out of stock

2

BOLT

(838-17647-01-00)

1
Out of stock

3

WASHER, LOCK

90215-12084-00

1
Out of stock

4

WASHER (838)

90201-12191-00

1

$6.11

In stock

5

PRI SLIDG SHEAVE

(8F3-17620-00-00)

1
Out of stock

6

SPRING, COMPRESSION

90501-55451-00

1
Out of stock

7

NUT, BEARING

(810-17642-00-00)

1
Out of stock

8

WASHER, CONICAL SPR

90208-28003-00

1
Out of stock

9

SEAT, SPRING

(820-17644-00-00)

1
Out of stock

10

CAM

8F3-17623-00-00

1
Out of stock

11

BEARING

93306-07806-00

1

$56.18

In stock

12

PRI. FIXED SHEAVECOMP.

8E3-W1761-00-00

1
Out of stock

13

V-BELT

820-17641-01-00

1

$33.66

In stock
