1977 Yamaha ET250A SKI Diagram

← All diagrams

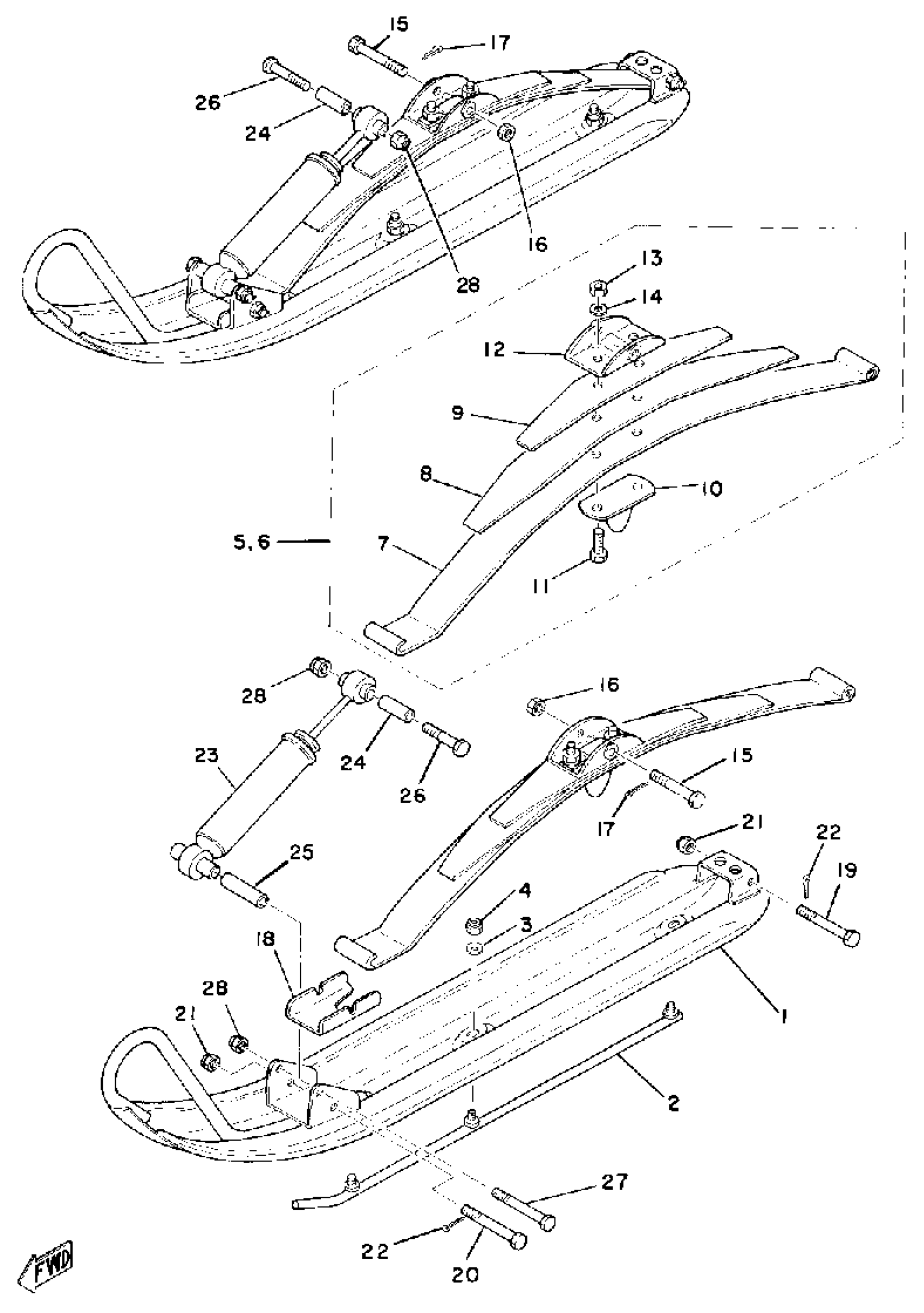

Find the part on the SKI diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP

8F3-23710-01-00

1

$197.99

In stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

WASHER(6TC)

92907-08200-00

1
Out of stock

4

NUT, NYLON

95717-08300-00

1

$2.57

In stock

5

SPRING ASSEMBLY 1

8F3-23760-00-00

1
Out of stock

6

SPRING ASSEMBLY 2

8F3-23770-00-00

1
Out of stock

7

LEAF 1

8F3-23761-10-00

1
Out of stock

8

LEAF 2

8F3-23762-10-00

1
Out of stock

9

LEAF 3

8F3-23763-10-00

1
Out of stock

10

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

11

. BOLT

90101-10060-00

1
Out of stock

12

. SADDLE 1

806-23766-00-00

1
Out of stock

13

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

14

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

15

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

16

NUT, SLOTTED

95306-10900-00

1
Out of stock

17

PIN, COTTER

91490-25020-00

—

$2.94

In stock

18

PLATE, WEAR

8F3-23735-00-00

—

$17.98

In stock

19

—

$8.14

In stock

20

BOLT, PIN HOLE (8A7)

90102-08027-00

—

$7.35

In stock

21

NUT, NYLON

95717-08300-00

1

$2.57

In stock

22

PIN, COTTER

91490-20025-00

—

$1.31

In stock

23

CUSHION ASSY

8J6-23350-00-00

—

$145.14

In stock

24

COLLAR (878)

90387-08262-00

—

$9.02

In stock

25

COLLAR (864)

90387-08224-00

—

$7.52

In stock

26

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

27

BOLT (6K8)

97013-08075-00

—

$5.66

In stock

28

NUT, NYLON

95717-08300-00

1

$2.57

In stock
