1977 Yamaha ET250A Brake Diagram

← All diagrams

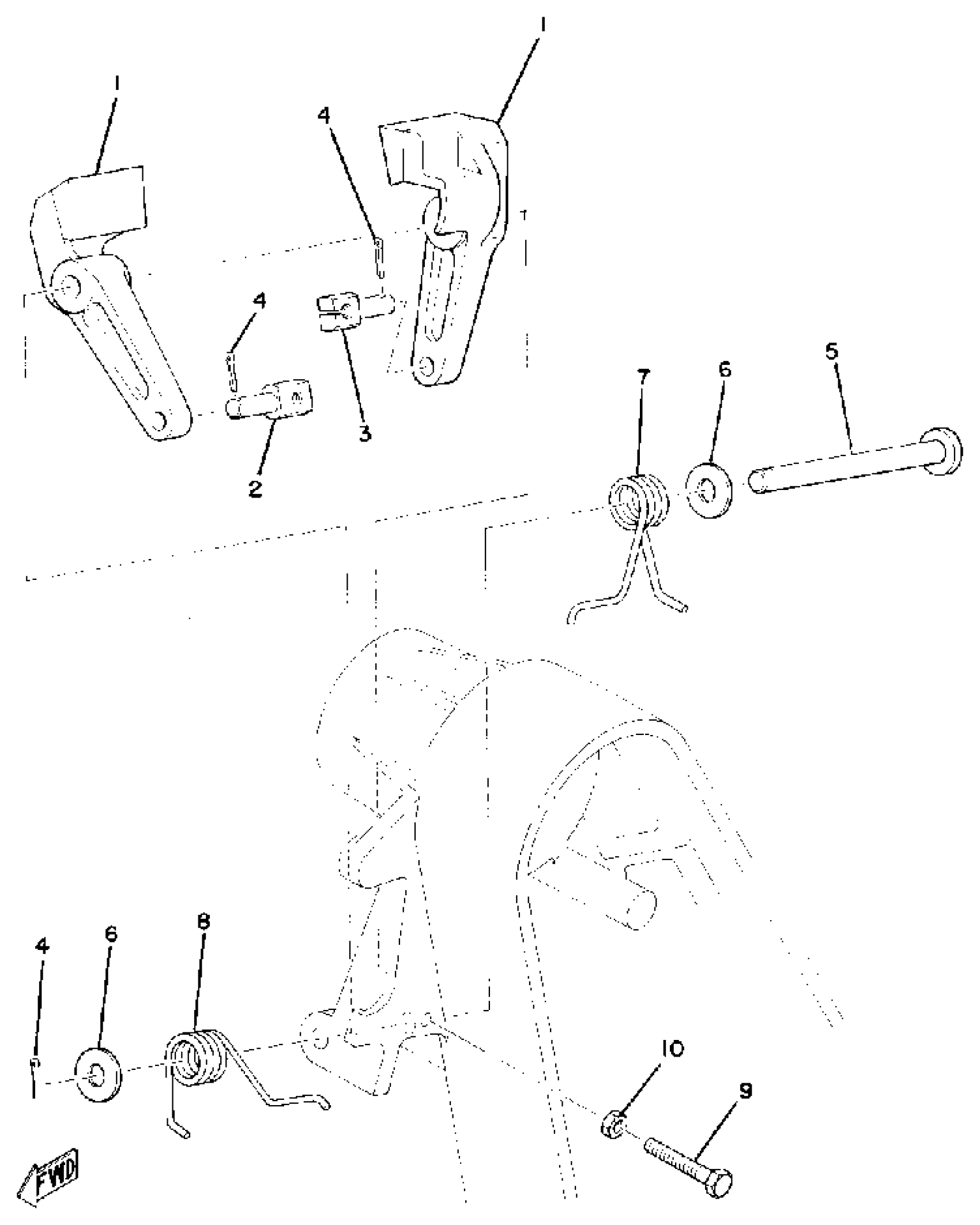

Find the part on the Brake diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER BODY COMP.1

88J-25730-00-00

1

$64.57

In stock

2

PIN (810)

90249-06012-00

—

$9.91

In stock

3

PIN

90249-06009-00

1
Out of stock

4

PIN, COTTER

91490-20025-00

1

$1.31

In stock

5

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

6

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

7

SPRING, TORSION

90508-26335-00

1
Out of stock

8

SPRING, TORSION

90508-26336-00

1
Out of stock

9

BOLT

90101-05355-00

1
Out of stock

10

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock
