1977 Yamaha ET250A Intake Diagram

← All diagrams

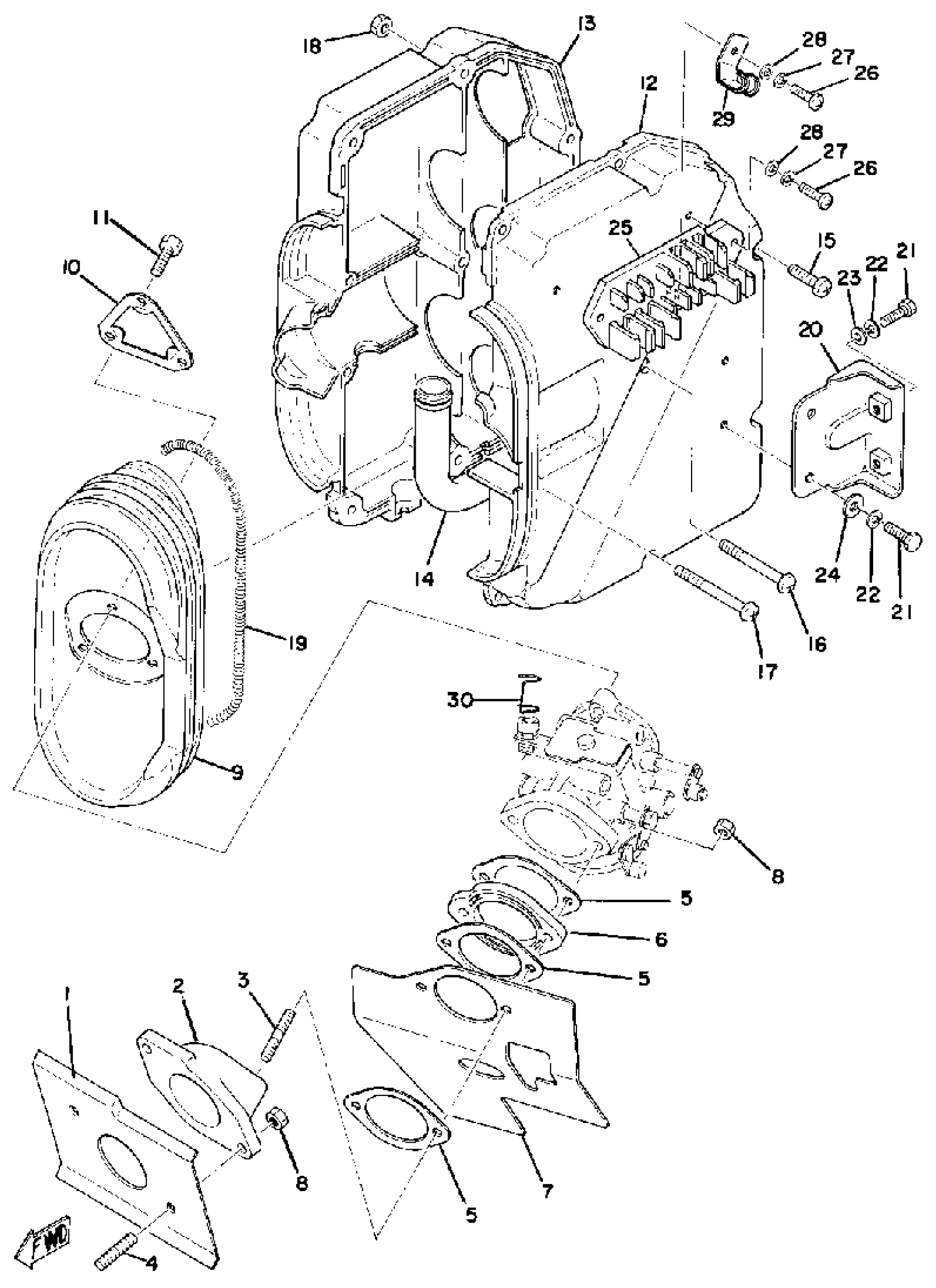

Find the part on the Intake diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET MANIFOLD

8G5-13556-09-00

1
Out of stock

2

JOINT, CARBURETOR

(8F3-13565-00-00)

1
Out of stock

3

BOLT, STUD

90116-08266-00

1
Out of stock

4

BOLT, STUD

90116-08039-00

1
Out of stock

5

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

6

MANIFOLD, INTAKE

8F3-13555-00-00

1
Out of stock

7

GASKET

8F3-13567-00-00

1
Out of stock

8

. NUT

95380-08700-00

1

$3.07

In stock

9

JOINT, AIR CLNR 1

8F3-14453-00-00

1
Out of stock

10

WASHER

8F3-14598-00-00

1
Out of stock

11

BOLT

90109-06484-00

1
Out of stock

12

SILENCER, INTAKE 1

8F3-14431-00-00

1
Out of stock

13

SILENCER, INTAKE 2

8F3-14441-00-00

1
Out of stock

14

PIPE

(8F3-14465-00-00)

1
Out of stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

SCREW, PAN HEAD

98580-05545-00

—

$5.86

In stock

17

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

18

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

19

SPRING, TENSION

90506-06153-00

1
Out of stock

20

STAY 2

(8F3-14499-00-00)

1
Out of stock

21

BOLT (661)

97013-06012-00

—

$4.71

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

24

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

25

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

26

SCREW, PAN

98507-06014-00

—

$6.18

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

29

CLAMP

90465-06013-00

1
Out of stock

30

CLAMP

90465-10033-00

1
Out of stock
