1977 Yamaha ET250A Carburetor Diagram

← All diagrams

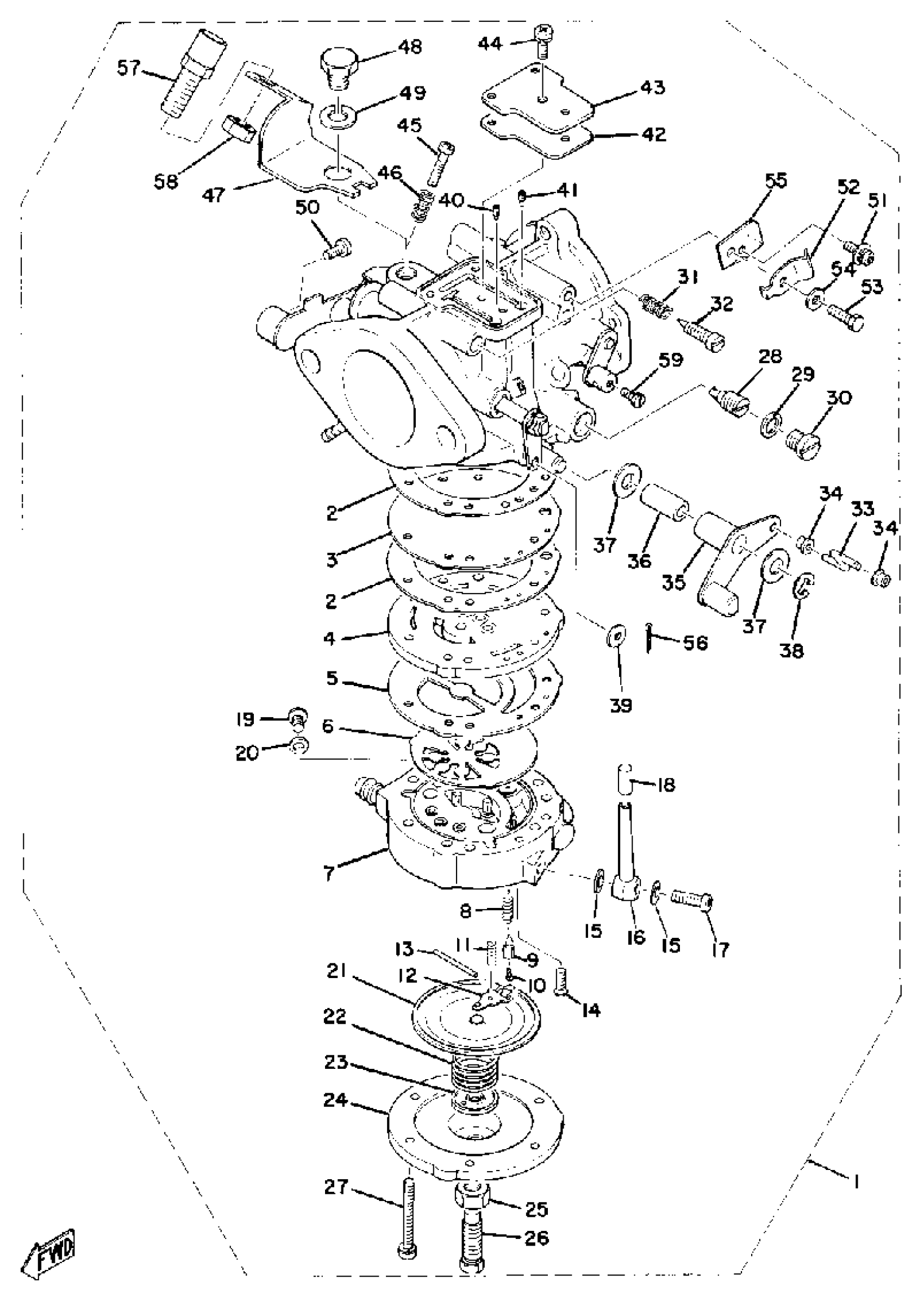

Find the part on the Carburetor diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha ET250A Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(8F3-14501-00-00)

1
Out of stock

2

GASKET

879-14536-09-00

1

$16.28

In stock

2

GASKET

879-14536-09-00

1

$16.28

In stock

3

. DIAPHRAGM, PUMP

879-14541-01-00

1
Out of stock

4

BODY, PUMP 1

(865-14542-01-00)

1
Out of stock

5

GASKET

865-14553-09-00

1

$14.75

In stock

6

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

7

DIAPHRAGM, PUMP

(8F3-14541-00-00)

1
Out of stock

8

SPRING, COMPRESSION

(90501-02349-00)

1
Out of stock

9

VALVE

838-14546-00-00

1

$39.18

In stock

10

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

11

. SPRING

810-14556-00-00

1
Out of stock

12

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

13

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

14

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

15

. WASHER

806-14559-00-00

1
Out of stock

16

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

17

. SCREW

8A1-14592-00-00

1
Out of stock

18

. CAP, BLIND

810-24462-01-00

1
Out of stock

19

SCREW

(806-14567-01-00)

1
Out of stock

20

. WASHER

810-14597-00-00

1
Out of stock

21

DIAPHRAGM

810-14545-00-00

—
Out of stock

22

SPRING

(857-14555-00-00)

1
Out of stock

23

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

24

BODY, PUMP 3

(810-14544-01-00)

1
Out of stock

25

. NUT

95380-08700-00

1

$3.07

In stock

26

. SCREW, STOP

884-14565-01-00

1
Out of stock

27

SCREW

(824-14567-00-00)

1
Out of stock

28

. JET, MAIN #130 (130)

845-14516-30-00

1
Out of stock

29

. WASHER

838-14597-00-00

1
Out of stock

30

SCREW

(845-14567-00-00)

1
Out of stock

31

SPRING, COMPRESSION

(90501-10237-00)

1
Out of stock

32

SCREW, ADJUST

(865-14522-00-00)

1
Out of stock

33

. ROD

8F3-14577-00-00

1
Out of stock

34

. COLLAR

865-14534-00-00

1
Out of stock

35

. LEVER, LINK

8F3-14575-01-00

1
Out of stock

36

. COLLAR

8F3-14534-00-00

1
Out of stock

37

. WASHER

8F3-14557-00-00

1
Out of stock

38

. WASHER

8F3-14597-00-00

1
Out of stock

39

WASHER, PLATE(3TJ)

90202-06056-00

—
Out of stock

40

. JET #50 (#50)

865-14515-50-00

1
Out of stock

41

JET #40

(865-14515-40-00)

1
Out of stock

42

GASKET

(865-14537-00-00)

1
Out of stock

43

PLATE

(8A1-14527-00-00)

1
Out of stock

44

. SCREW, WITH WASHER

90159-05005-00

1
Out of stock

45

. SCREW, PAN HEAD

90157-04010-00

1
Out of stock

46

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

47

PLATE, STAY

(8F3-14572-01-00)

1
Out of stock

48

BOLT(62E)

97013-08012-00

—

$2.48

In stock

49

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

50

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

51

. SCREW, WITH WASHER

90159-05005-00

1
Out of stock

52

. BRACKET

879-14581-00-00

1
Out of stock

53

SCREW

(810-14591-00-00)

1
Out of stock

54

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

55

PLATE

(8F3-14527-00-00)

1
Out of stock

56

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

57

. ADJUSTER, CABLE

857-14576-00-00

1
Out of stock

58

. NUT, HEXAGON

90170-08139-00

1
Out of stock

59

SCREW

(8F3-14591-00-00)

1
Out of stock
