FUEL TANK

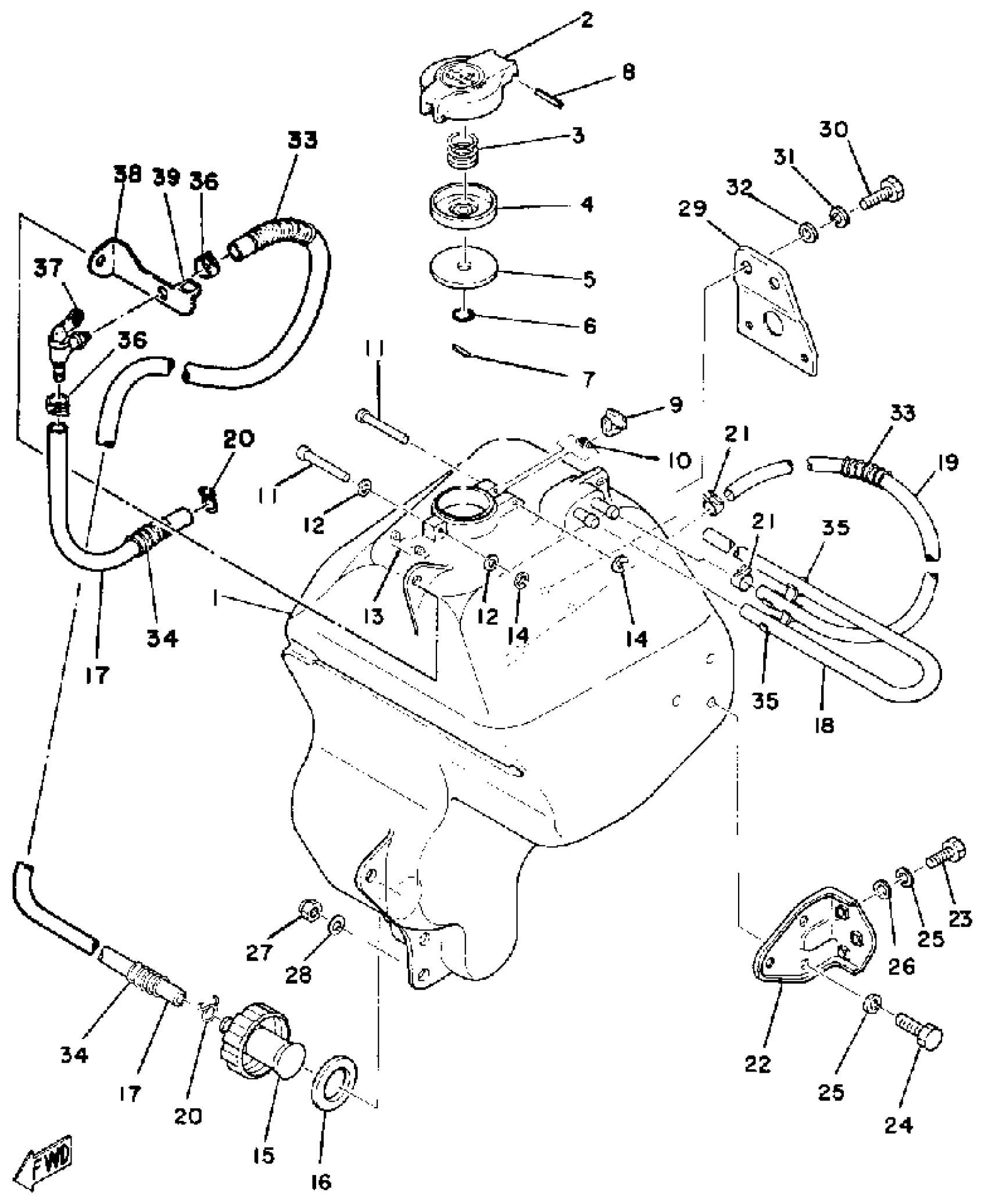

1977 Yamaha ET250A Fuel Tank Diagram
Find the part on the Fuel Tank diagram for your 1977 Yamaha ET250A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FUEL TANK
8F3-24111-00-00
2
BODY, CAP
8A5-24611-00-00
5
GASKET, CAP
256-24612-00-00
6
O-RING (256)
93210-04122-00
10
SPRING, TORSION (813-24637-00)
90508-08003-00
22
BRACKET, FUEL TNK 1
(8F3-24191-01-00)
29
BRACKET, FUEL TNK 2
(8F3-24192-00-00)
33
PROTECTOR, PIPE
8F3-24326-00-00
34
PROTECTOR, PIPE
8F3-24327-00-00
35
CLIP
(90468-15076-00)
37
FUEL COCK ASSEMBLY 1
(8F3-24500-00-00)
38
BRACKET, FUEL COCK
(8F3-24544-00-00)
39
. WASHER
810-14597-00-00
39
PIPE, JOINT
867-24461-00-00
39
INDICATOR, COCK
(8F3-24153-00-00)
39
FUEL RETURN KIT (SILVER 7)
(8G5-00000-10-00)
39
PIPE ADAPTOR ASSEMBLY
8G5-14350-00-00
39
CLAMP, HOSE
90460-09001-00
