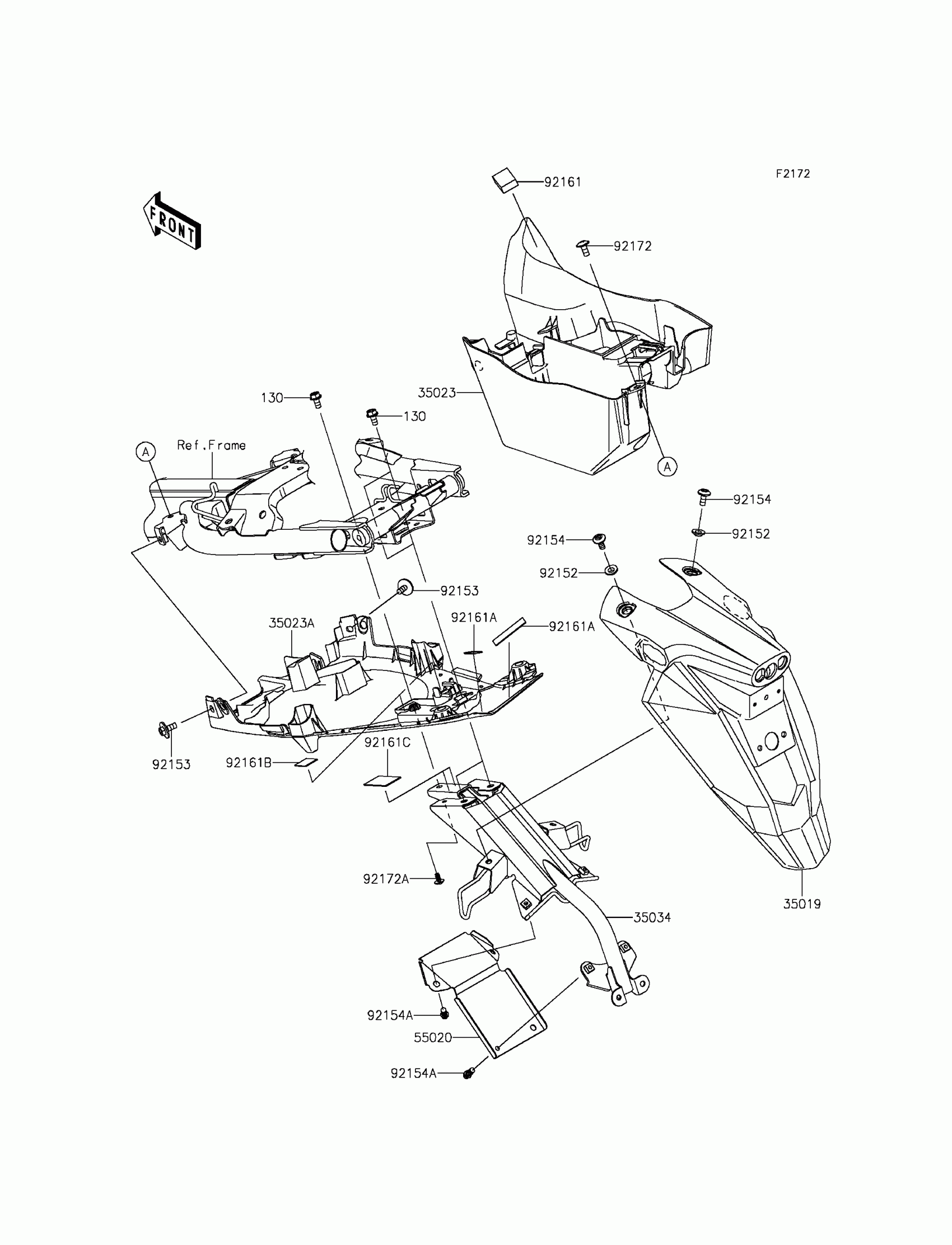

Kawasaki ER-6n Rear Fender(s) Diagram

Description

Price

11055

BRACKET,FLAP

11055-0587

$86.97

11055A

BRACKET

11055-0843

$3.58

14091

COVER,SWITCH MAINTENANCE

14091-1678

$8.49

35019

FLAP

35019-0075

$80.44

35023

FENDER-REAR,RR

35023-0142

$60.56

35023A

FENDER-REAR,FR

35023-0163

$33.43

55020

GUARD,HEAT

55020-0220

$20.46

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-1283

$1.98

92154

BOLT,SOCKET,6X18

92154-0139

$1.30

92154A

BOLT,SOCKET,5X16

92154-0182

$1.81

92161

DAMPER

92161-0773

$2.38

92200

WASHER,6.5X17X1

92200-0430

$1.04

92200A

WASHER,6.5X14X1

92200-1388

$1.76

311

NUT-HEX,6MM

311AA0600

$0.81
