2010 Kawasaki Er-6n Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2010 Kawasaki Er-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

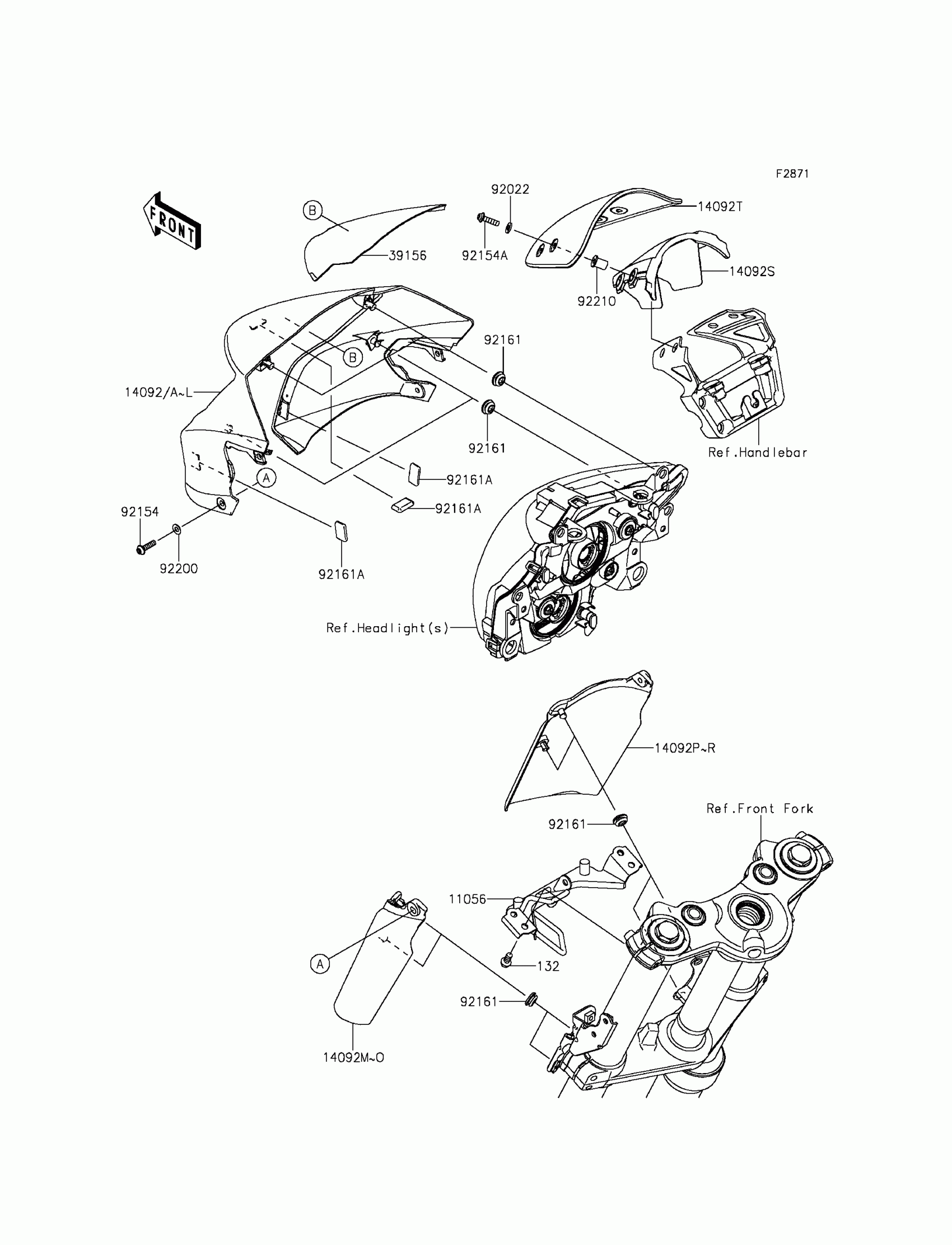

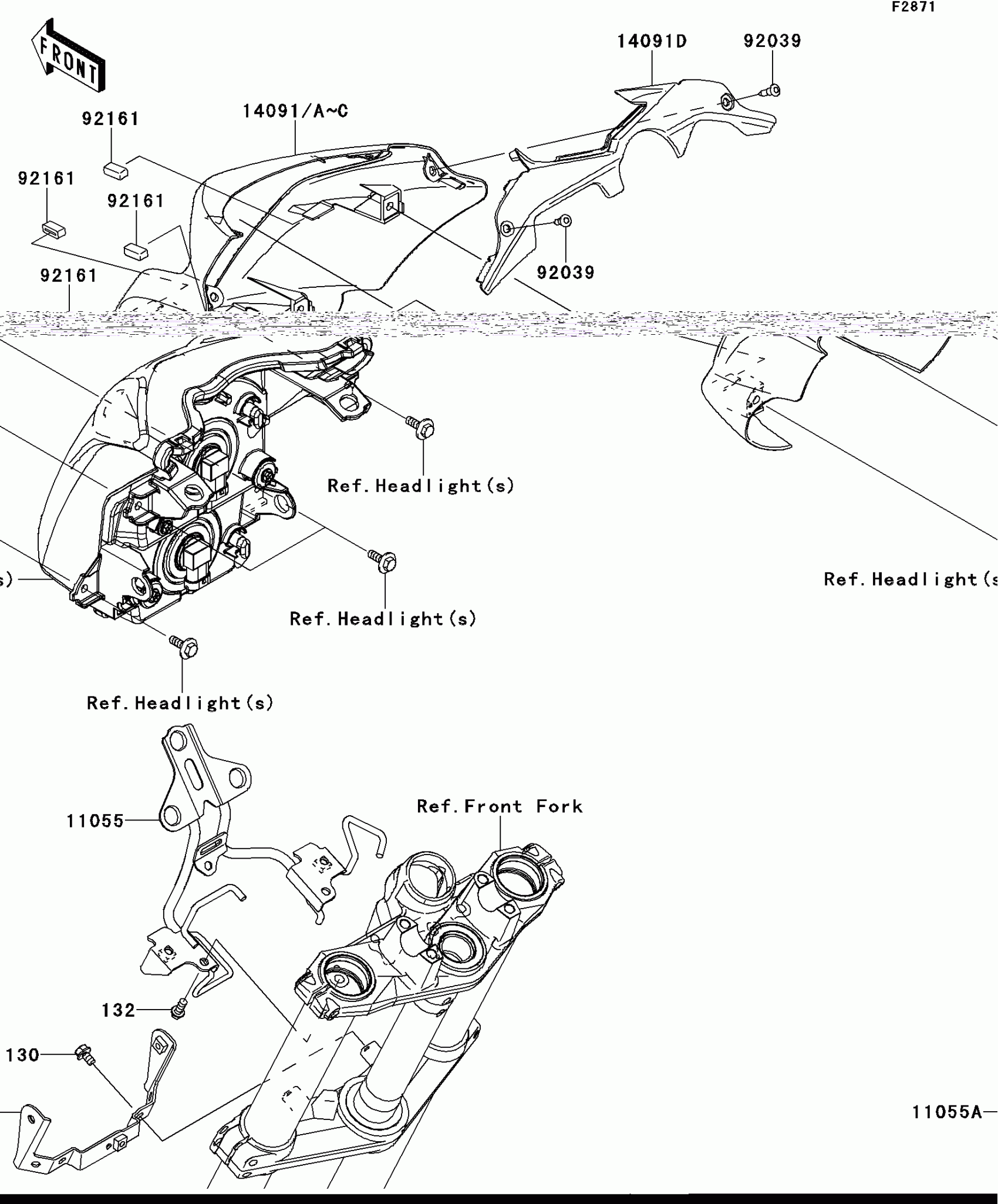

2010 Kawasaki Er-6n Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,HEAD LAMP,UPP

11055-0591

1
Out of stock

11055A

1

$14.13

In stock

14091

COVER,HEAD LAMP,EBONY

14091-1587-H8

1
Out of stock

14091B

1

$313.09

In stock

14091C

COVER,HEAD LAMP,P.B.ORANGE

14091-1587-848

1
Out of stock

14091D

1

$48.13

In stock

92039

RIVET

92039-0023

1

$2.42

In stock

92161

DAMPER

92161-0620

1

$1.85

In stock

92161A

DAMPER,T=13

92161-0792

1

$3.27

In stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$1.31

In stock
