2010 Kawasaki ER-6n Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2010 Kawasaki ER-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

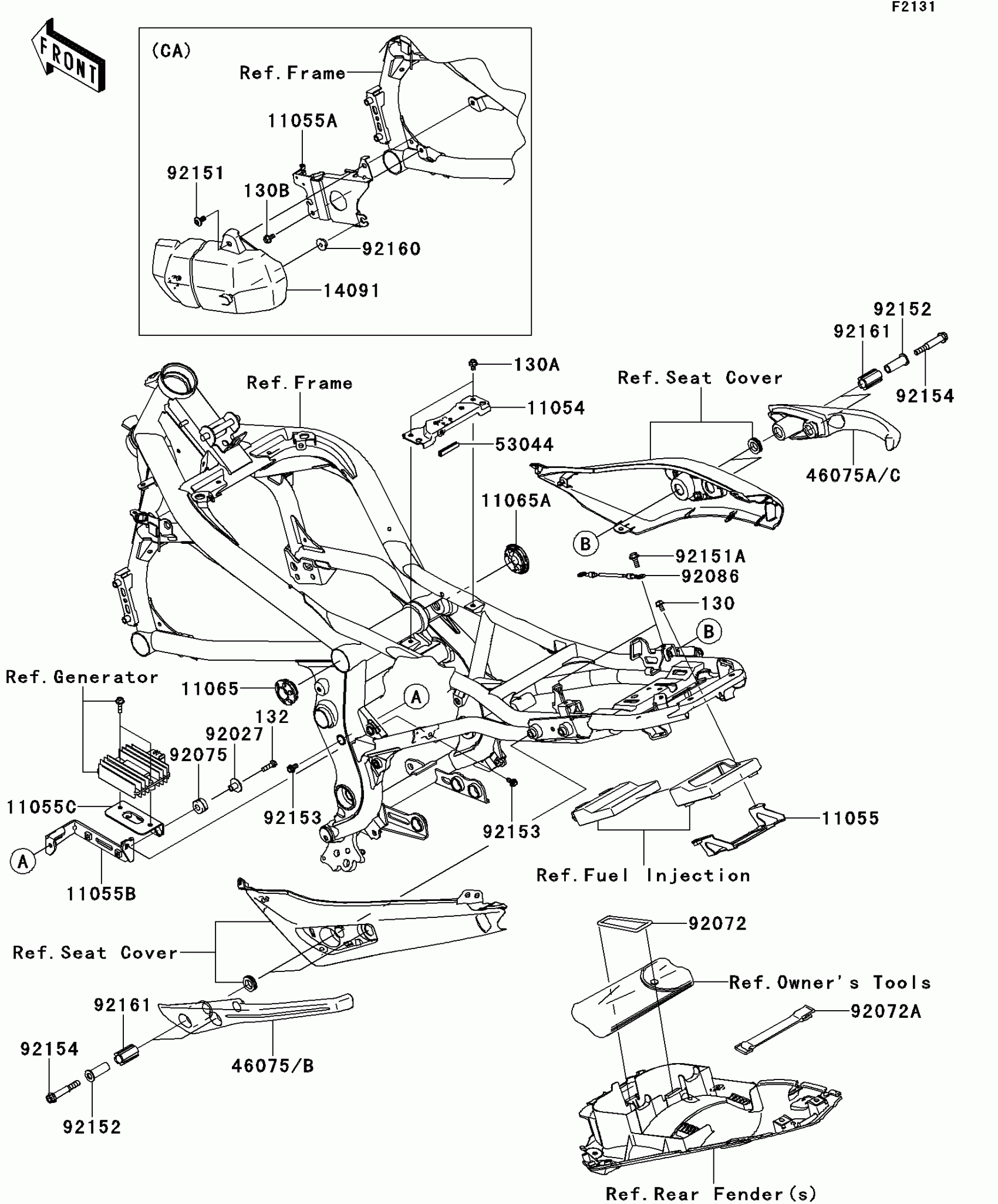

2010 Kawasaki ER-6n Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,FUEL TANK

11054-0248

1

$21.58

In stock

11055

BRACKET,ECU

11055-0584

1
Out of stock

11055A

BRACKET,CANISTER

11055-0586

1

$48.58

In stock

11055B

BRACKET,REGULATOR

11055-1131

1

$32.44

In stock

11055C

BRACKET,REGULATOR

11055-1137

1

$15.34

In stock

11065

CAP,PIVOT COVER,LH,P.SILVER

11065-0257-458

1
Out of stock

11065A

CAP,PIVOT COVER,RH,P.SILVER

11065-0264-458

1
Out of stock

14091

COVER,CANISTER

14091-1586

1
Out of stock

46075B

GRIP,TANDEM,LH

46075-0097

1

$111.67

In stock

46075C

GRIP,TANDEM,RH

46075-0098

1

$111.67

In stock

53044

TRIM,L=40

53044-1174

1

$3.85

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92072

BAND,TOOL

92072-0108

1
Out of stock

92072A

BAND,L=150

92072-1203

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92086

WIRE,L=150

92086-1075

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92151A

BOLT,FLANGED,6X13

92151-1703

1
Out of stock

92152

COLLAR

92152-0707

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1517

1
Out of stock

92154

BOLT,SOCKET,8X60

92154-0259

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0663

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130B

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

132

1

$1.93

In stock
