2010 Kawasaki Er-6n Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2010 Kawasaki Er-6n, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

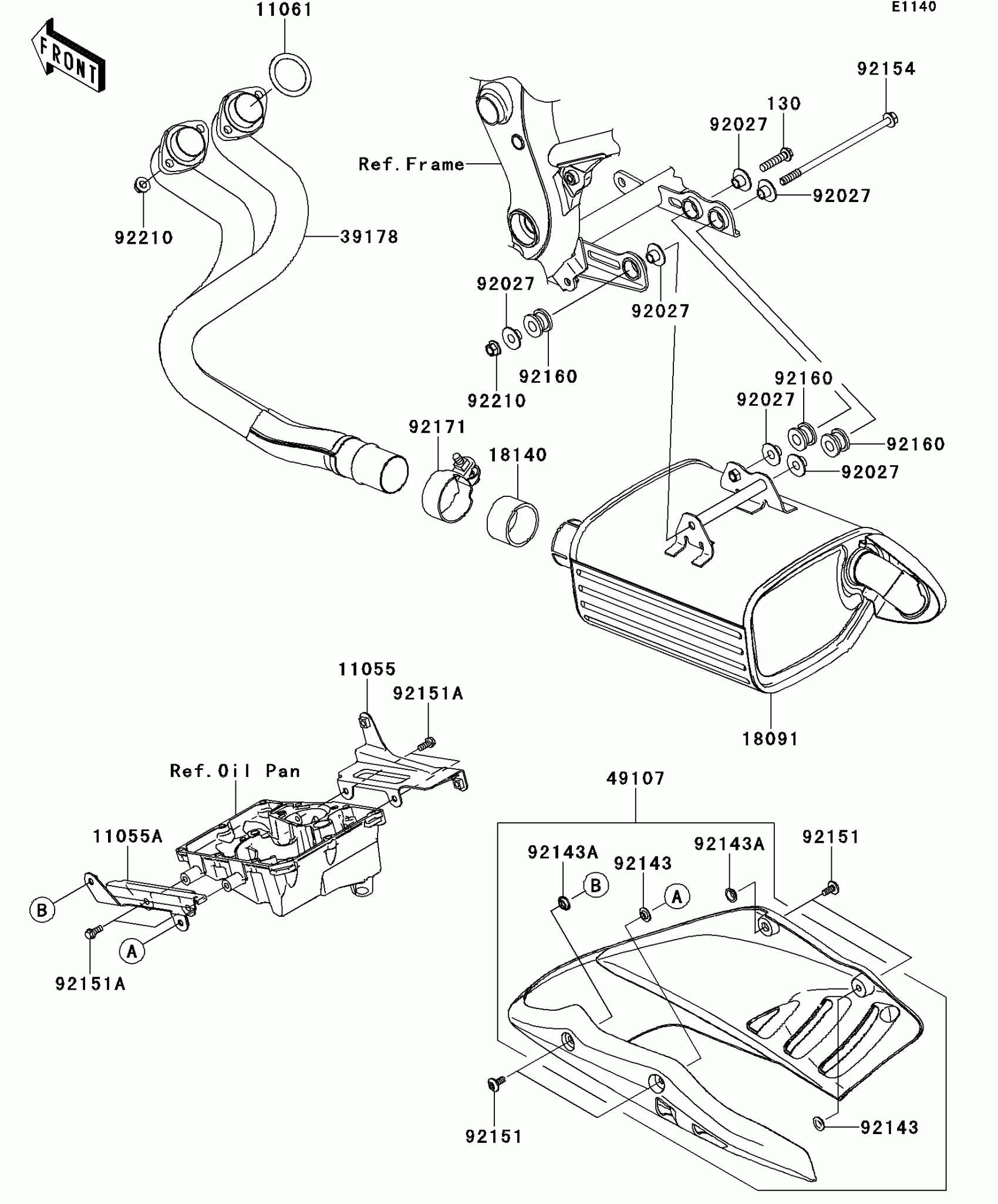

2010 Kawasaki Er-6n Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,RH

11055-1106

1

$21.58

In stock

11055A

BRACKET,LH

11055-1107

1

$18.32

In stock

11061

GASKET,EXHAUST PIPE

11061-0278

1

$8.47

In stock

18091

BODY-COMP-MUFFLER

18091-0525

1

$1,016.52

In stock

18140

GASKET-MUFFLER

18140-0002

1

$11.29

In stock

39178

1

$584.97

In stock

49107

1

$156.46

In stock

92027

1

$8.16

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92143A

COLLAR

92143-1196

1

$3.72

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92151A

BOLT,FLANGED,6X14

92151-1755

1

$2.03

In stock

92154

BOLT,FLANGED,8X165

92154-0189

1

$10.10

In stock

92160

1

$4.37

In stock

92171

CLAMP

92171-1568

1

$25.63

In stock

92210

NUT,8MM

92210-1114

1
Out of stock

130

BOLT-FLANGED,8X35

130CD0835

1

$2.37

In stock
