2008 Kawasaki Er-6n (Australian) Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

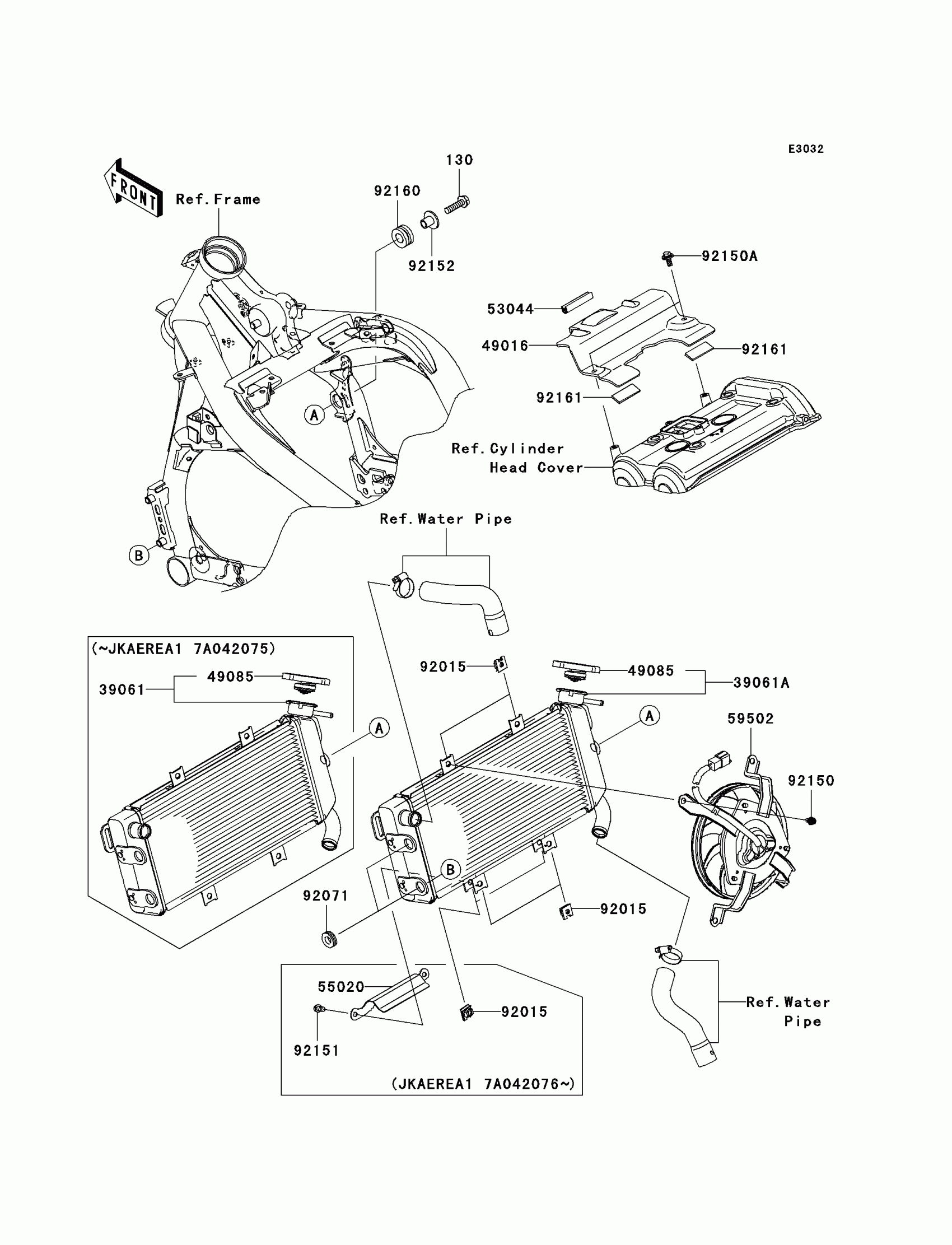

2008 Kawasaki Er-6n (Australian) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X30

130BA0830

1

$1.68

In stock

39061A

RADIATOR-ASSY

39061-0110

1
Out of stock

49016

COVER-SEAL,HOT WIND

49016-0030

1

$32.98

In stock

49085

CAP-ASSY-PRESSURE

49085-1078

1

$47.06

In stock

53044

TRIM,L=50

53044-1185

1

$4.66

In stock

55020

GUARD

55020-0343

1

$14.00

In stock

59502

FAN-ASSY

59502-0019

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92071

GROMMET

92071-1115

1

$4.34

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92150A

BOLT,FLANGED,6X14

92150-1689

1

$3.14

In stock

92151

BOLT,6X10

92151-1277

1

$1.39

In stock

92152

COLLAR

92152-0398

1
Out of stock

92160

DAMPER

92160-1007

1

$4.37

In stock

92161

DAMPER

92161-0301

1

$1.81

In stock
