2008 Kawasaki Er-6n (Australian) Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

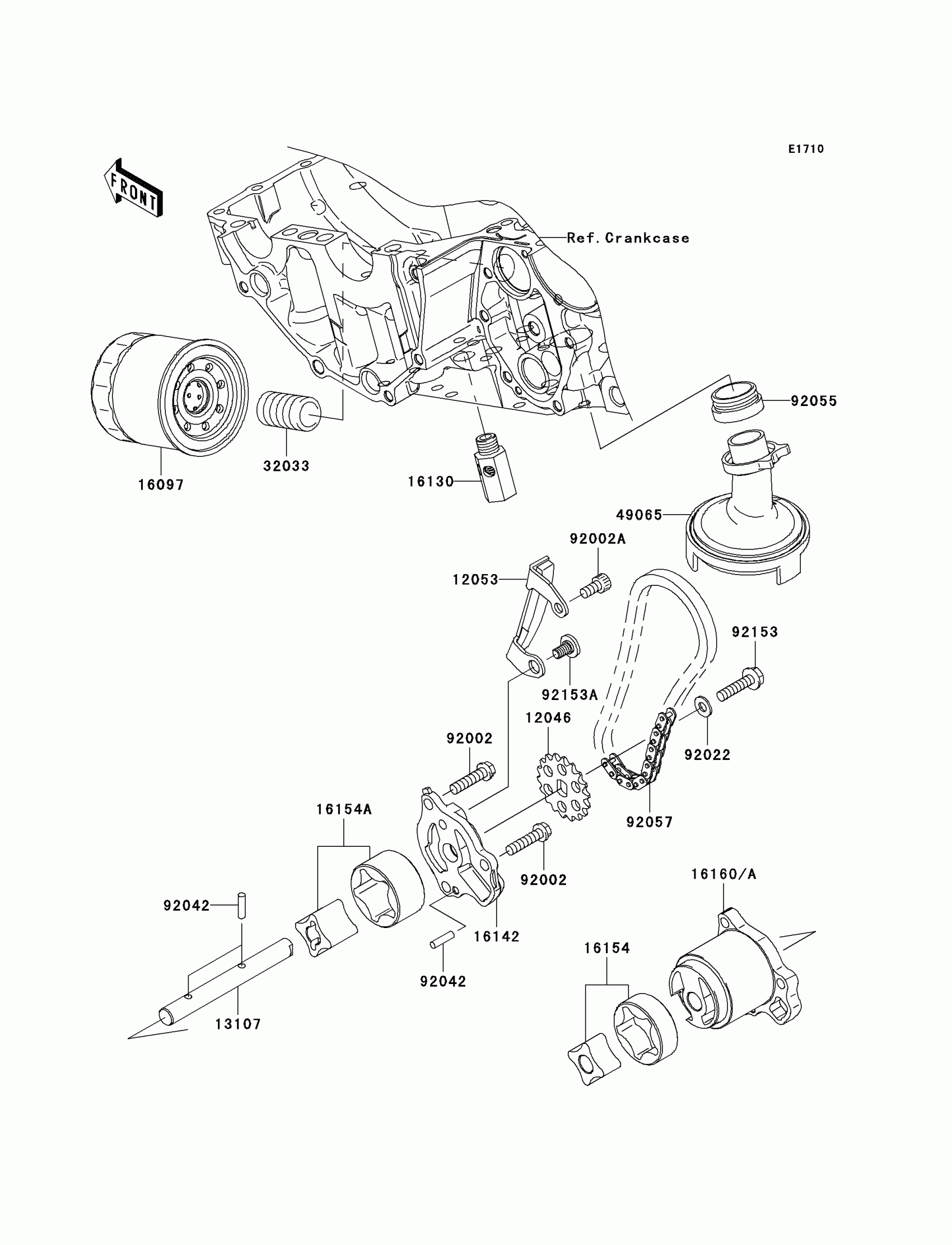

2008 Kawasaki Er-6n (Australian) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,18T,BF04M

12046-0040

1
Out of stock

12053

GUIDE-CHAIN

12053-0071

1
Out of stock

13107

SHAFT,OIL PUMP

13107-0156

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0004

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1
Out of stock

16142

COVER-PUMP

16142-0024

1
Out of stock

16154

ROTOR-PUMP,L=14

16154-0037

1
Out of stock

16154A

ROTOR-PUMP,40.56X22

16154-1115

1
Out of stock

16160A

BODY

16160-0110

1
Out of stock

32033

PIPE,OIL FILTER

32033-1535

1
Out of stock

49065

FILTER-OIL

49065-0011

1
Out of stock

92002

BOLT,6X25

92002-1344

1
Out of stock

92002A

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92022

WASHER,6X12.8X1.2

92022-1827

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92055

RING-O,OIL FILTER

92055-1354

1
Out of stock

92057

CHAIN,DID 215FD-DHA,56LE

92057-0098

1
Out of stock

92153

BOLT,FLANGED,6X25

92153-0952

1
Out of stock

92153A

BOLT,SOCKET,6X11

92153-0969

1
Out of stock
