2008 Kawasaki Er-6n (Australian) Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

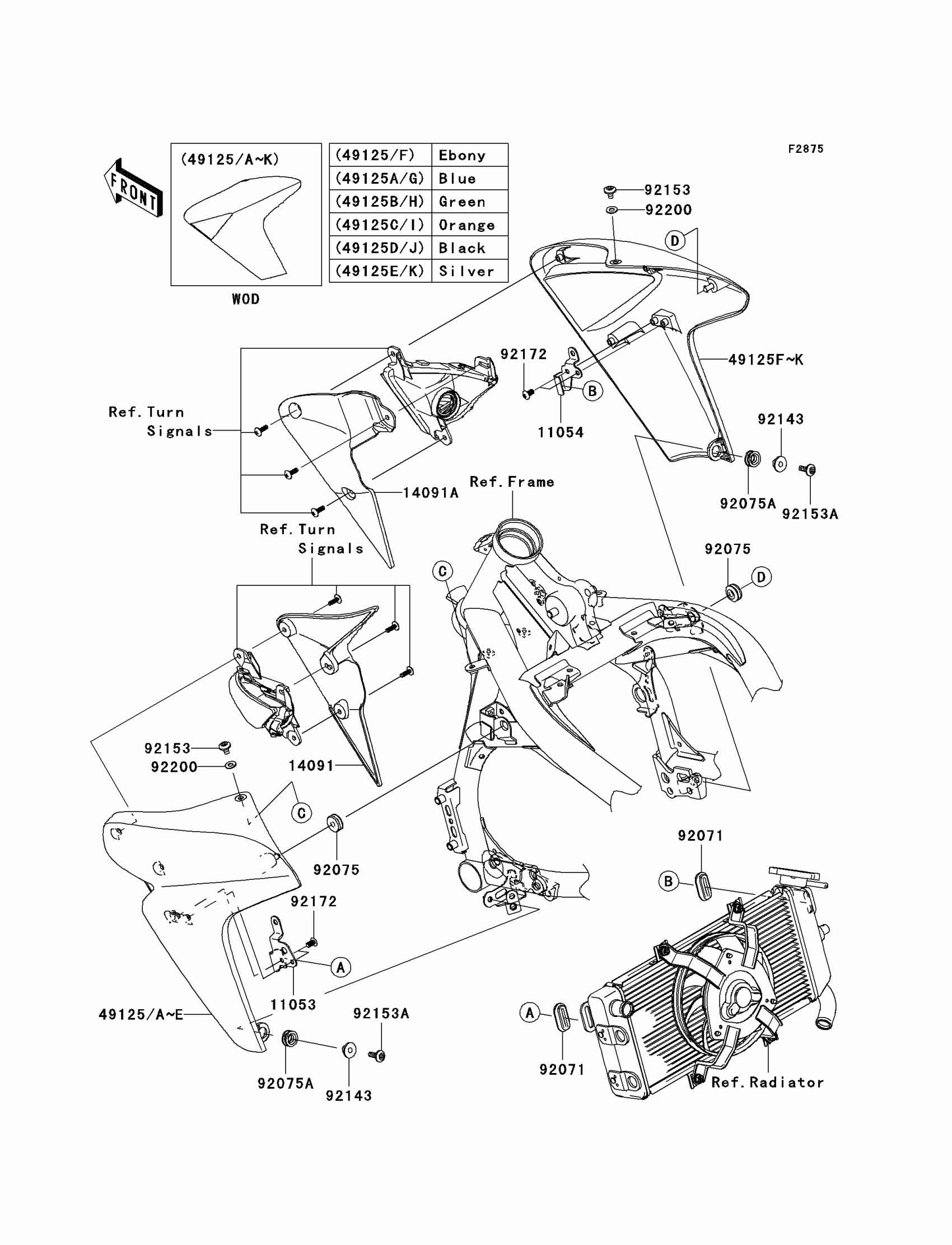

2008 Kawasaki Er-6n (Australian) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,SHROUD,LH

11053-1814

1
Out of stock

11054

BRACKET,SHROUD,RH

11054-0256

1
Out of stock

14091

COVER,SHROUD,LH

14091-0543

1
Out of stock

14091A

COVER,SHROUD,RH

14091-0544

1
Out of stock

49125A

SHROUD,LH,C.P.BLUE

49125-0018-15D

1
Out of stock

49125B

SHROUD,LH,C.L.GREEN

49125-0018-15P

1
Out of stock

49125G

SHROUD,RH,C.P.BLUE

49125-0019-15D

1
Out of stock

49125H

SHROUD,RH,C.L.GREEN

49125-0019-15P

1
Out of stock

92071

GROMMET

92071-0013

1
Out of stock

92075

DAMPER

92075-1067

1
Out of stock

92075A

DAMPER

92075-1634

1
Out of stock

92143

COLLAR

92143-1962

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-0411

1
Out of stock

92153A

BOLT,6X18

92153-0816

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0006

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock
