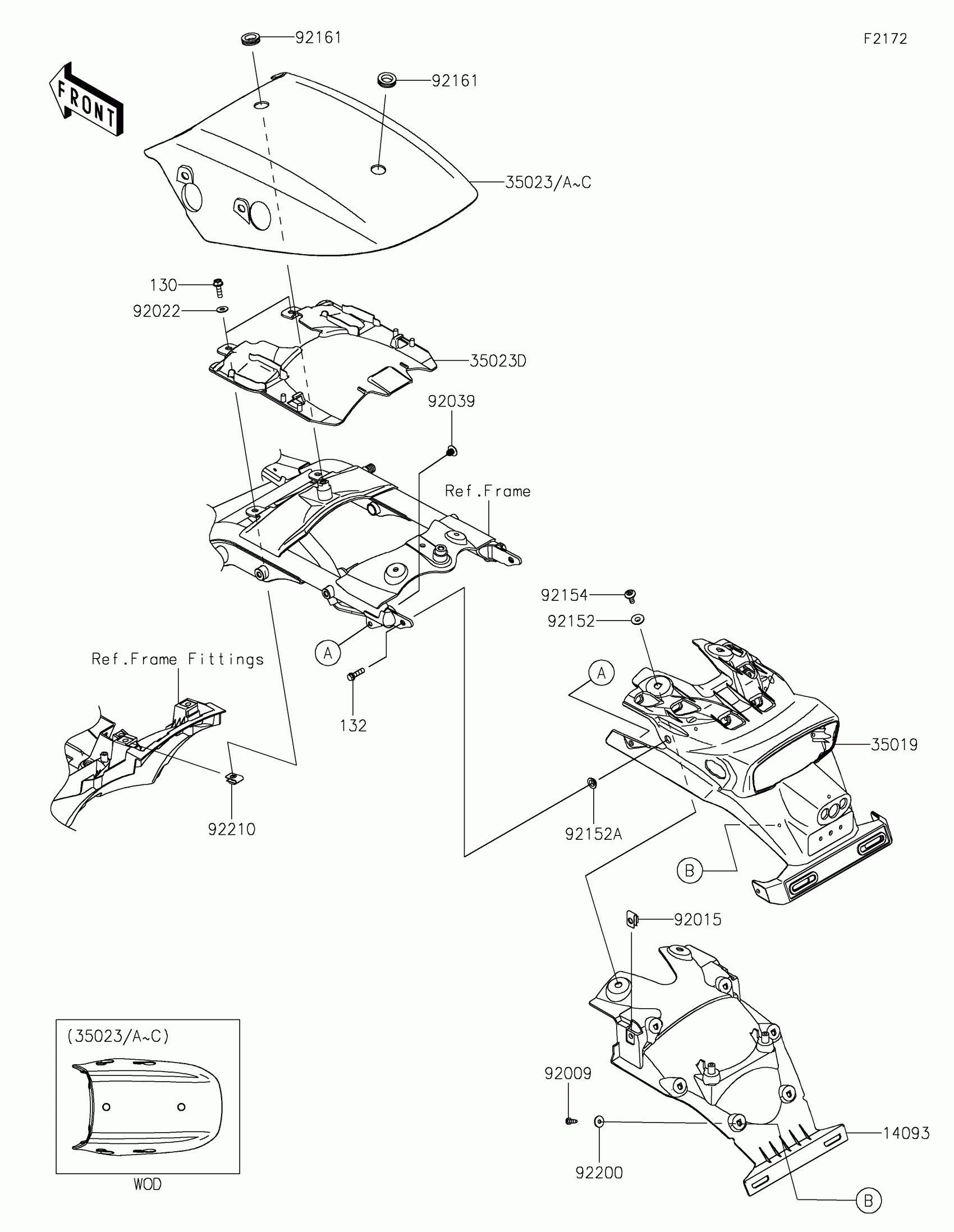

Kawasaki Eliminator Rear Fender(s) Diagram

Description

Price

14093

COVER,INNER

14093-1436

$44.95

35019

FLAP,RR FENDER

35019-0694

$66.39

35023A

FENDER-REAR,OUTER,P.S.KHAKI

35023-0490-63F

$299.73

35023C

FENDER-REAR,OUTER,M.F.S.BLACK

35023-0490-739

Unavailable

35023D

FENDER-REAR,INNER

35023-0491

$24.39

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92015

NUT,6MM

92015-1602

$5.61

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92039

RIVET

92039-0722

$1.24

92152

COLLAR

92152-0427

$5.91

92152A

COLLAR,8.8X11.2X4

92152-0909

$4.27

92154

BOLT,SOCKET,6X16

92154-3838

$1.57

92161

DAMPER

92161-0765

$3.27

92200

WASHER,5.2X16X1.2

92200-0583

$1.66

92210

NUT,6MM

92210-0891

$5.66

130

BOLT-FLANGED,6X20

130BB0620

$0.47

132

BOLT-FLANGED-SMALL,6X22

132BB0622

$1.66
