1986 Kawasaki Eliminator Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

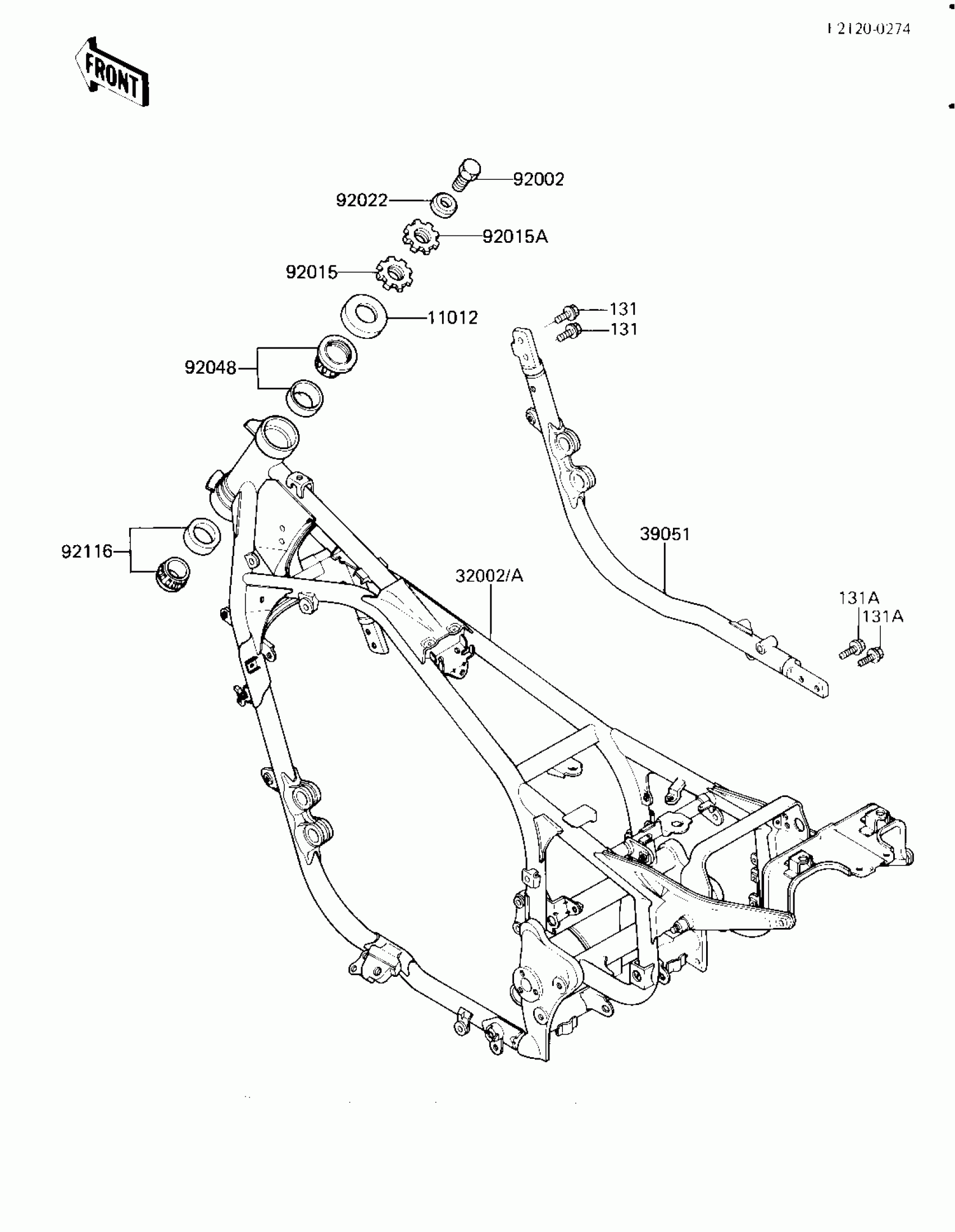

1986 Kawasaki Eliminator Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING STEM

46098-017

1

$5.37

In stock

39051

FRAME-COMP-SIDE

39051-1051

1

$251.07

In stock

92002

BOLT,14X25

92002-1611

1
Out of stock

92015

NUT,25MM,T=10

92015-1377

1

$25.61

In stock

92015A

NUT,25MM,T=6

92015-1378

1

$19.42

In stock

92022

WASHER

92200-1140

1
Out of stock

92048

RACE,ROLLER,32005JR RS

92047-017

1
Out of stock

92116

1

$33.21

In stock

131

BOLT-FLANGED

131S0820

1
Out of stock

131A

BOLT-FLANGED

131S0825

1
Out of stock
