1986 Kawasaki Eliminator Seat Diagram

← All diagrams

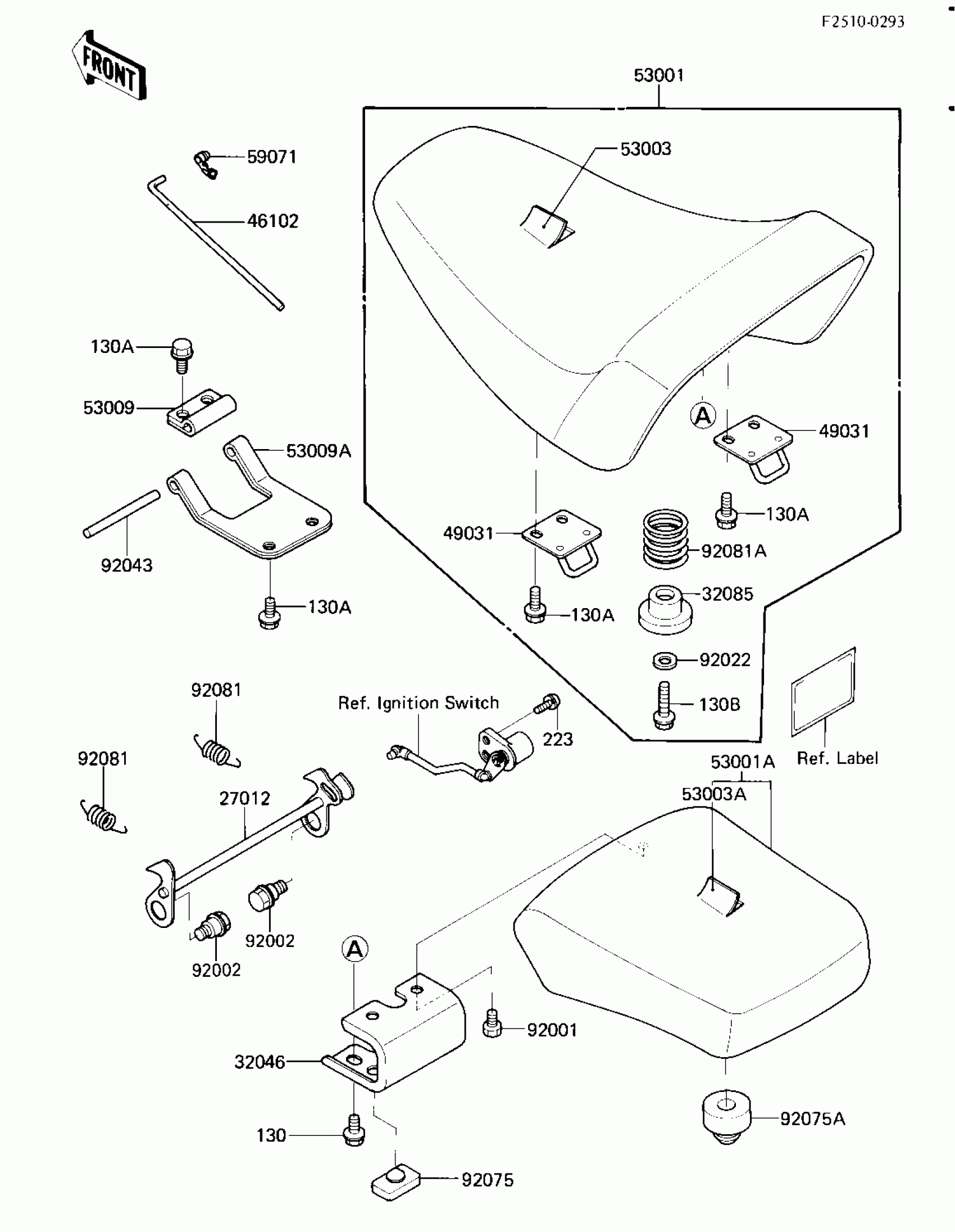

Find the part on the Seat diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27012

HOOK,SEAT LOCK

27012-1332

1

$37.07

In stock

32046

BRACKET-SEAT

32046-1236

1

$19.24

In stock

32085

STOPPER,SEAT

32085-1167

1
Out of stock

46102

ROD,SEAT STAND

46102-1150

1

$5.59

In stock

49031

LATCH,SEAT

49031-1051

1

$6.31

In stock

53001

SEAT-ASSY,FR

53001-1426

1

$585.41

In stock

53001A

SEAT-ASSY,RR

53001-1427

1

$176.60

In stock

53003

LEATHER,SEAT

53003-1139

1
Out of stock

53003A

LEATHER,SEAT

53003-1140

1

$102.25

In stock

53009

HINGE,SEAT

53009-1057

1

$10.85

In stock

53009A

HINGE,SEAT

53009-1058

1

$35.42

In stock

59071

JOINT,SEAT STAND

59071-1104

1

$5.41

In stock

92001

BOLT,6X10

92001-137

1

$5.66

In stock

92002

BOLT,*

92002-1596

1
Out of stock

92022

WASHER,6.5X16X2

92022-1565

1

$3.12

In stock

92043

PIN,6X68

92043-1289

1

$4.44

In stock

92075

DAMPER,SEAT

92075-1153

1

$4.16

In stock

92075A

DAMPER

92075-1737

1

$6.82

In stock

92081

SPRING,HOOK RETURN

92081-1580

1

$6.17

In stock

92081A

SPRING,SEAT

92081-1664

1
Out of stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT

130B0612

1
Out of stock

130B

BOLT-FLANGED,6X25

130B0625

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0510

1
Out of stock
