2025 Kawasaki Eliminator ABS Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

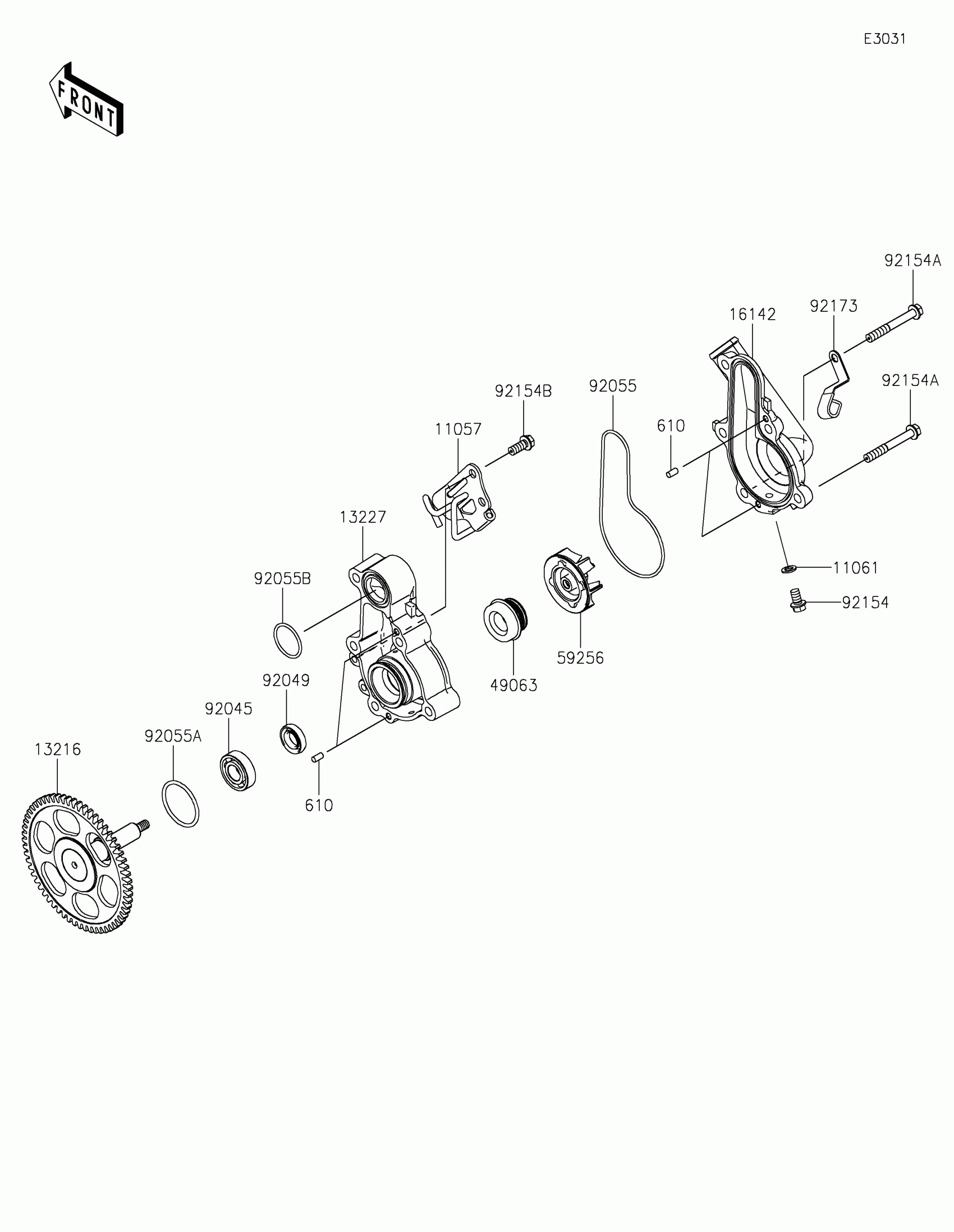

2025 Kawasaki Eliminator ABS Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,OXYGEN SENSOR

11057-1881

1
Out of stock

11061

GASKET,DRAIN

11061-0875

1
Out of stock

13216

GEAR-COMP,WATER PUMP,60T

13216-0920

1
Out of stock

13227

HOUSING

13227-0040

1
Out of stock

16142

COVER-PUMP,WATER

16142-0757

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-0554

1
Out of stock

92045

BEARING-BALL

92045-0067

1
Out of stock

92049

SEAL-OIL,12X22X5

92049-0783

1
Out of stock

92055

RING-O

92055-0889

1
Out of stock

92055A

RING-O,31.20X2.4

92055-0896

1
Out of stock

92055B

RING-O,23.3X1.9

92055-1555

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-2344

1
Out of stock

92154A

BOLT,FLANGED,6X45

92154-2789

1
Out of stock

92154B

BOLT,FLANGED,6X14

92154-2838

1
Out of stock

92173

CLAMP

92173-1935

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock
