2025 Kawasaki Eliminator ABS Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

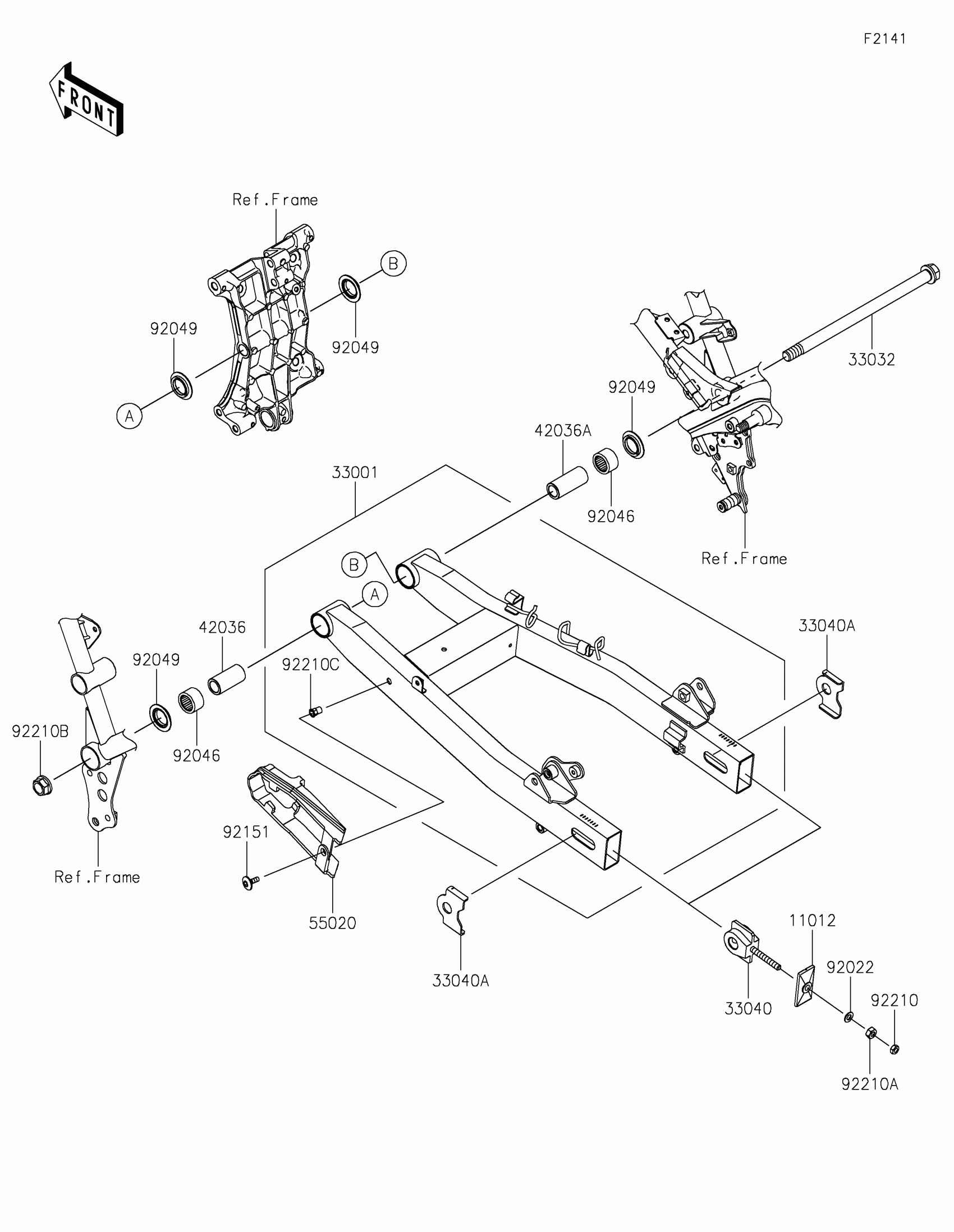

2025 Kawasaki Eliminator ABS Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

1
Out of stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0751-18R

1
Out of stock

33032

SHAFT-SWING ARM,17X285

33032-0056

1
Out of stock

33040

ADJUSTER-CHAIN

33040-0089

1
Out of stock

33040A

ADJUSTER-CHAIN

33040-0109

1
Out of stock

42036

SLEEVE

42036-0805

1
Out of stock

42036A

SLEEVE

42036-0806

1
Out of stock

55020

GUARD,CHAIN

55020-2199

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92046

BEARING-NEEDLE,BM2520

92046-1228

1
Out of stock

92049

SEAL-OIL,MF025N1

92049-1426

1
Out of stock

92151

BOLT,SOCKET,6X18

92151-1149

1
Out of stock

92210

NUT,8MM,5X12

92210-1588

1
Out of stock

92210A

NUT,8MM,6.5X14

92210-1589

1
Out of stock

92210B

NUT,16MM

92210-1590

1
Out of stock

92210C

NUT,POP,6MM,L=15

92210-1897

1
Out of stock
