2025 Kawasaki Eliminator ABS Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

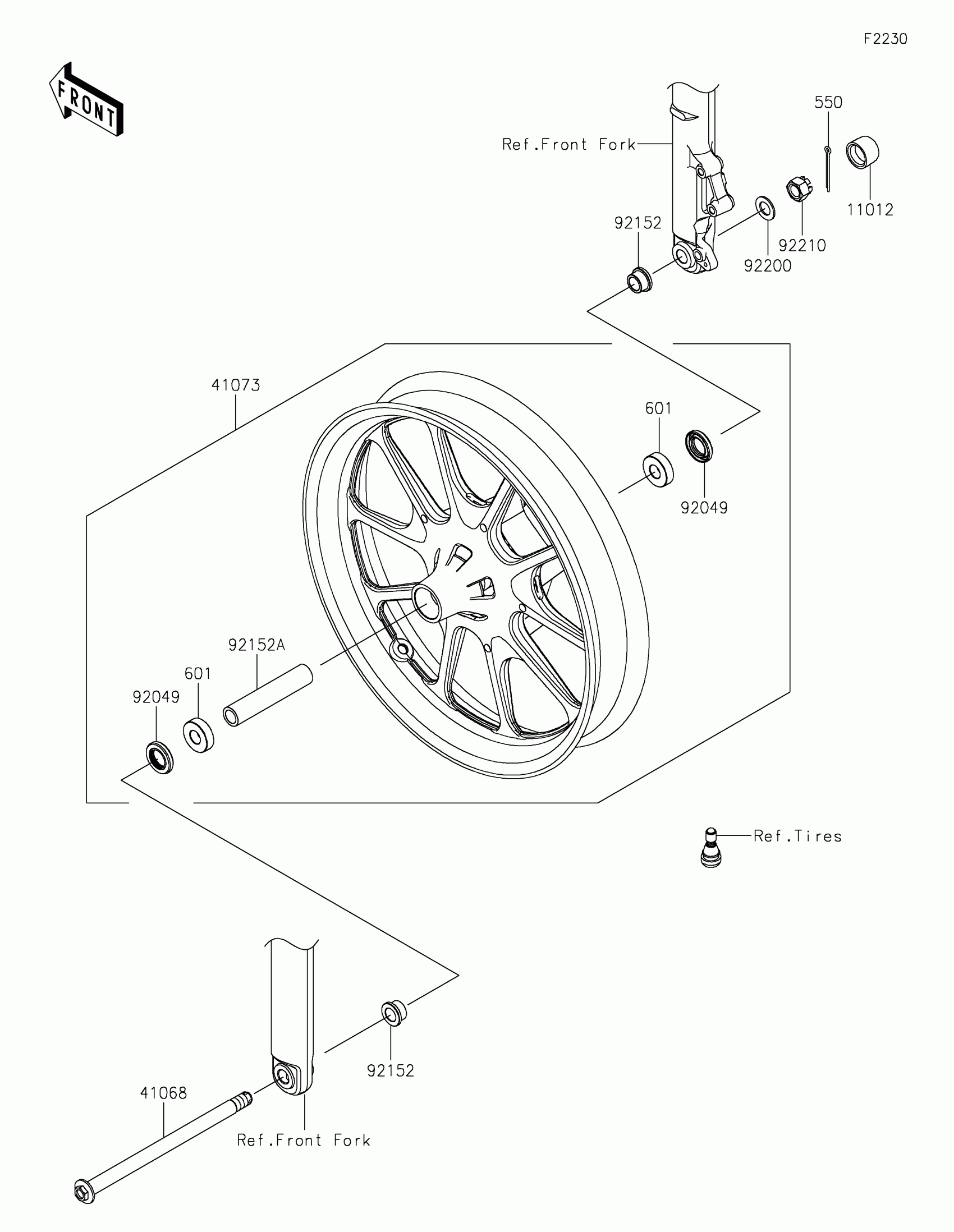

2025 Kawasaki Eliminator ABS Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,AXLE NUT

11012-1592

1
Out of stock

41068

AXLE,FR

41068-0662

1
Out of stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0839-QT

1
Out of stock

92049

SEAL-OIL,23X40X7

92049-0801

1
Out of stock

92152

COLLAR,17X30X15.5

92152-2386

1
Out of stock

92152A

COLLAR,17.2X25X125

92152-2935

1
Out of stock

92200

WASHER,17.3X30X2

92200-1916

1
Out of stock

92210

NUT,CASTLE,16X19

92210-1585

1
Out of stock

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock
