2025 Kawasaki Eliminator ABS Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

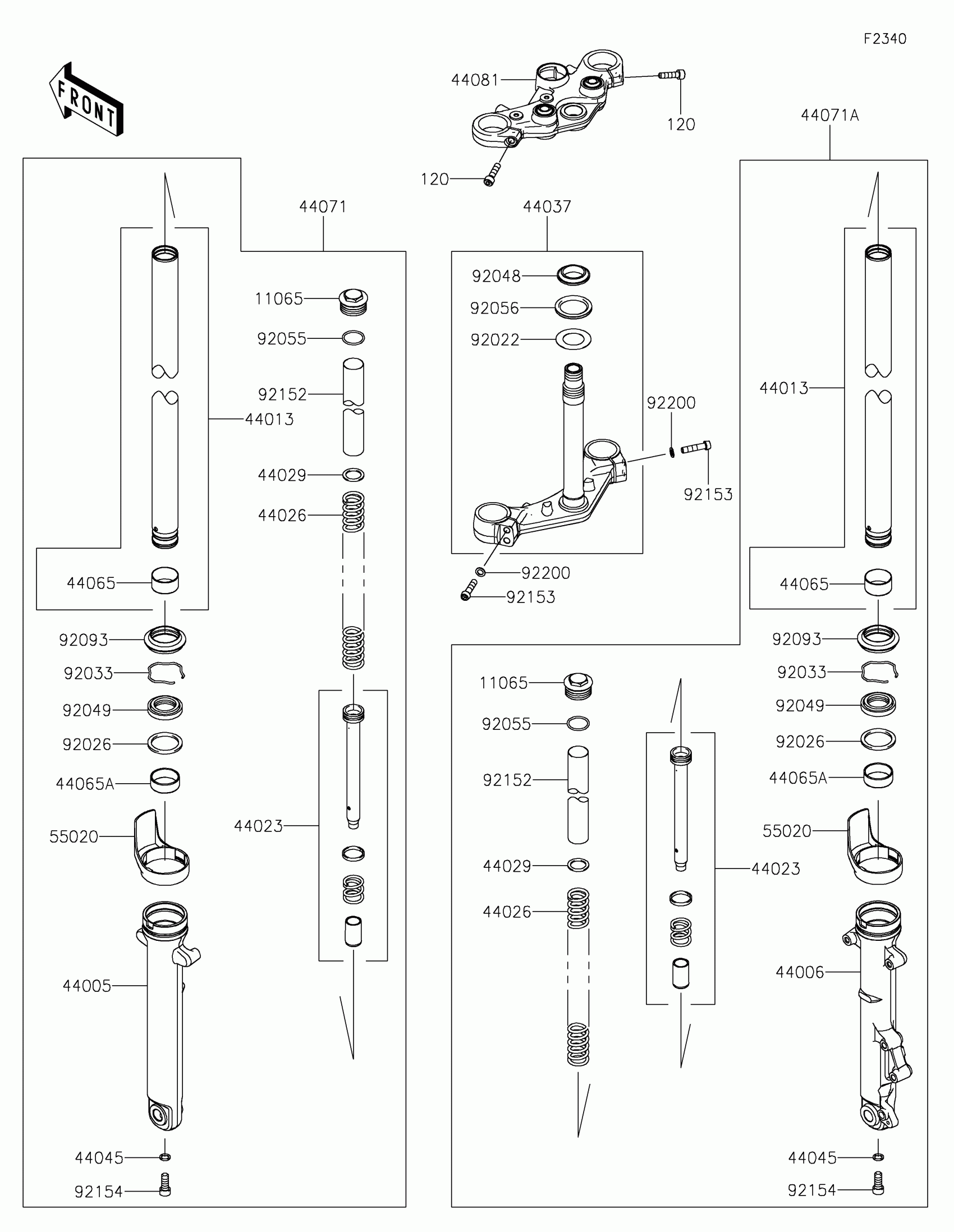

2025 Kawasaki Eliminator ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-1286

1
Out of stock

44005

PIPE-LEFT FORK OUTER

44005-0129

1
Out of stock

44006

PIPE-RIGHT FORK OUTER

44006-0132

1
Out of stock

44013

PIPE-FORK INNER

44013-0404

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0194

1
Out of stock

44026

SPRING-FRONT FORK

44026-0297

1
Out of stock

44029

SEAT-FORK SPRING

44029-1131

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0216

1
Out of stock

44045

GASKET,FORK CYLINDER BOLT

44045-051

1
Out of stock

44065

BUSHING-FRONT FORK

44065-0076

1
Out of stock

44065A

BUSHING-FRONT FORK

44065-0077

1
Out of stock

44071

DAMPER-ASSY,FORK,LH,F.S.BLACK

44071-1585-18R

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH,F.S.BLACK

44071-1586-18R

1
Out of stock

44081

HOLDER-ASSY-FORK UPPER

44081-0131

1
Out of stock

55020

GUARD,FORK

55020-0872

1

$9.25

In stock

92022

WASHER,30.5X50X0.6

92022-231

1
Out of stock

92026

SPACER,FORK OUTER

92026-1276

1
Out of stock

92033

RING-SNAP

92033-1222

1
Out of stock

92048

RACE,STEERING STEM BEARING

92048-0048

1
Out of stock

92049

SEAL-OIL

92049-0807

1
Out of stock

92055

RING-O,FORK TOP

92055-1420

1
Out of stock

92056

SEAL-OIL,STEERING STEM

92056-003

1
Out of stock

92093

SEAL,DUST

92093-0717

1
Out of stock

92152

COLLAR

92152-2987

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92154

BOLT

92154-2551

1
Out of stock

92200

WASHER,8.5X14X1.2

92200-2712

1
Out of stock

120

BOLT-SOCKET,8X30

120CC0830

1
Out of stock
