2025 Kawasaki Eliminator ABS Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2025 Kawasaki Eliminator ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

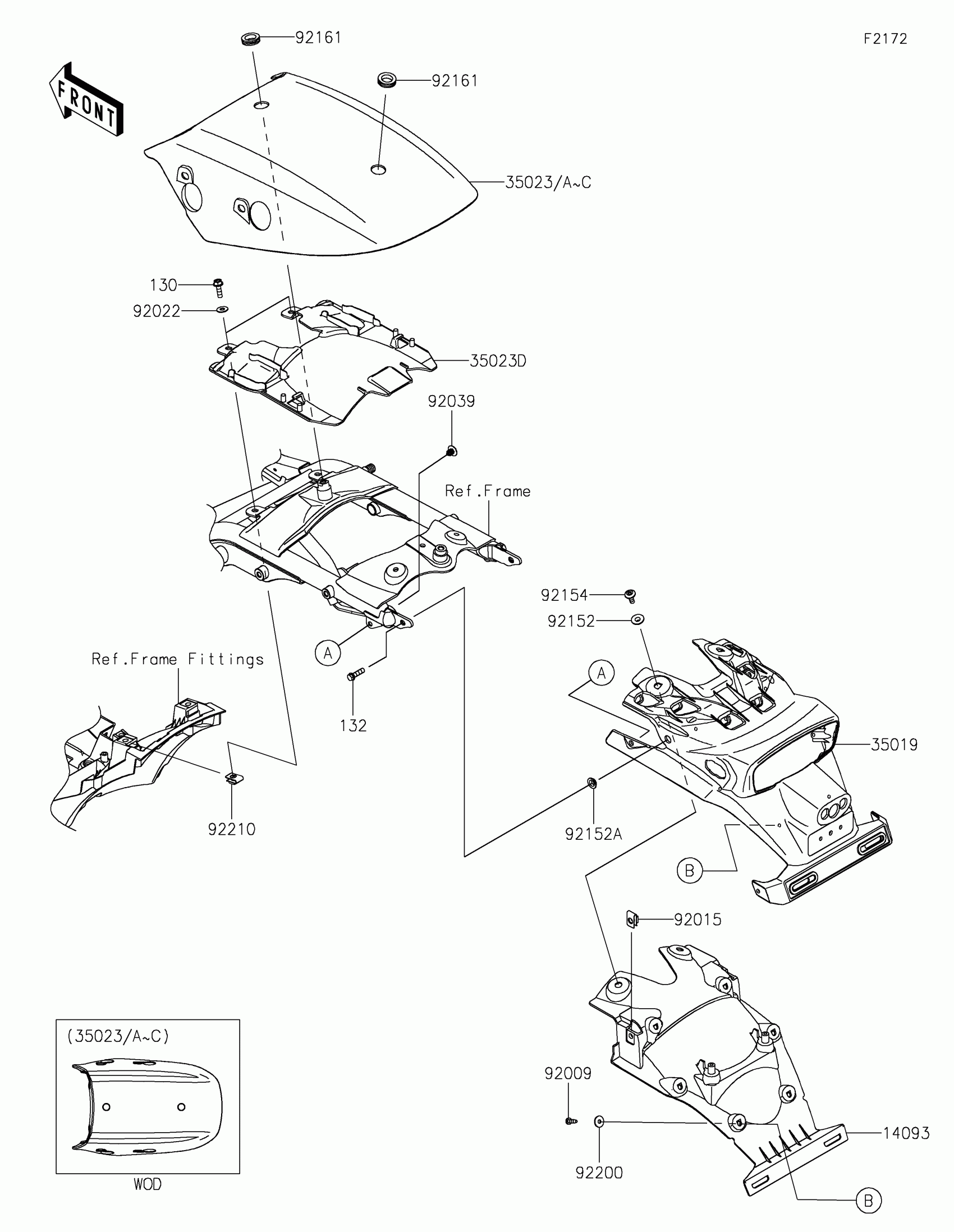

2025 Kawasaki Eliminator ABS Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,INNER

14093-1436

1

$44.95

In stock

35019

FLAP,RR FENDER

35019-0694

1

$66.39

In stock

35023

1

$299.73

In stock

35023A

1

$299.73

In stock

35023B

1

$299.73

In stock

35023C

1

$299.73

In stock

35023D

FENDER-REAR,INNER

35023-0491

1

$24.39

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92022

WASHER,6.5X16X1.0

92022-1093

1

$1.73

In stock

92039

RIVET

92039-0722

1

$1.44

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92152A

COLLAR,8.8X11.2X4

92152-0909

1

$4.47

In stock

92154

BOLT,SOCKET,6X16

92154-3838

1

$1.81

In stock

92161

DAMPER

92161-0765

1

$3.27

In stock

92200

WASHER,5.2X16X1.2

92200-0583

1
Out of stock

92210

NUT,6MM

92210-0891

1
Out of stock

130

BOLT-FLANGED,6X20

130BB0620

1

$0.50

In stock

132

1

$1.93

In stock
